Press the System softkey and turn the rotary control to select the [Utility]
menu. Press the
∨
arrow keys to choose Display submenu. Press the
＜
/
＞
arrow keys or turn the rotary control to set the display mode to Curve. Press
the
∨
arrow keys to choose CurveType submenu, press the
＜
/
＞
arrow
keys or turn the rotary control to set the curve type to Volt.
2nd Method:
In system main interface, you can also press the OK key or press the rotary
control to select the
Curve display mode. Press the
∧
/
∨
arrow keys to select the Volt curve type.

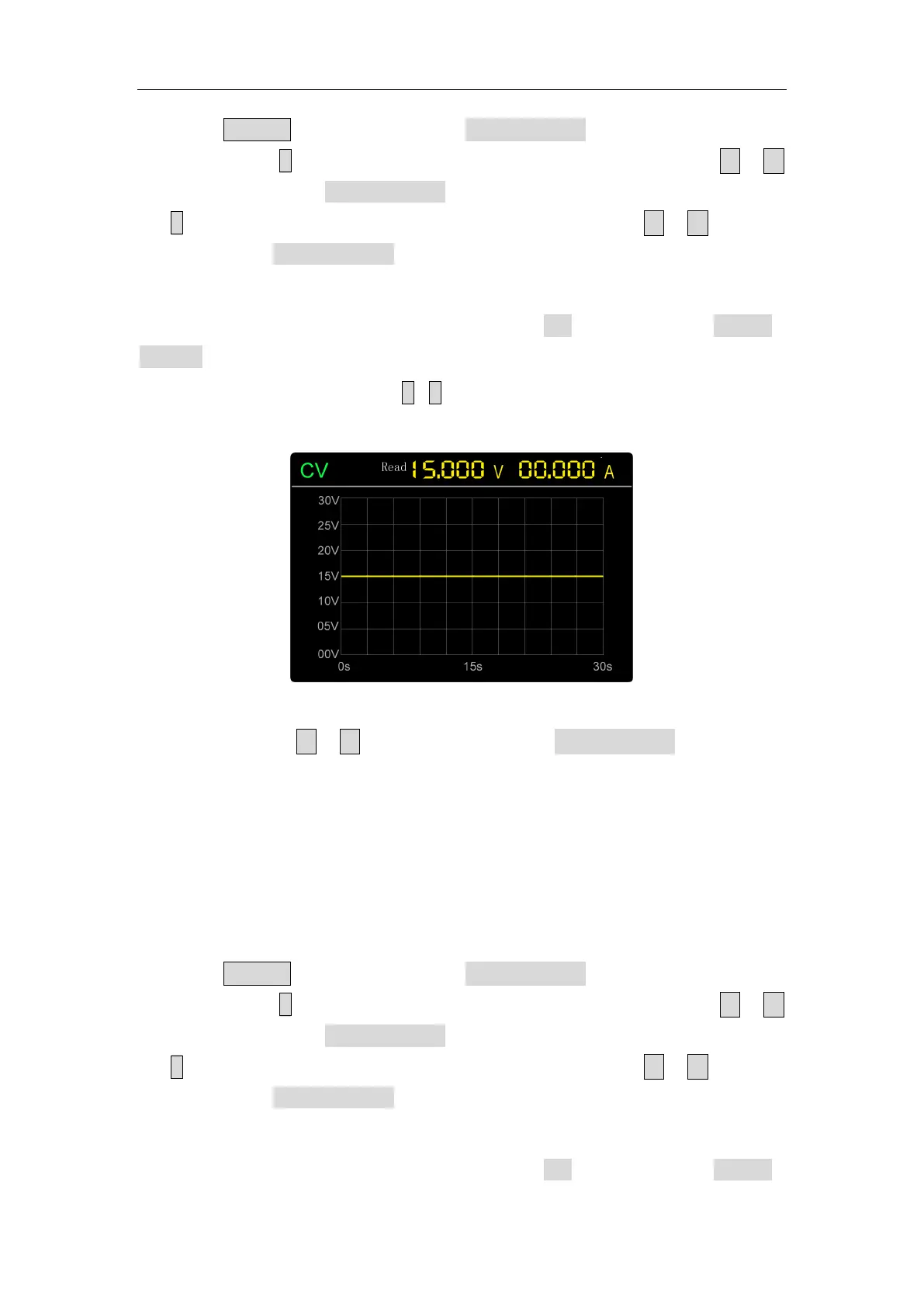

The display mode of Volt curve is as below:
Note: In Volt curve display mode, you can still set the value of voltage or
current. Press the
＜
/
＞
arrow keys or turn the rotary control to enter
editing mode (edit voltage first). If the value is not changed, editing mode will
be exited.
2) Current Curve
Two methods to set the curve type to current curve.
1st Method:
Press the System softkey and turn the rotary control to select the [Utility]
menu. Press the
∨
arrow keys to choose Display submenu. Press the
＜
/
＞
arrow keys or turn the rotary control to set the display mode to Curve. Press
the
∨
arrow keys to choose CurveType submenu, press the
＜
/
＞
arrow
keys or turn the rotary control to set the curve type to Curr.
2nd Method:
In system main interface, you can also press the OK key or press the rotary
