multicomp pro MP710086 User Manual

User Manual
3
2. Panel and Interface
2.1.1 Front Panel

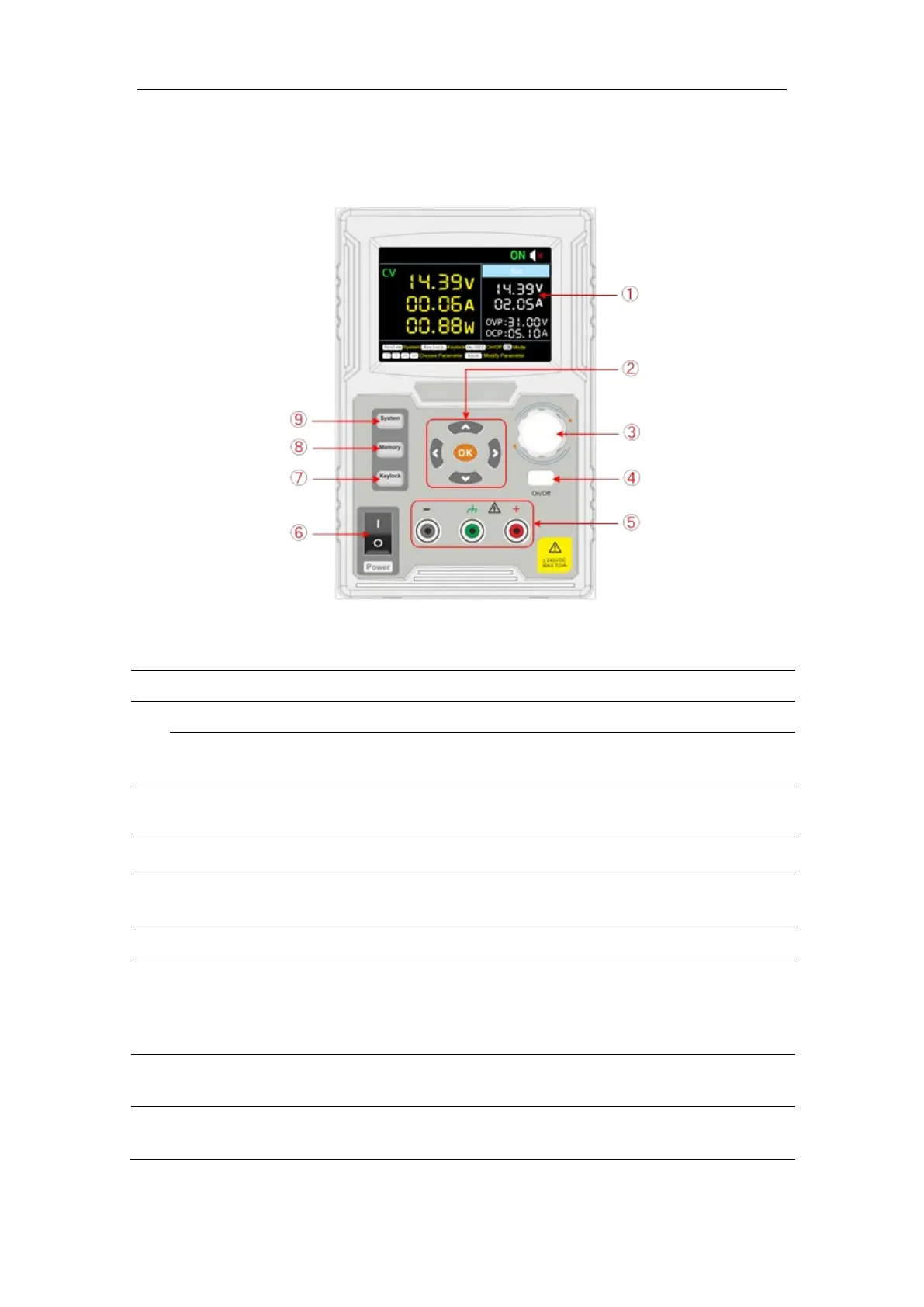

Figure 3-1 Front Panel Overview
①
Display Area
Display user interface.
②
Direction Key
Select menu; select parameters; Edit the cursor.
OK Key
1) Enter the menu or confirm the entered parameters.
2) Switch the display mode between Number & Curve.
③
Rotary control
Select the main menu or change the value, function
equals to the confirmation key.
④
On/Off Key
Turn on/off the channel.
⑤
Channel Output
Terminal
Output access of channel.
⑥
Power Button
Turn on/off the instrument.
⑦
Keylock Key
Long press this button for more than 5 seconds to lock
the panel button. Pressing any other button while
locked does not work. Long press this button for more
than 5 seconds to unlock.
⑧
Memory Key
5 sets of channel parameters can be stored for quick
output.
⑨
System Key
System settings, interface settings, system
information.
