multicomp pro MP730889 - User Interface

Multicomp-pro
9
Ite
m
Name
Description
1
Communication int
erface
connected to the computer via USB Device.
2
Line Fuse
The fuse rating is 250 V, F1AL. To replace the fuse, see page
39, Appendix C: Line Fuse Replacement.
3
AC Mains Input
AC mains input connector.
User Interface

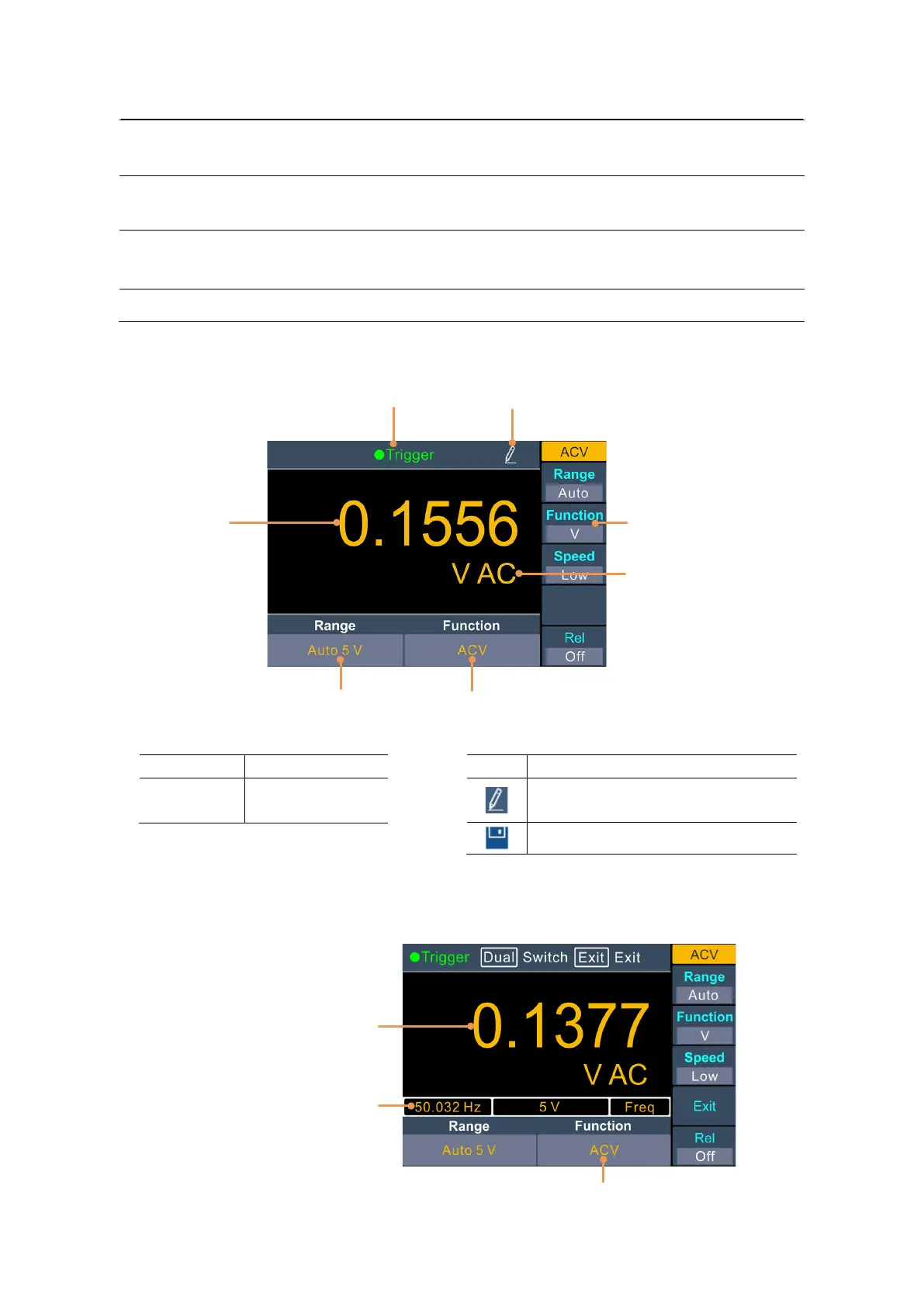

Figure 2-3 User interface (Single display)
Trigger Mode
Reading
Range
Function
Operation Menus
Unit
Status Icon
Secondary function
Primary function reading
Primary function
Trigger Mode
Status Icon
Display
Description
Trigger Auto trigger
Icon
Description
Auto record function is running
Manual record
