Multiplex ALBI 4 Series - Fitting Extension Feet and Unit Dimensions

11
Section 3
Fitting extension feet – requirement for NSF markets

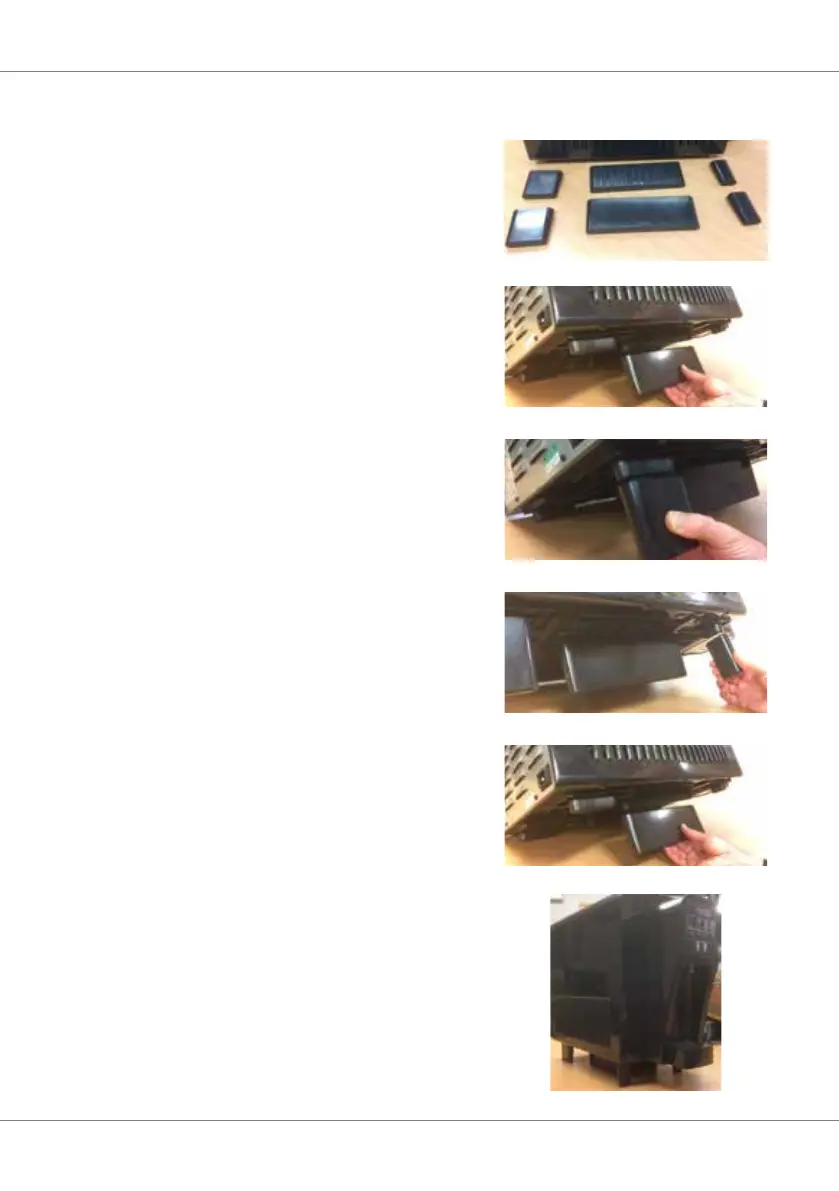

Extension feet parts:
2 x Rear foot - PI016708
2 x Front foot - PI016709
2 x Centre foot - PI016710
1. Get an assistant to tilt the unit
 Fittherstextensionfoot.
2. Fit the second foot
3. Fit the third foot
4. Now tilt the unit over in the other direction.
Fit the remaining 3 feet on the other
side of the unit.
5. Finally lower the unit down onto its feet
