Multiplex ALBI 4 Series User Manual

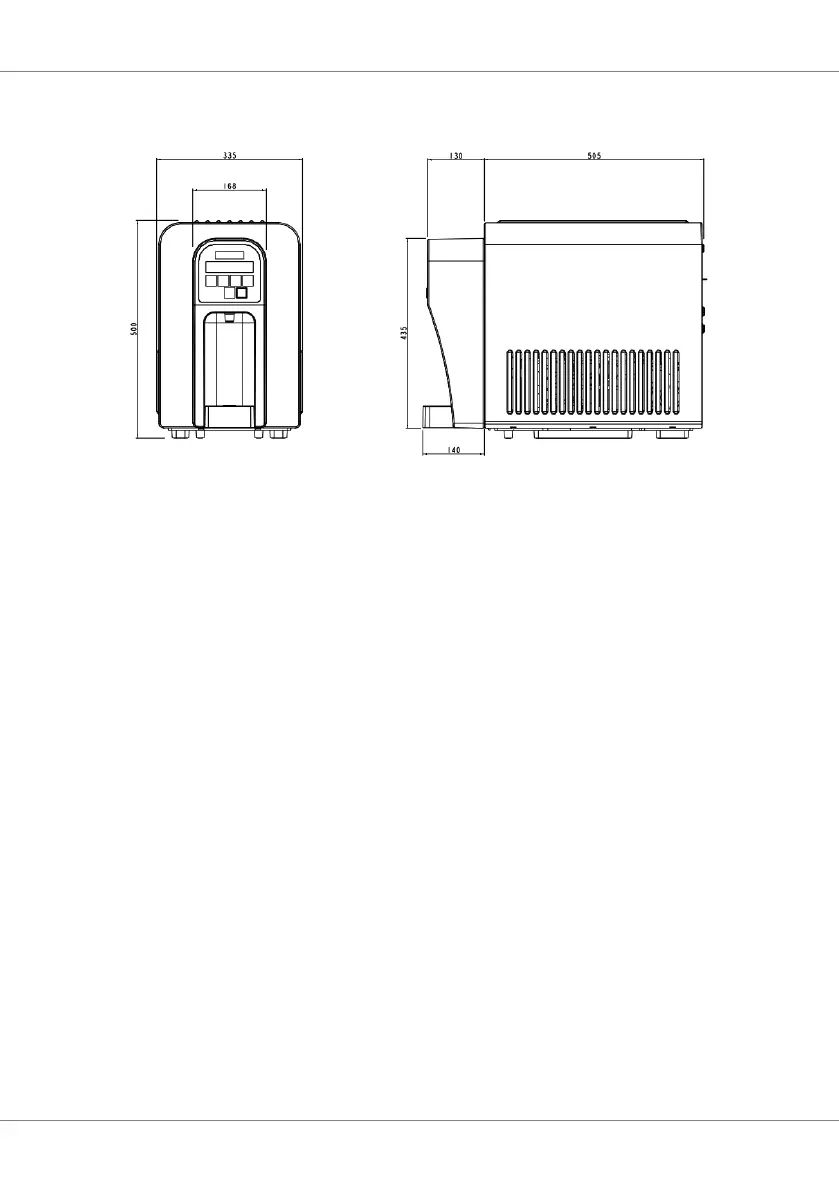

Unit dimensions
At the rear of the unit, all of the connections are labelled. Connect the above utilities as
follows to the appropriate John Guest 3\8” connectors on the unit:-
1. Connect a 3/8” OD hose suitable for use with John Guest connections to the
John Guest connector labelled “WATER” on the rear of the unit. The mains water
pressure should be MIN 0.138Mpa (20psi) \ MAX 0.345Mpa (50psi). Do not turn
the water supply on yet.
2. Connect the CO2 supply to the connector labelled Co2. The Co2 pressure
should be MIN 0.517Mpa (75psi) \ MAX 0.552Mpa (80psi. Do not turn the CO2
supply on yet.
3. Connect the bag in box syrup lines to the connectors labelled syrup 1 - syrup 4.
The bag in box syrup MUST be within 2 meters of the unit and can be level with
or below the unit.
4. Plug the detachable mains lead into the power inlet socket and the plug into the
mains supply socket on the wall. Do not switch the mains power on yet.
12
Section 3

Multiplex ALBI 4 Series Specifications

General

Brand	Multiplex
Model	ALBI 4 Series
Category	Dispenser
Language	English
