10 Part Number 9294699 12/16/15
General Information Section 1

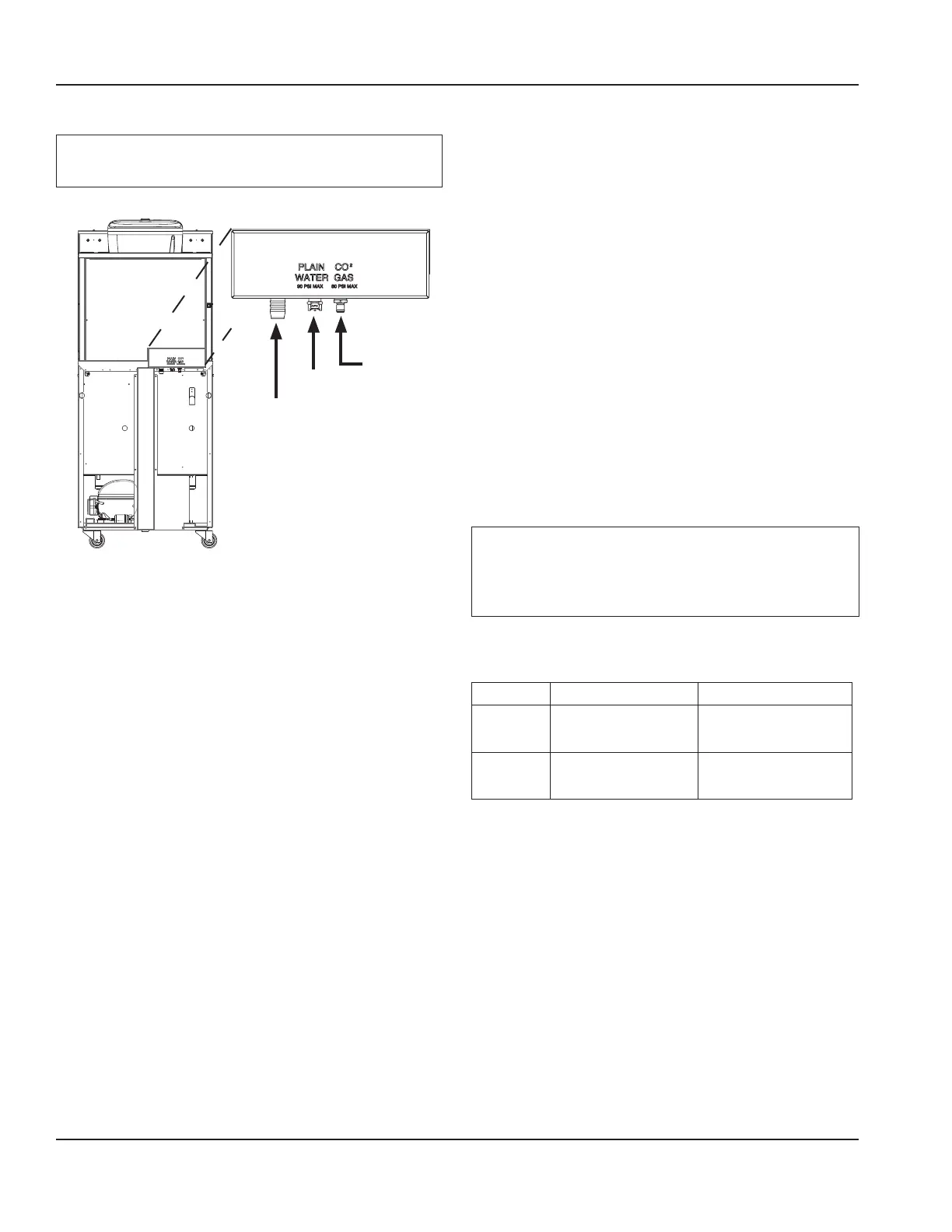

AIR / CO
2
, PLAIN & CHILLED WATER
n
Warning
Connect to a potable water supply only.
Drain
OUT
Plain
Water
IN
Air/CO2
IN
• Use supplied 3/8" (.95 cm) panel-mounted hose barb
and 6' (1.8 m) of beverage tubing to connect labeled
coupling body fitting(s) on back of unit for each supply
connection.
• Do not connect either water connection to a hot water
supply. Be sure all hot water restrictors installed for
other equipment are working. (Check valves on sink
faucets, dishwashers, etc.)
• Install a water shut-off valve in the water line at the rear
of the machine.
• Insulate water inlet lines to prevent condensation.
Hard Water
In areas where the water is highly concentrated with
minerals the water should be tested by a water treatment
specialist, and the recommendations of the specialist
regarding filtration and/or treatment should be followed.
SYSTEM PRESSURES
Supply to the Unit
n
Warning
Do not supply more than 80 psi (0.551 MPa , 551 kPa,
5.51 bar) Air/CO
2
to the unit, excessive pressure to
product pumps may cause failure.
This table shows the Minimum / Maximum supply of Water and
Air/CO
2
required at the rear of the machine at no flow conditions.
MINIMUM MAXIMUM
Air / CO
2
Supply
50 psi
(..345 MPa , 345 kPa, 3.45 bar)
80 psi
(0.551 MPa , 551 kPa, 5.51 bar)
Plain Water
Supply
65 psi
(0.448 MPa , 448 kPa, 4.48 bar)
90 psi
(0.620 MPa, 620 kPa, 6.20 bar)
To Next Page
