Section 1 General Information
Specifications

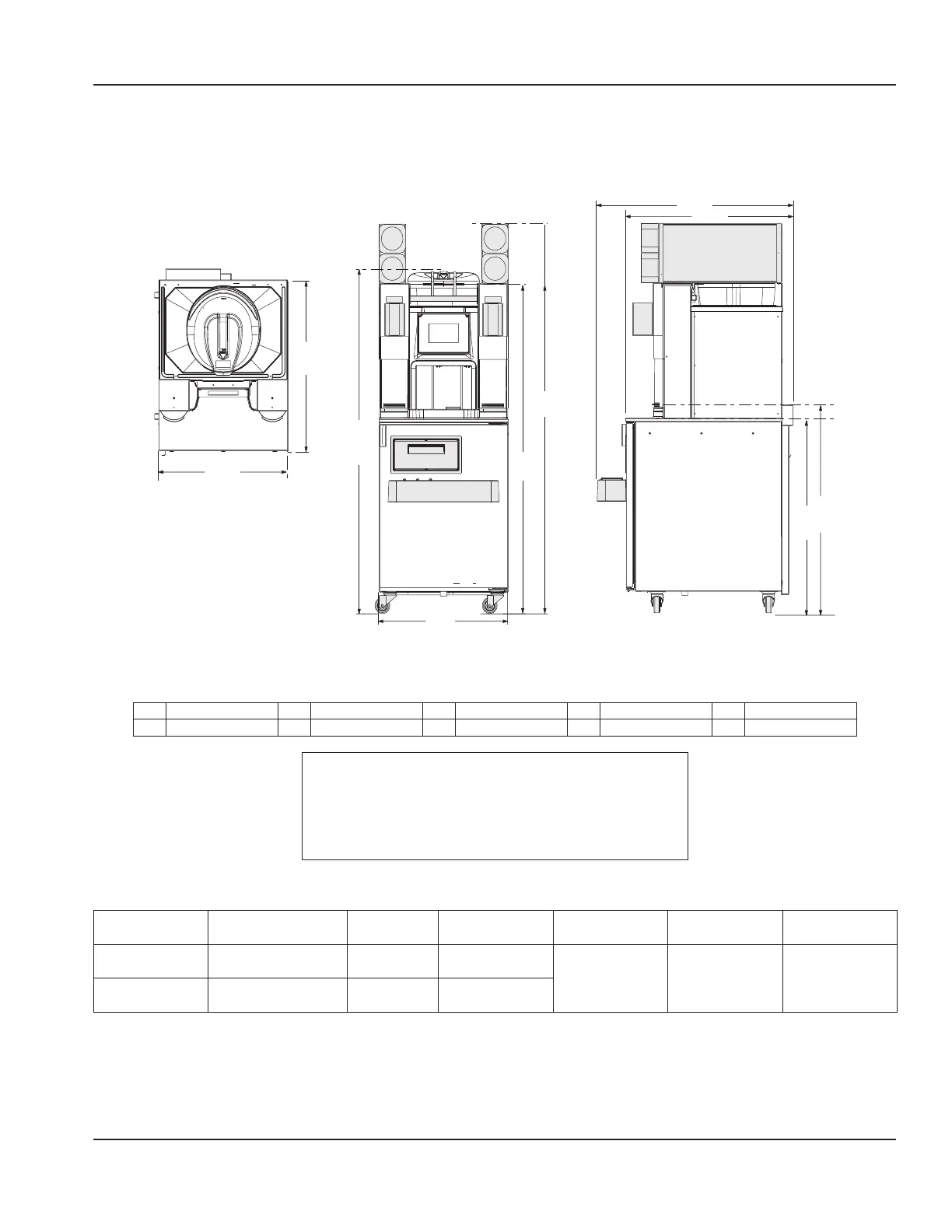

DIMENSIONS
NOTE: This illustration covers all
models, grayed out areas are options
that may be on the unit. Dimension
C is the same on all models.
* Low profile casters reduce height by 1.5” (4 cm)
Elevation View Side View
D
G
I
F
* H
E
A
C
B
J
Plan View
A 71.25" (181 cm) C 26.00" (66 cm) E 60.25" (153 cm) G 33.74" (86 cm) I 36.15" (92 cm)
B 32.82" (83 cm) D 40.10" (102 cm) F 26.00" (66 cm) *H 63.48" (161 cm) J 39.09" (99 cm)
n
Warning
To avoid instability the installation area must be capable
of supporting the weight of the equipment and a full
bin of ice. Additionally the equipment must be level side
to side and front to back.
CAPACITY & WEIGHT
Ice Capacity HP Max Product
BinLoad
Shipping
Weight
Empty Weight Full Weight
Lower Cabinet – 1/5 19.8 lbs
(9 kg)
461 lbs
(209 kg)
Crated
347 lbs
(157 kg)
Unpacked No
Ice/Product
500 lbs
(227 kg)
With Ice/
Product
Ice Bin 23 lbs (10 kg) – –
