DA7000 SERIES GENERATORS • OPERATION AND PARTS MANUAL — REV. #5 (01/20/11) — PAGE 53
GENERATOR WIRING DIGRAM

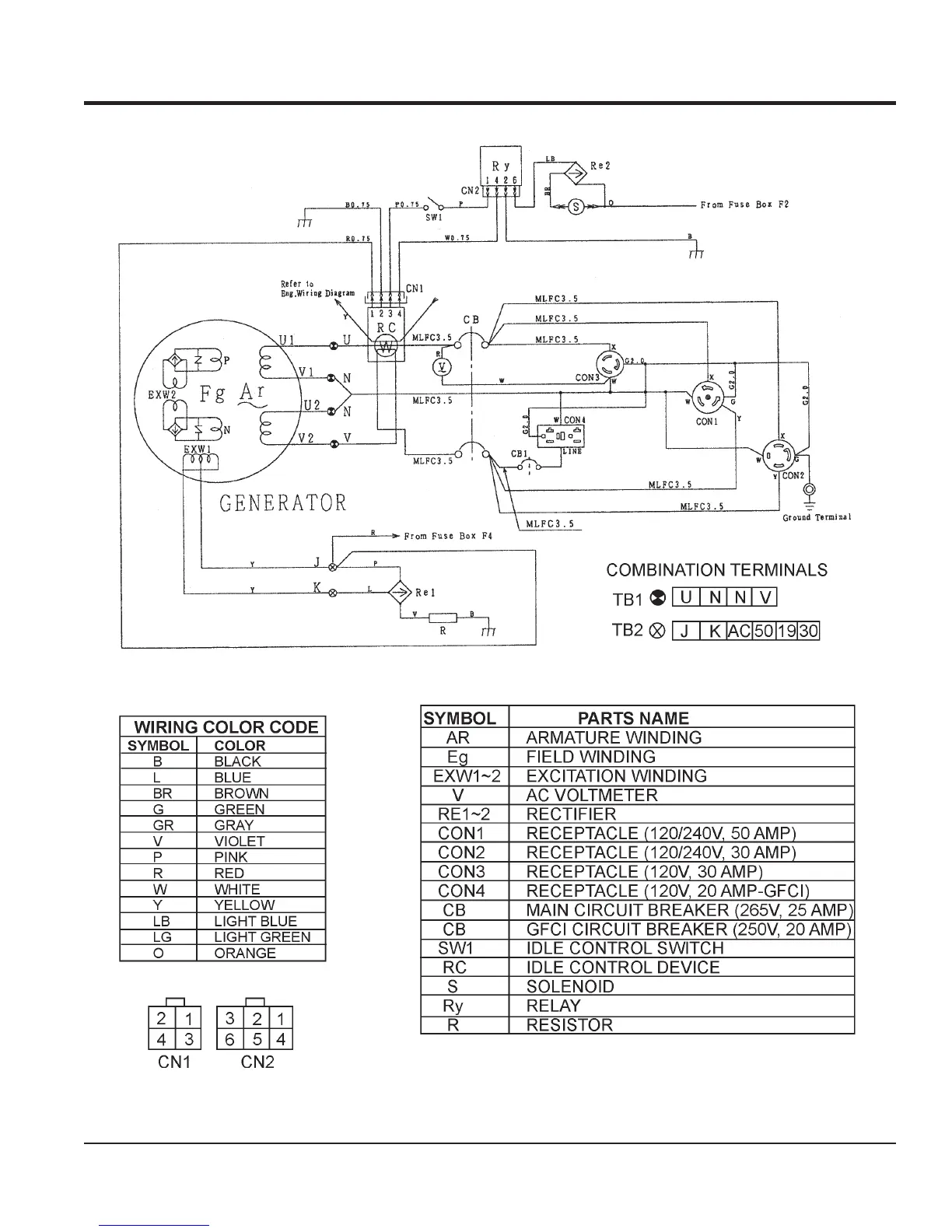

Figure 38. Generator Wiring Diagram (DA7000 SERIES)
