PAGE 12 — EM120 HYD. PLASTER/MORTAR MIXER • OPERATION AND PARTS MANUAL — REV. #1 (09/09/19)
DIMENSIONS/SPECIFICATIONS
Table 1. EM120 Hyd.
Concrete Mixer Dimensions/Specifications
Reference Letter/Parameter Dimensions in. (mm)
A (Height) 62.5 (1,587)
B (Width) 56 1,422)
C (Length) 82 in. (2,083)
Maximum Mixing Capacity 12 cu. ft. (339.8 liters)
Bag Capacity
3.5 ~ 4 bags
Hydraulic Oil Tank Capacity
12 gallons (45 liters)
Hydraulic Oil Type
Shell Tellius 68, Mobil DFE26 or Texaco Rand HDC
Weight
1,010 lbs. (554 Kg)

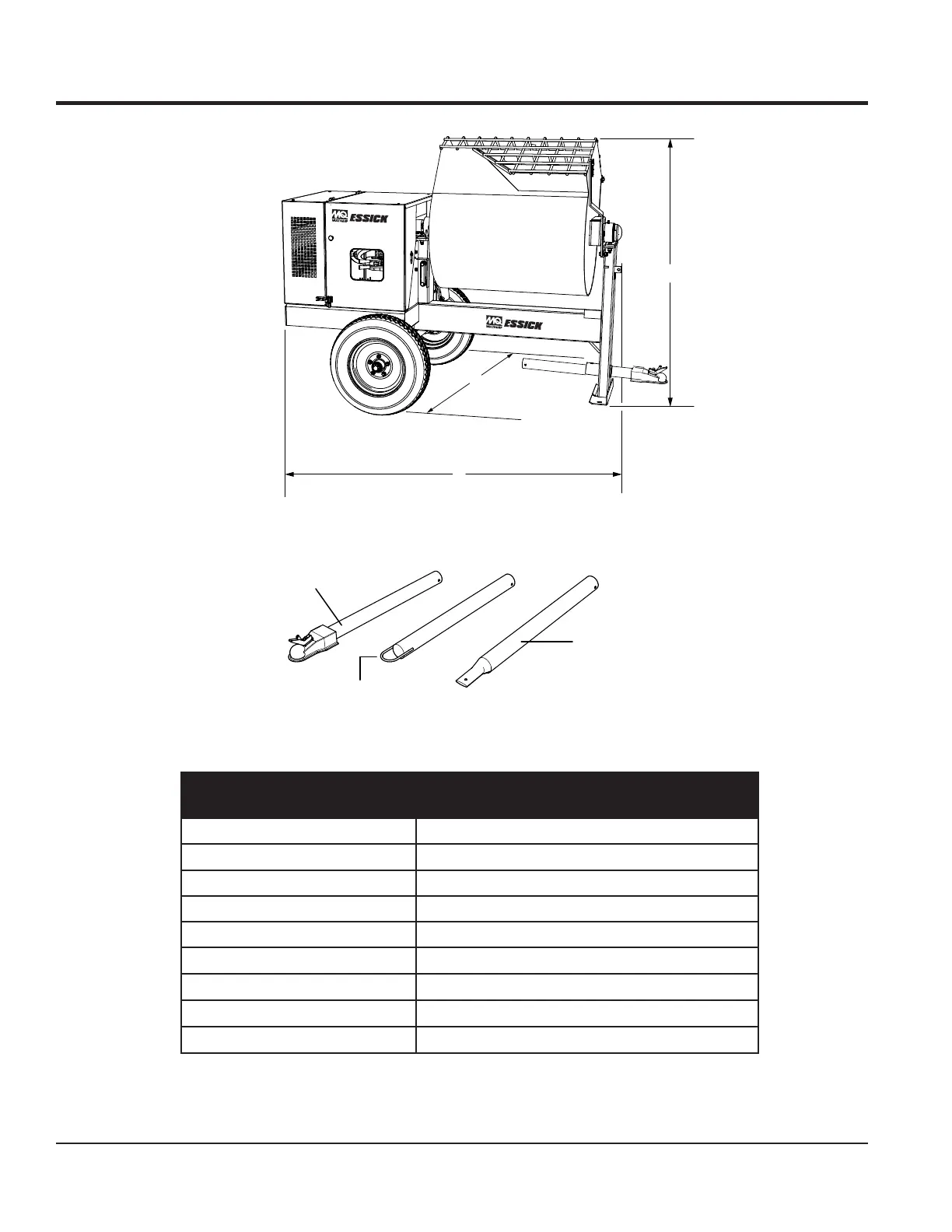

Figure 1. Dimensions
A
B
C
HBC-1
2-INCH
BALL COUPLER
HPC-1
1-INCH
PIN COUPLER
OPTIONAL TOW BARS
APPROXIMATE LENGTH
36IN. (914.4 MM)
HLC-1
LOOP COUPLER
