SPECIFICATIONS AND RELATED INFORMATION
Conduit
®
Base Station IP67 Getting Started Guide for Versions 1.5 and 2.1 17

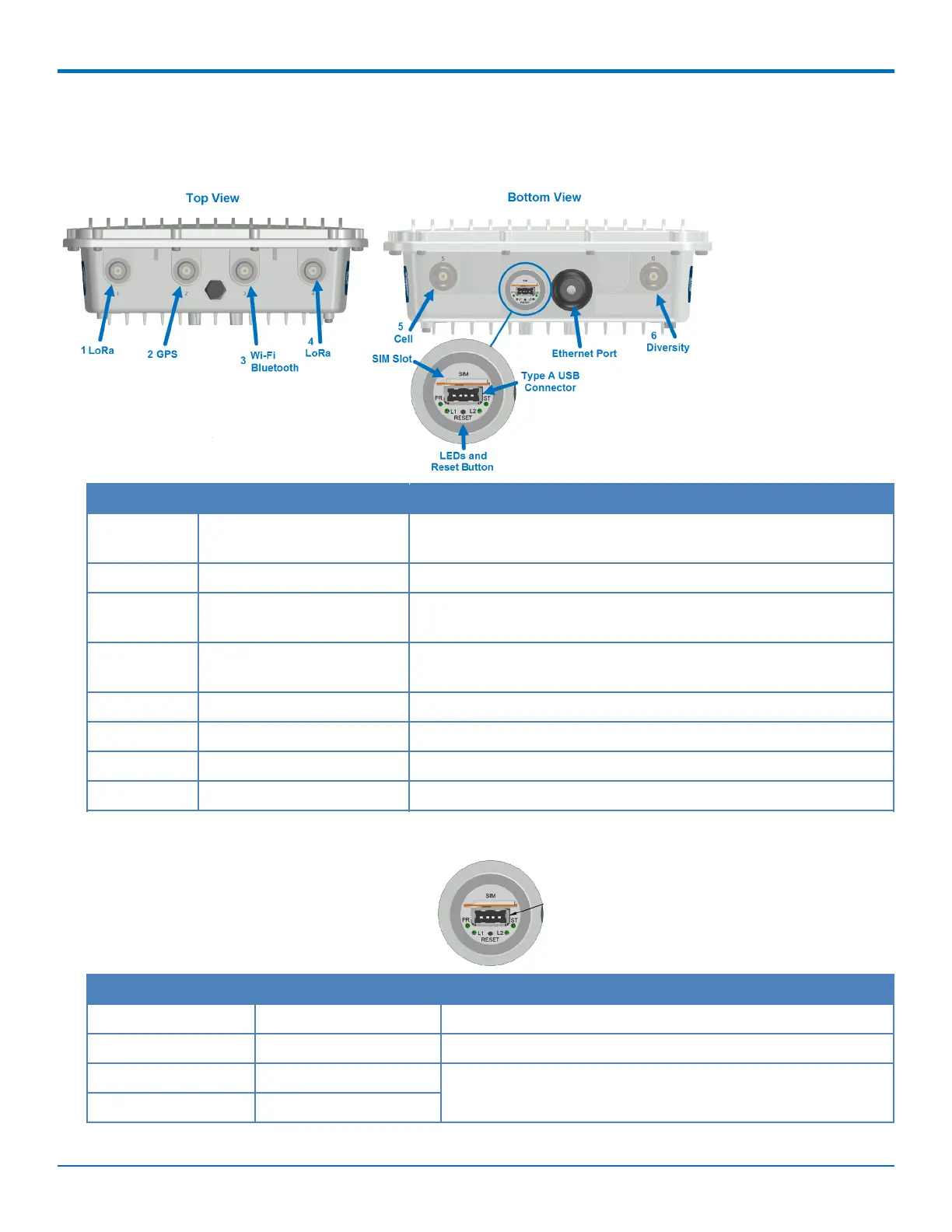

LEDs and Connectors
Connectors
# Connector Description
1 LoRa Connector for LoRa antenna. If the model has only one LoRa card,
attach the LoRa antenna to this connector.
2 GPS Connector for GPS antenna.
3 Wi-Fi/Bluetooth For Wi-Fi/Bluetooth models, use this connector for the Wi-Fi
antenna.
4 LoRa Connector for LoRa antenna. Used only if the model has two LoRa
cards.
5 Cell For cellular models, use this connector for an LTE antenna.
6 Diversity For cellular models, use this connector for the second LTE antenna.
-- USB Type A USB connector. Behind plastic cover.
-- Ethernet Port Ethernet port with IP67 rated cable gland.
LEDs
Label LED Description
PR Power Green when powered up.
ST Status Red with blinking green. User programmable.
L1 LoRa 1 User-defined. Can be red or green.
L2 LoRa 2
