Simple to install
The FA6 is easy to install and easy to configure into both exist-
i
ng and new HVAC systems.
For installation you need to have access to electricity
(400V/50Hz) and (230V/50Hz) as standard for Pump and
Solenoid valves. Pump for (230V/50Hz) or (120V/60Hz) and
solenoid valves for (24V AC) are available as option on stan-
dard FA6.
Water supply (1-10 bar) and drainage (Ø 50 mm). See the
technical manual for details.
Connect to existing BMS/control system or Munters can
supply a new control system for the control of humidifier/
cooler.
Due to its high performance and compact design it is the ideal
replacement for older, less efficient humidifiers/coolers.
Included in standard delivery for connection
of water supply.
Direct water system
1 Shutoff valve ½” male connection
2
Solenoid valve ½” female
3 Constant flow valve ½” female
4 Flexible hose ½” female
Circulating water system
1 Shutoff valve ½” male connection
2 Solenoid valve for water inlet is included in design
3 Flexible hose ½” female
Not included in delivery but recommended
1 Water filter 18060708 a pore size of 500 µm
2 Water trap (Ø 40 mm) 180CU1060 and 40-55 mm adapter
Make sure AHU section where FA6 unit will be placed is
designed to carry the weight of the unit.
The humidifier is to be installed level and the floor must with-
stand water.
The unit space is to have a drain for any water spilled dur-
ing service.
To simplify the installation of piping, it is recommended
that a permanent access cover be installed in the lower part of
the Inspection hatch.
Make sure access for inspection/service is possible in a
safe way through the AHU inspection door.

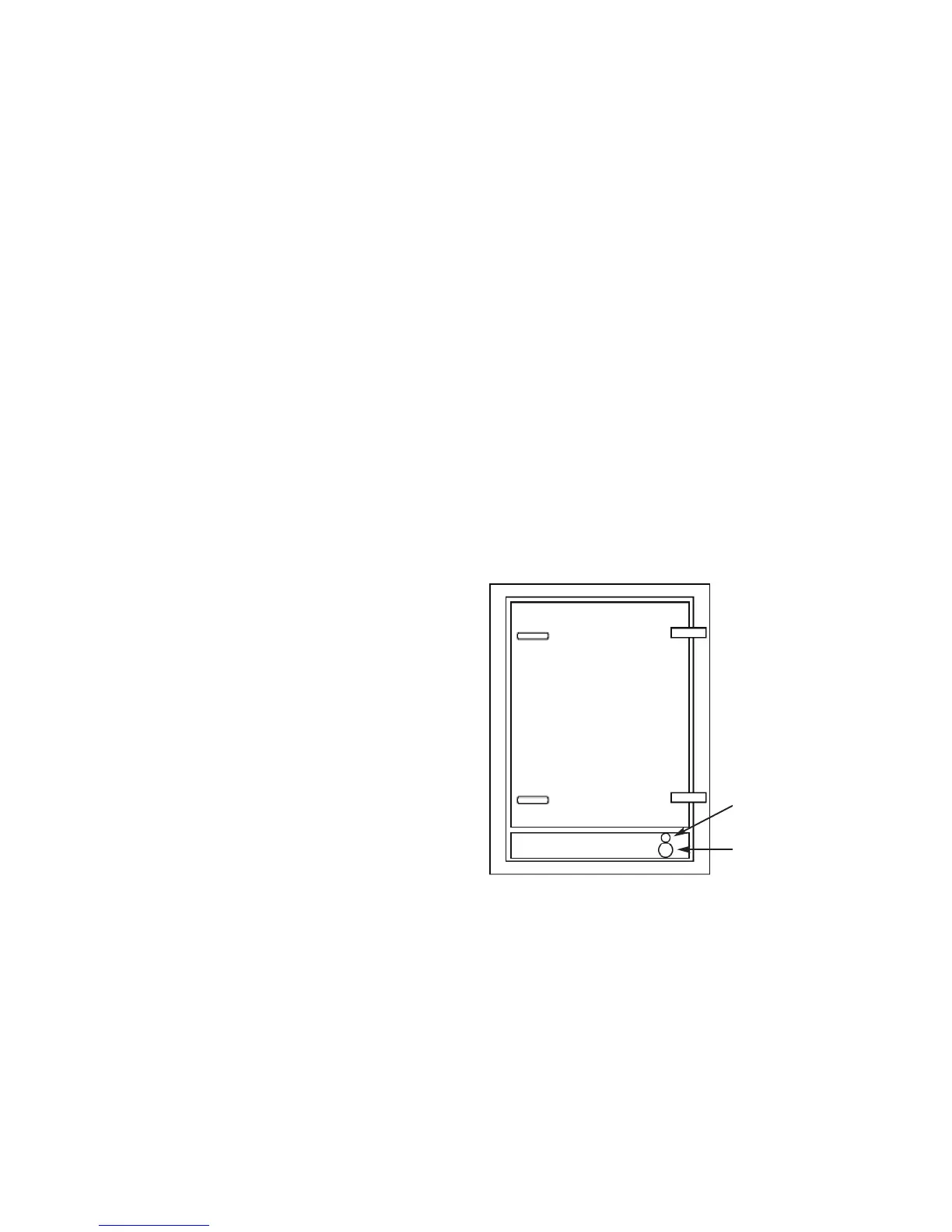

FA6 Installation planning
– Connection of cold-water, drain and electricity
Placement in unit space
Cold water
Drainage
