Munters FA6 - Technical Specifications; Connection points and access space; Electrical data - circulation pump; Sound attenuation levels

6

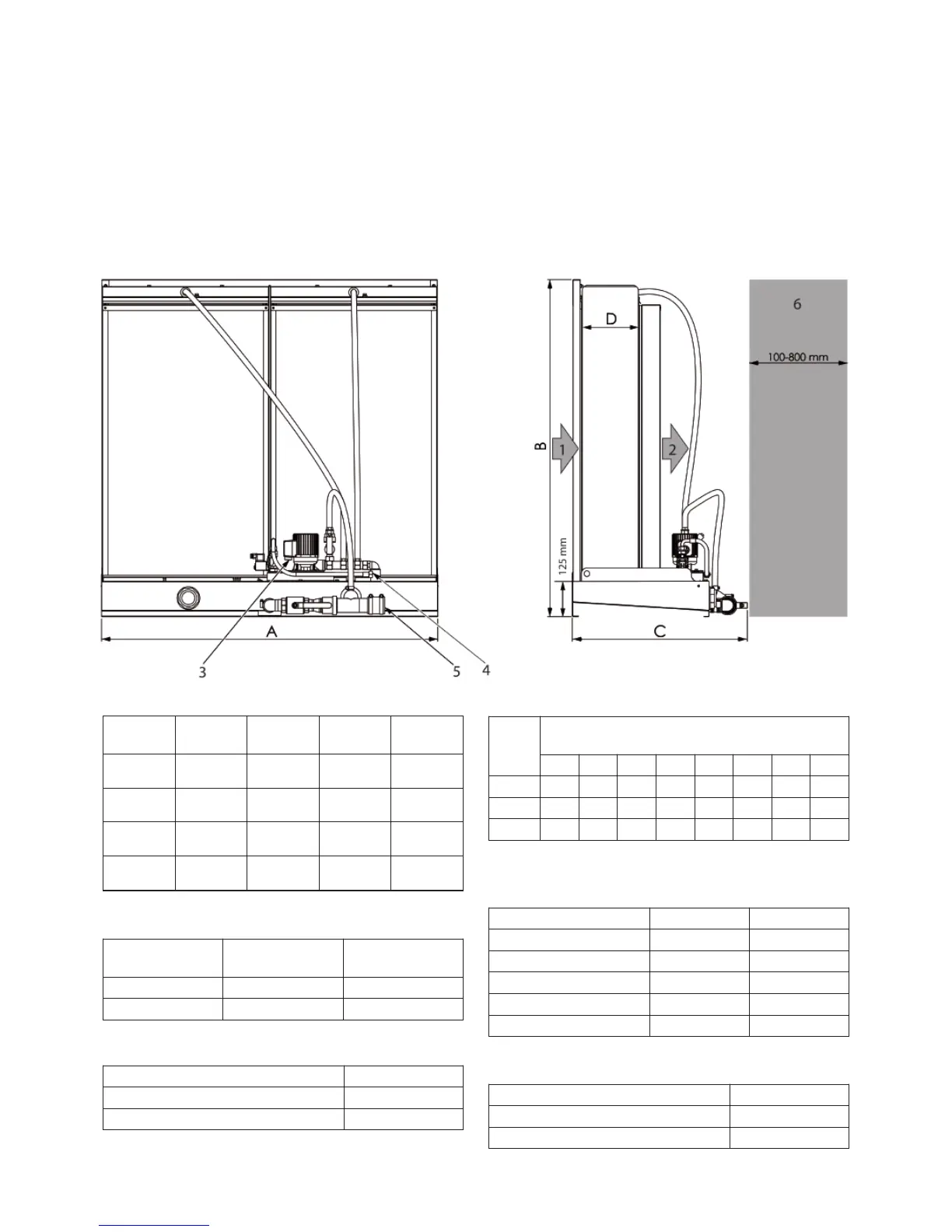

Connection points and access space requirements for service
1. Supply air
2. Humidified air
3. Electrical connection point for pump
4. Cold-water connection female threaded coupling, 1/2” 18 mm
5
. Discharge pipe with a rubber socket for piping with dimen-
sion d=50 mm / 2”.
6
. Access for inspection and servicing
Technical specifications
Pump size
(ref. p. 9)
Voltage
V ±10%
Frequency
Hz
Power
W
Rated
current A
8 KTF16
3-phase
∆230/Y400
50 49 0.26/0.15
9 KTF51
3-phase
∆230/Y400
50 75 0.38/0.22
10 KTF81
3-phase
∆230/Y400
50 140 0.71/0.41
11 KTF82
3-phase
∆230/Y400
50–60 220 0.95/0.55
Voltage
V ±10%
Frequency Hz
Power
W
1-phase 230 V(AC) 50–60 43/24
24 V(AC) 50–60 15
Bottom valve only 30 l/min
Overflow protection only 30 l/min
Bottom valve + overflow protection 60 l/min
Air Water
GLASdek 200 °C 40 °C
Mesh reinforced plastic hose 50 °C 50 °C
PVC pipes 50 °C 50 °C
Circulation pump ON 40 °C 80 °C
Circulation pump OFF 75 °C 80 °C
Integral attenuation, dB
Octave band Hz
63 125 250 500 1,000 2,000 4,000 8,000
FA6-65 3 2 2 2 4 5 8 10
FA6-85 3 2 2 3 5 6 12 15
FA6-95 3 2 3 3 5 7 13 16
Drain capacity
Pump 54
Solenoid valve 65
Drain valve 54
IP classes
Electrical – solenoid valve for step control
Electrical data – circulation pump
Sound attenuation*
Maximum continuous operating temperature
*) Sound level for FA6 unit is not above 70 dB.
Stated drain capacity is valid when using 50mm drain pipes.
