Step 7

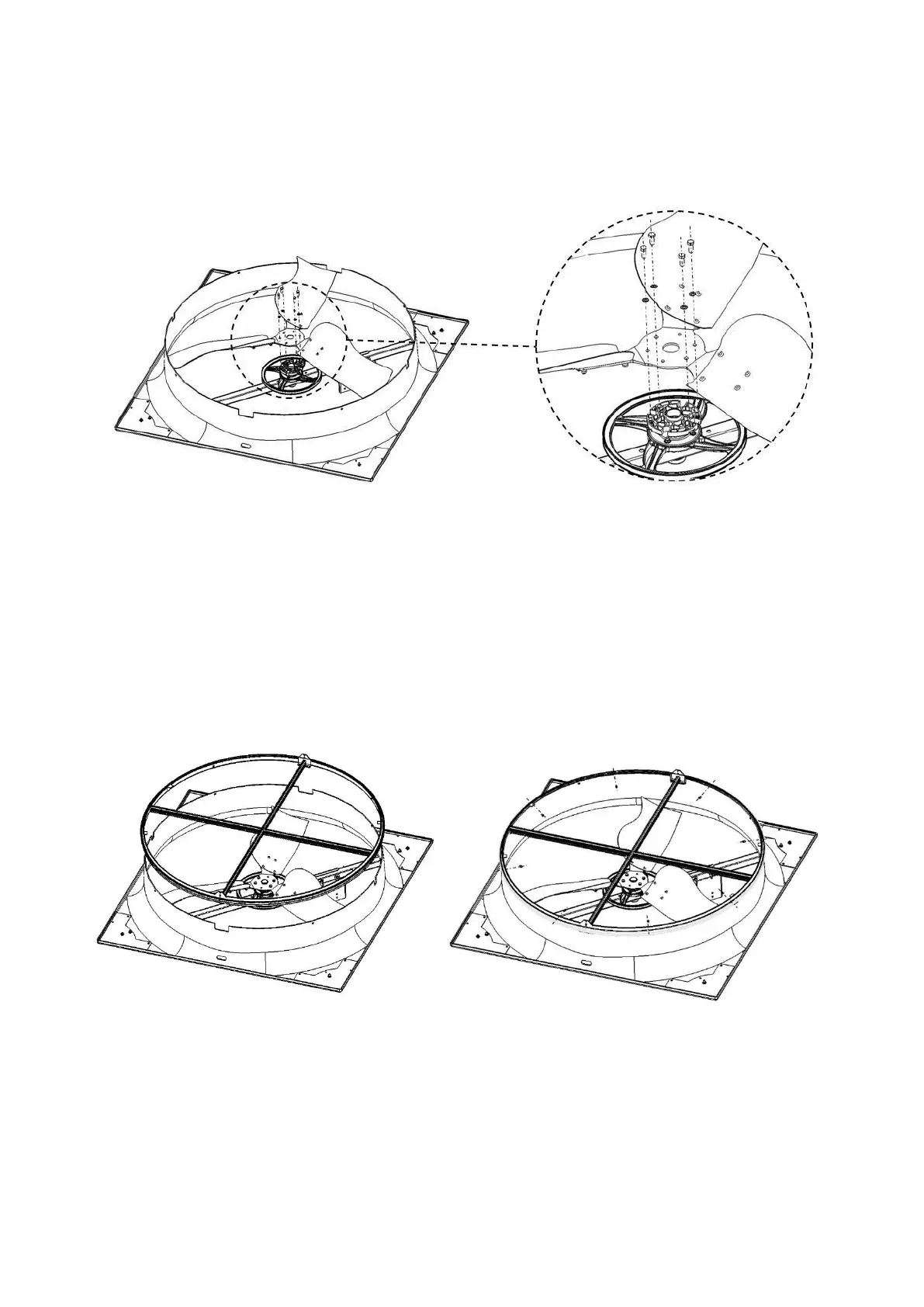

Insert the V-belt over the Central Pulley.
Attach Propeller to Hub Assembly using (4) Bolts [C], Washers [D] and Nuts [E] and tighten to 22 Nm. See Figure 7.
Figure 7
Step 8
Slide the Main Frame Assembly onto the Fiberglass Orifice with the pin on the Main Frame opposite the drain hole. See
Figure 8A.
Line up the 4 holes in the Main Frame with the holes in the orifice and fasten using (8) Self-tapping Screws [EE] paying
attention to stay at least 15 mm from the Orifice edge to avoid damaging it. See Figure 8B.
Figure 8A Figure 8B
