Step 5

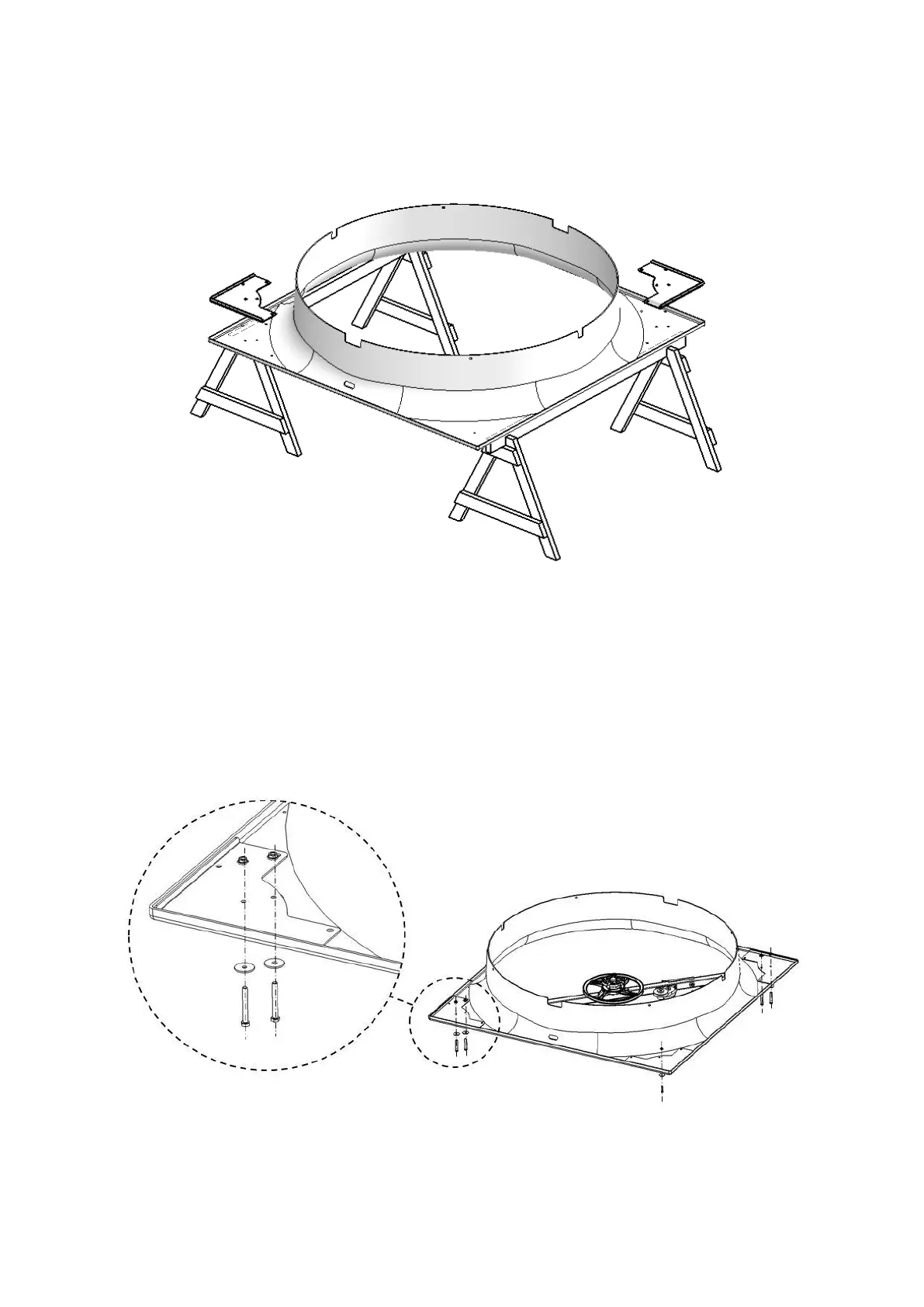

Place Fiberglass Orifice on saw horses with the round orifice pointing up and place (1) Cone/Strut Mounting Bracket in
each corner of the Fiberglass Orifice. See Figure 5.
Figure 5
Step 6
The corners of the Fiberglass Orifice with 2 holes on the diagonal are the corners where the Support Assembly attaches.
Attach the Support Assembly using (4) Long Bolts [CC], (4) Washers [A] and (4) Nuts [DD] and in the opposite corners
attach the Cone/Strut Mounting Bracket to the orifice using (1) Short Bolt [AA], Washer [A] and Nut [DD]. See Figure 5.
Figure 6
