Step 12C
From the inside attach each of the Tension Springs to the hole in the upper plate of the Main Frame using the end of the
spring with the loop, then stretch the spring and insert the other end of the spring into the hole drilled in the door in the

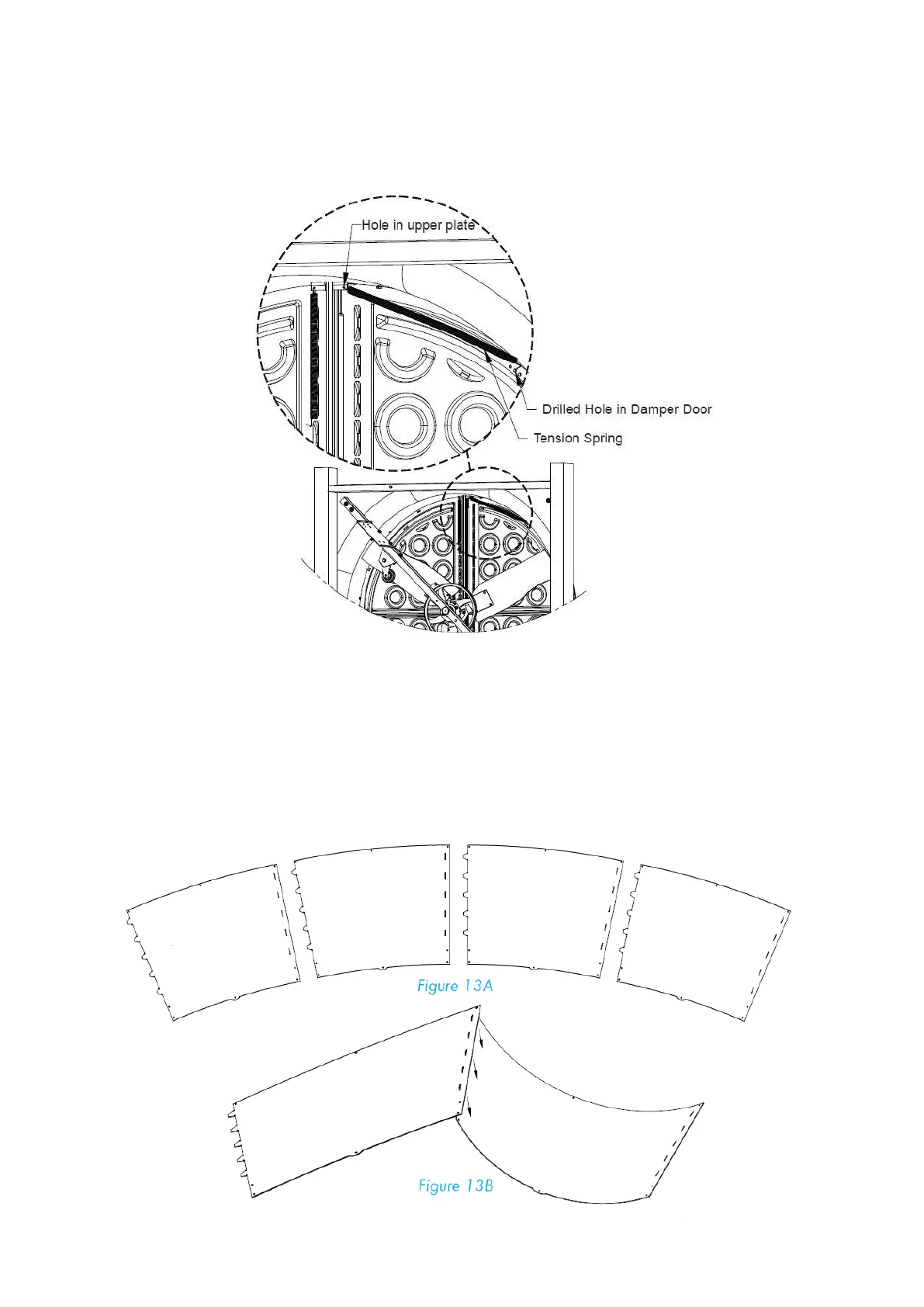

previous step. See Figure 12C.
Figure 12C
Step 13
Place all 4 cone sections on a flat surface with the tabs from one facing the slots of the next. See Figure 13A. Curl up the
tab end of the first cone section and insert the tabs up into the slots in the next cone section, a mallet may be needed to
seat the slots over the tabs completely. See Figure 13B. Repeat this step until all 4 cone sectors are connected and laying
flat.
