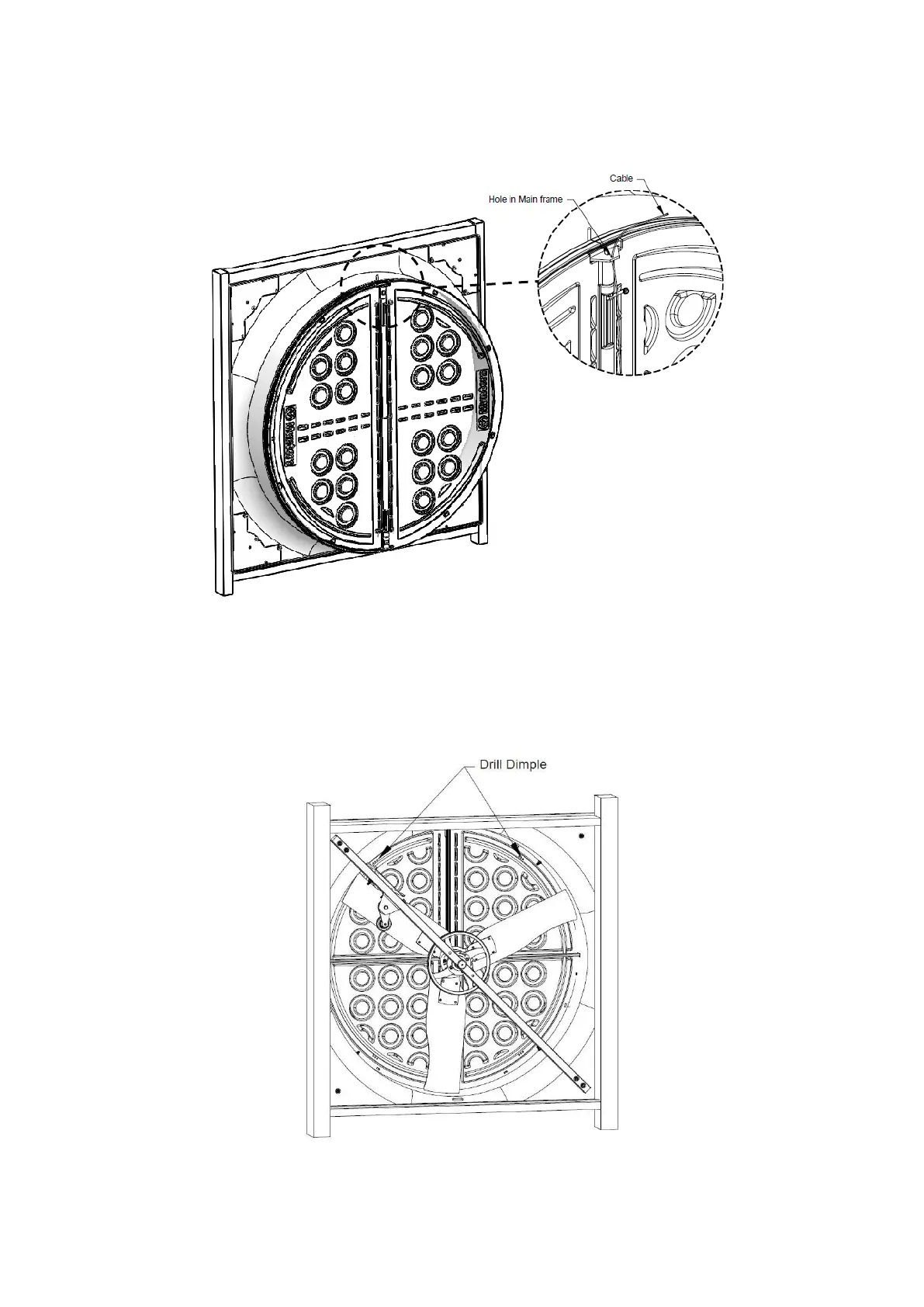

Step 12A
Find the Cable, insert it into the small hole in the upper plate of the Main Frame, pull it through and stop it at the end with
a Cable Clamp [R]. See Figure 12A.
Figure 12A
Step 12B
On the room side of each door drill a 3mm dia. Hole in each door through the center of the middle dimple shown. See
Figure 12B.
Figure 12B
