27 | © Munters AB, 2019

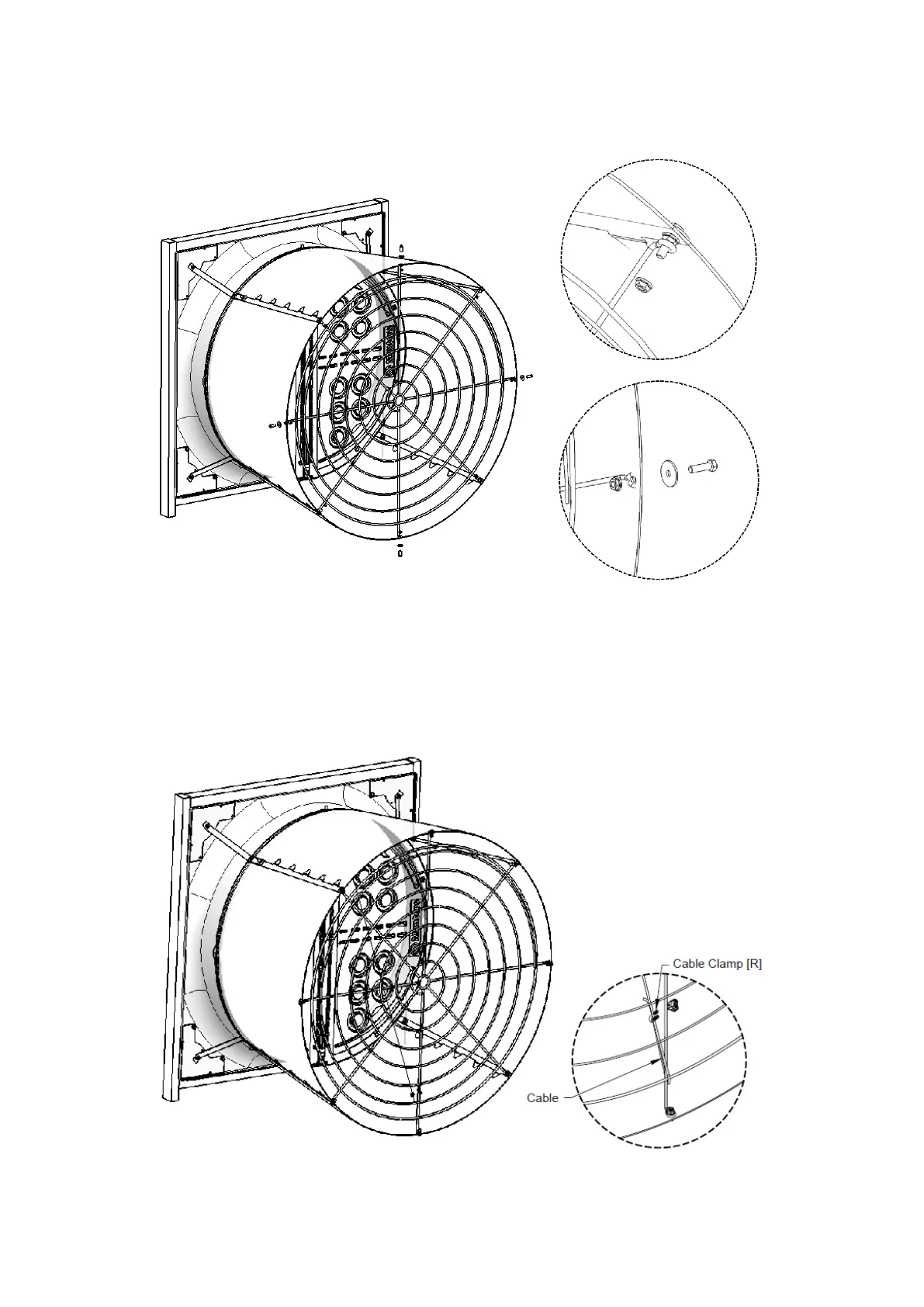

Step 16
Insert guard into cone with the eyelets facing you. Install eyelets over bolts already installed in cone and fasten with Nut
[DD] and then secure remaining eyelets using Short Bolt [AA], Washer [A] and Nut [DD]. See Figure 16.
Figure 16
Step 17
Loop Cable that was installed in a previous step, around the lower, middle joint in guard and fasten to itself with Cable
Clamp [R]. Make sure cable is pulled snug. See Figure 17.
Figure 17
