Munters WM54 - Motor Mounting & Modification (Steps 18, 19 & 20)

28 | © Munters AB, 2019

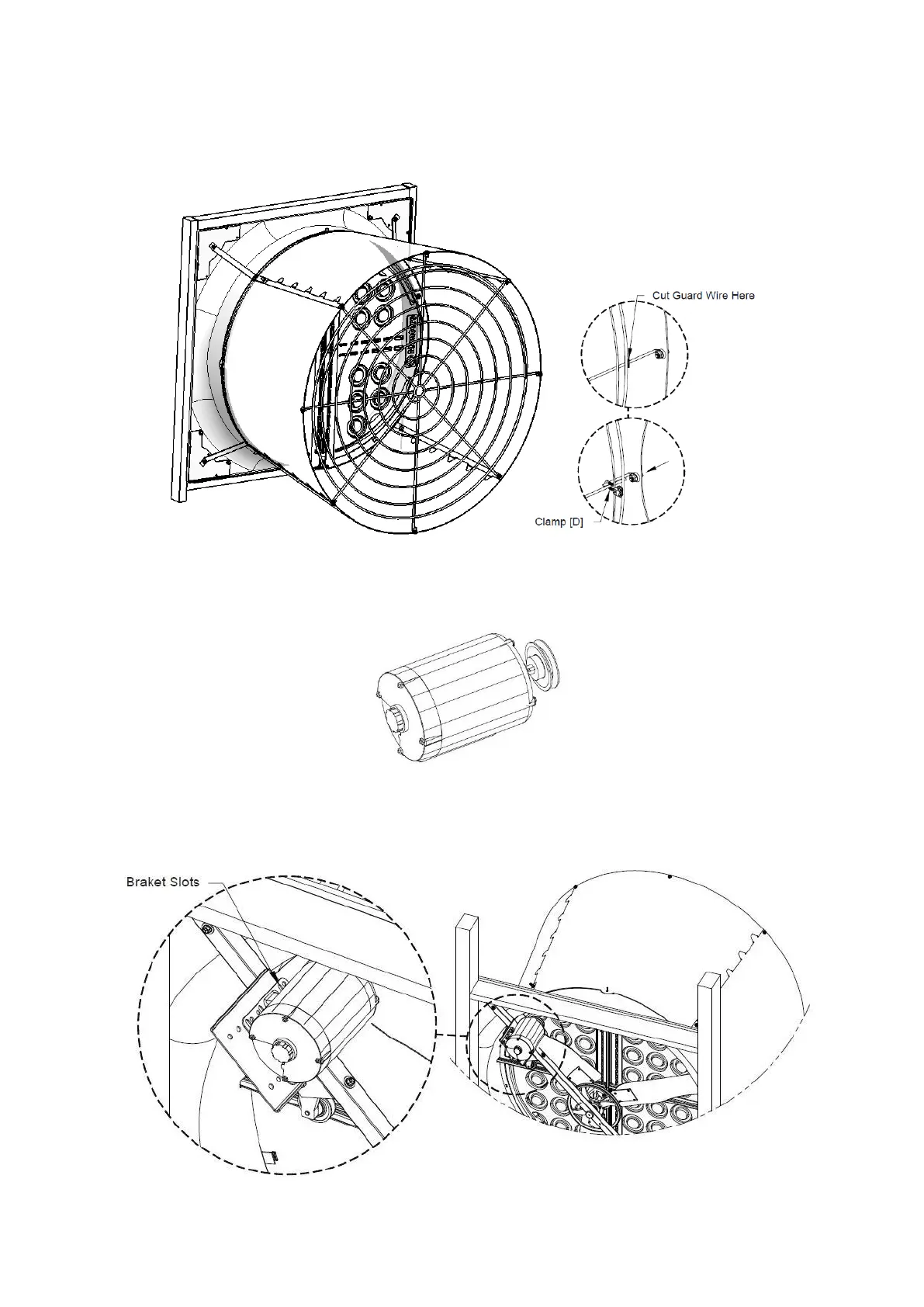

Step 18
If Fans are to be installed 1524mm O.C., cut the 3 o’clock and 9 o’clock guard wire in the position shown and push the
side of the cone in as far as possible and fasten the cut guard wire to the attached guard wire using Clamp [R]. See Figure
18.
Figure 18
Step 19
The Motor Pulley is already assembled on the Motor by means of a Screw M8x20 and a Washer Ø8x32. See Figure 19.
Figure 19
Step 20
Set the Motor on the Motor Slide. See Figure 20.
Figure 20
