Step 23

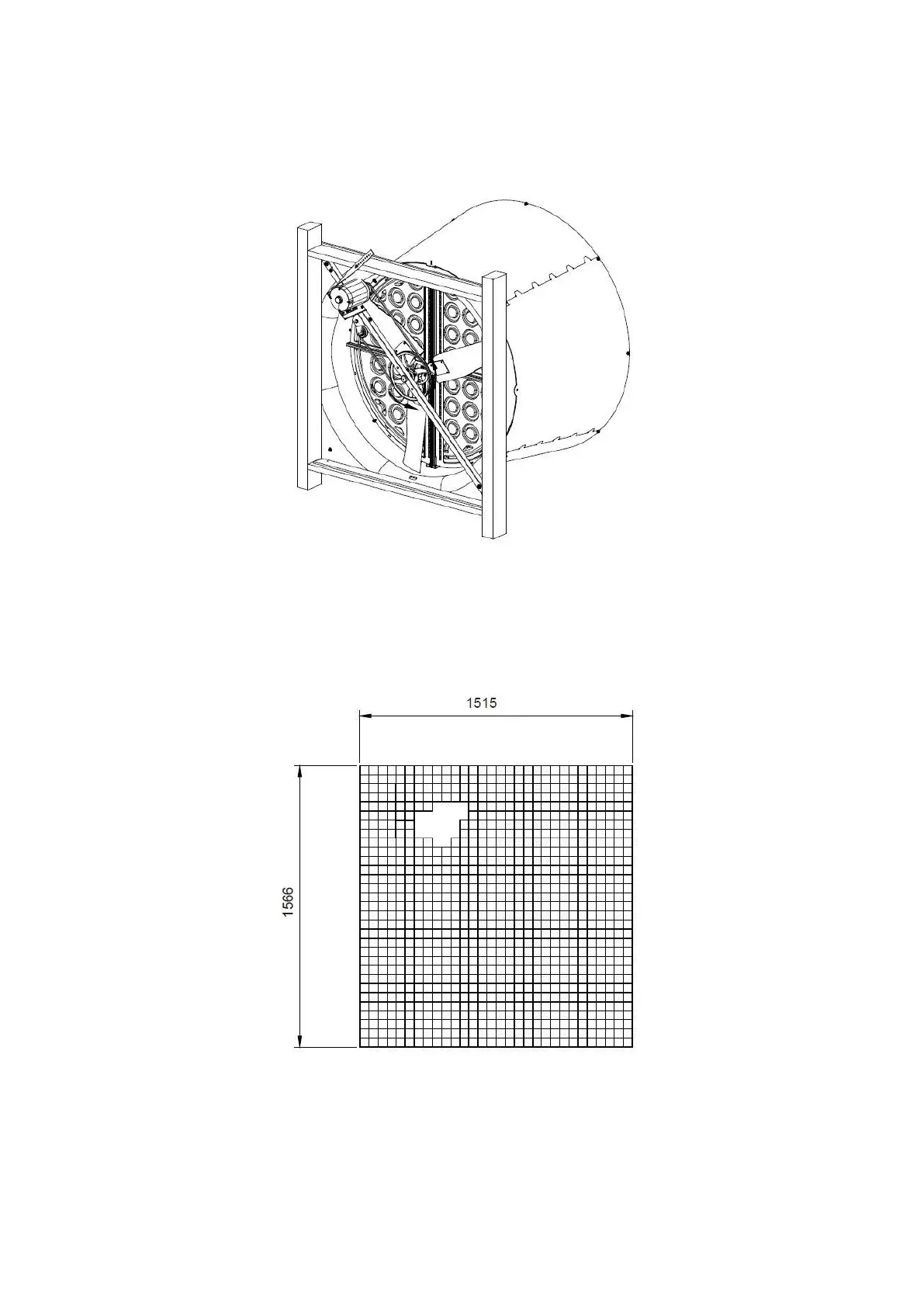

Slide V-belt over Propeller and install by wrapping it around the 2 smaller pulleys and starting it over the larger pulley,
continue rolling it onto the larger pulley until it fits onto pulley. See Figure 23.
Figure 23
Step 19
Take the flat mesh. See Figure 24.
Figure 24
