Step 24B
Place the mesh against the framing and fasten it in place using (12) Plastic clips [P] and proper Screws (Not Provided).
See Figure 24B.
NOTE
The proper type of fixing screw has to be selected depending on the material of the wall of the installation
NOTE
The flat mesh can be installed in case of a thickness wall ≥ 120mm. For lower thicknesses, if the fan is at
a height of less than 2.7m from the ground, a dedicated mesh must be ordered separately.

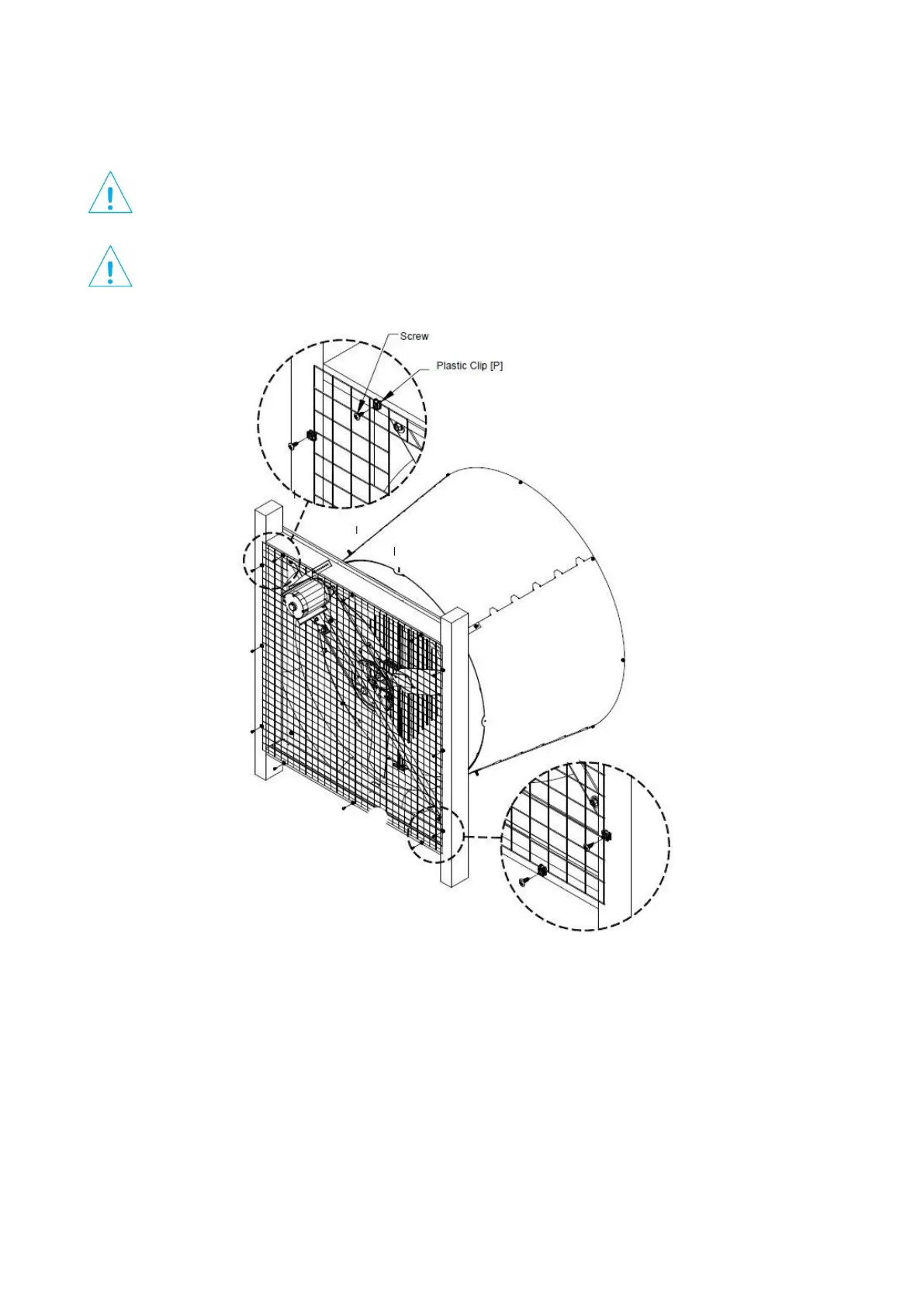

Figure 24B
