Function earth
The FE connection is located at the bottom front edge of the module. To guarantee proper
functioning in compliance with the EMC regulations specified in the datasheet, we recommend
the use of our grounding strap which is not supplied with the module, but can be ordered from
us separately.
 Please refer to our accessory information on page 36.
 FE connection

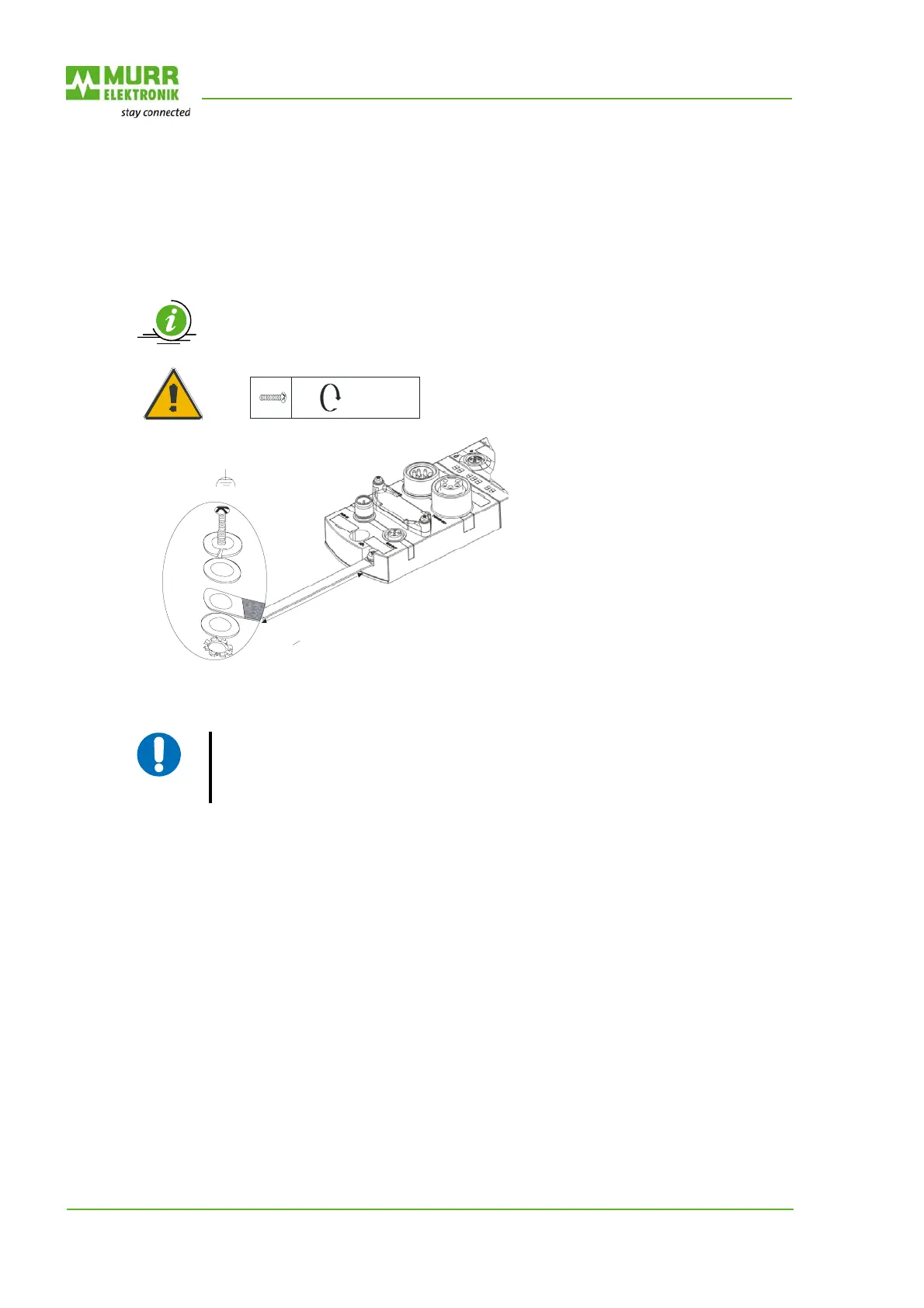

Fig. 3: Function earth
Make a low-impedance connection from the FE connection on the housing to
the function ground (see instructions on the subject of EMC).
10,7 lb-in
1,2 Nm
+
-
0,2
+
-
1,8
M4
FE
Max. 10 cm
> 2,5 mm²

