12 Assembling the carrier plate / printing

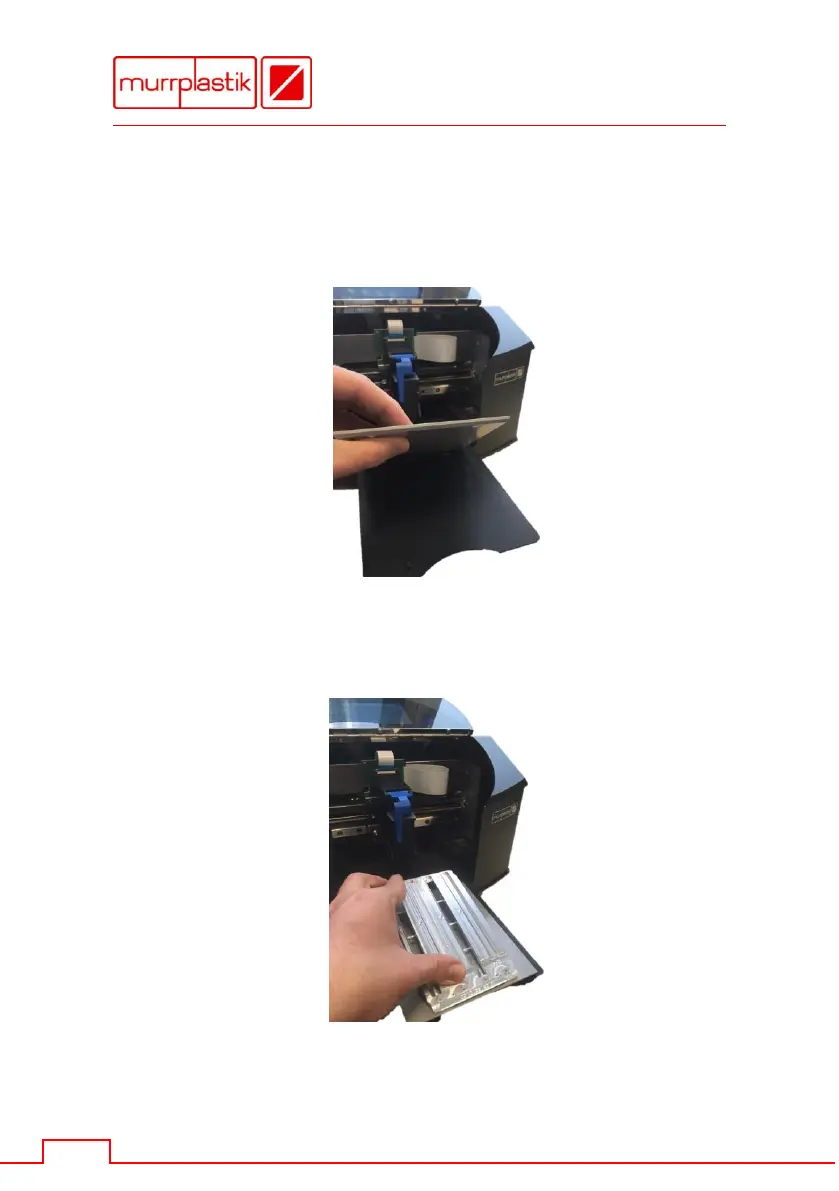

Place the carrier plate on the drawer as shown in the following figure.
Then place the base plate on the carrier plate.
