Controls and navigation

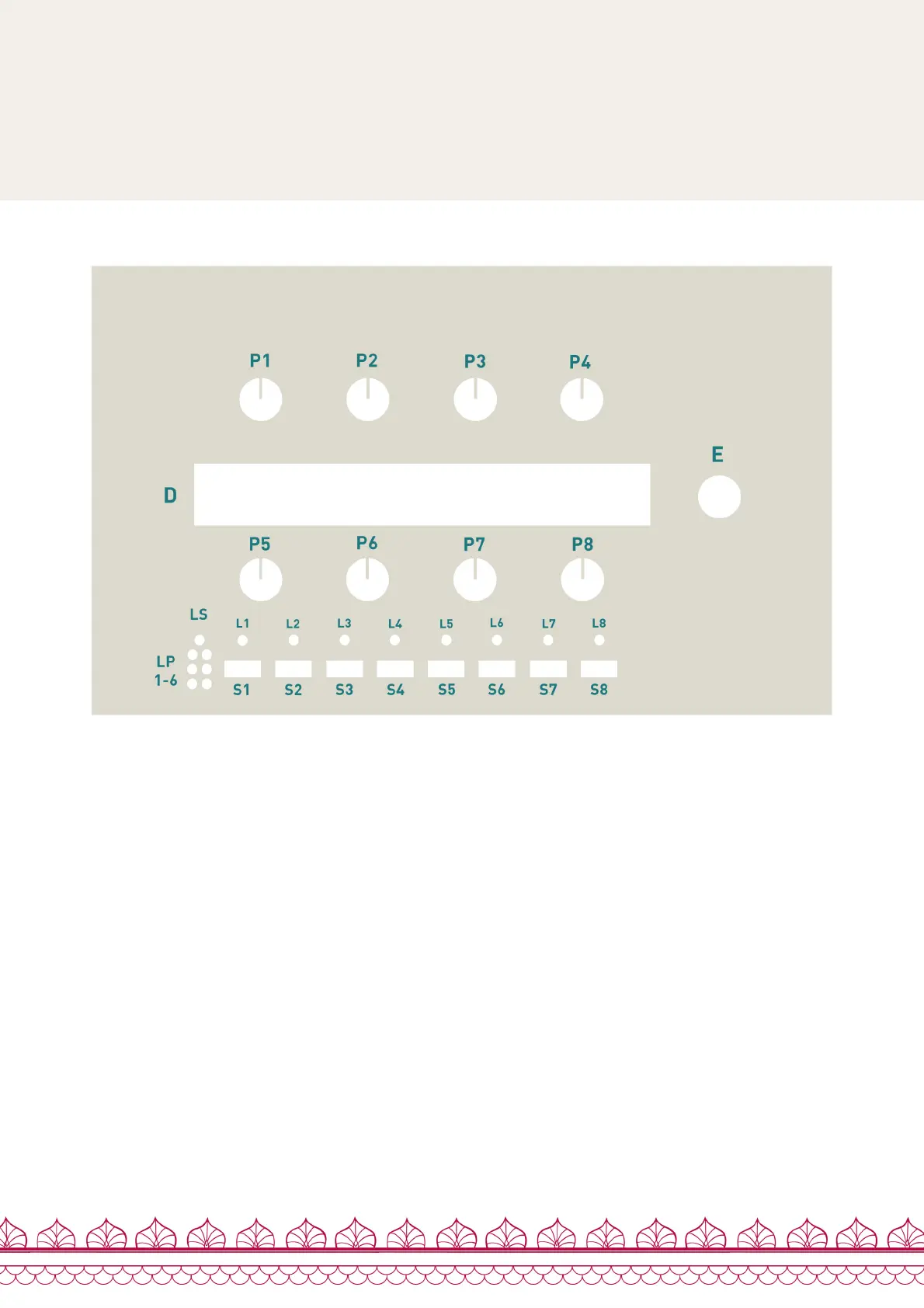

The 2x40 characters LCD display D displays, most of the time, the name and values of the
8 synthesis parameters accessible by the 8 potentiometers P. The parameters are
organized as two rows of 4 parameters.
The clickable encoder E is used to scroll between parameters/pages, or to fine-tune the
value of a parameter.
The 8 LEDs L1...L8 indicate which page is active.
The 8 switches S1...S8 are used to display synthesis pages. For example, S1 shows the
oscillators and mixer page ; S2 shows the filter page, etc.
The part and voice LEDs LP1...LP6 indicate which part is active (green lights), and which
voicecards are currently playing notes (yellow lights).
The status LED LS is used to visualize the rate of a LFO or the beats in a sequence —
depending on which module you are editing.
