MAINTENANCE 6
6

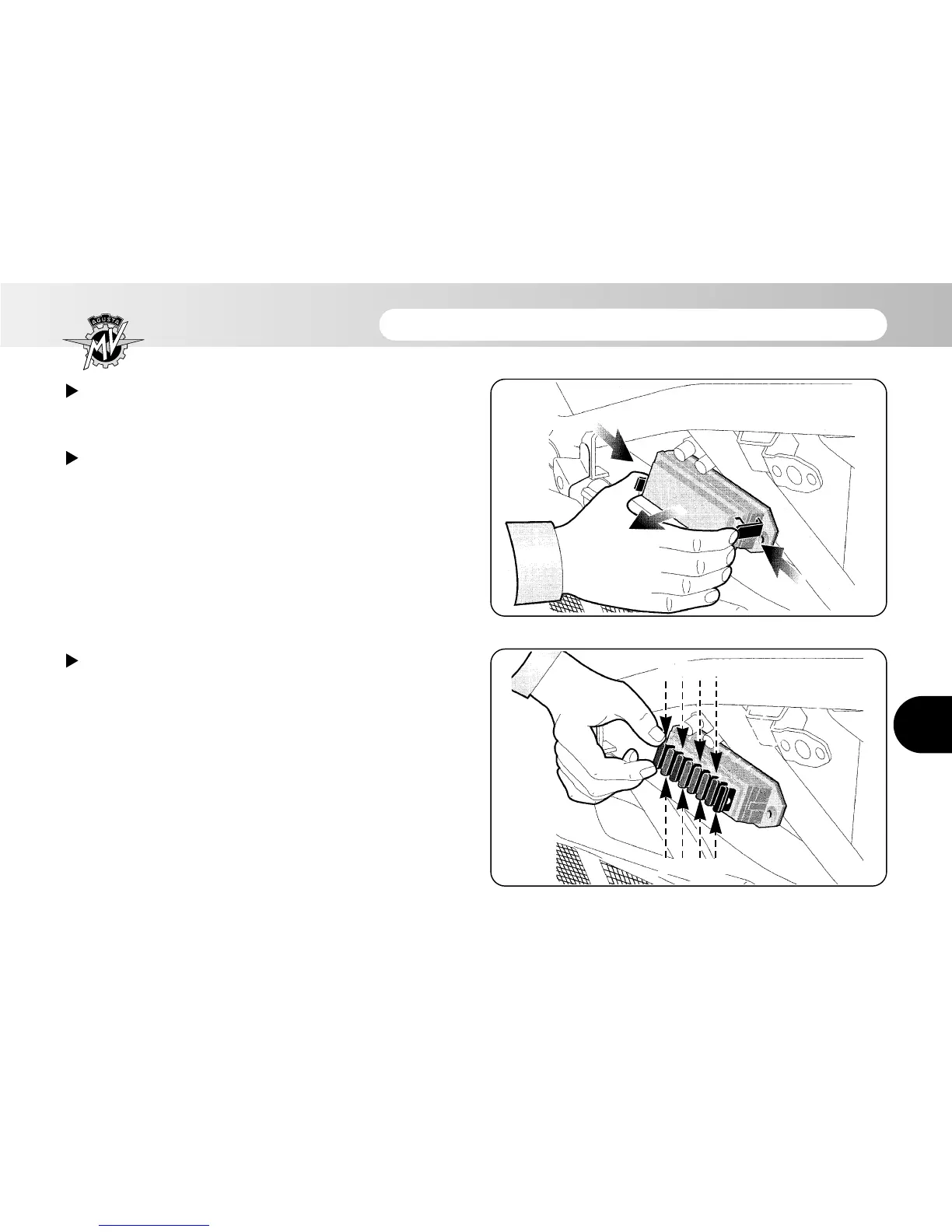

The service fuses are located on the right side.
To expose them, remove the side fairing (see §
6.4).
Remove the fuse box cover.
Replace the blown fuse and refit the cover. To
identify the position and function of the fuses,
refer to the information shown on the adhesive
label and in the enclosed electrical diagram. The
reference letters in the figure correspond to those
shown in the diagram.
Remember that the tool bag contains two spare
fuses.
ACEG
BDFH
