- 75 -
ADJUSTMENTS 5
5

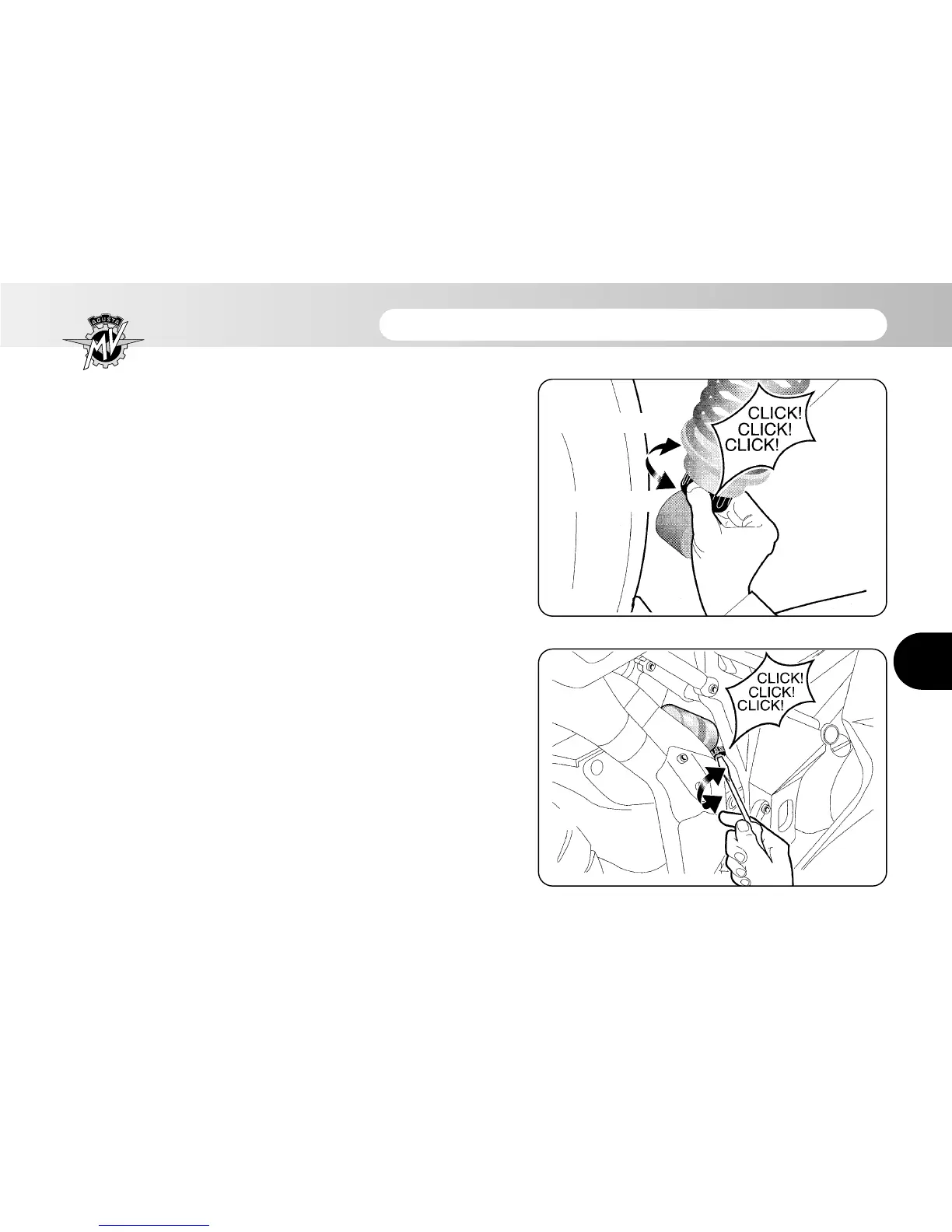

5.8.1 Rebound damping hydraulic device (rear sus-
pension)
The adjustment is obtained from the standard position,
which is found by fully rotating the ring clockwise and
then anticlockwise (see table). Rotate clockwise to
increase the damping action or anticlockwise to
decrease it.
5.8.2 Compression damping hydraulic device (rear
suspension)
The adjustment is obtained from the standard position,
which is found by fully rotating the screw clockwise and
then anticlockwise (see table). Rotate clockwise to
increase the damping action or anticlockwise to
decrease it.
clockwise
anticlockwise
