Chapter 5 Maintenance and Inspection
UD-series Screw Compressor 5.5 Reassembly
5-64

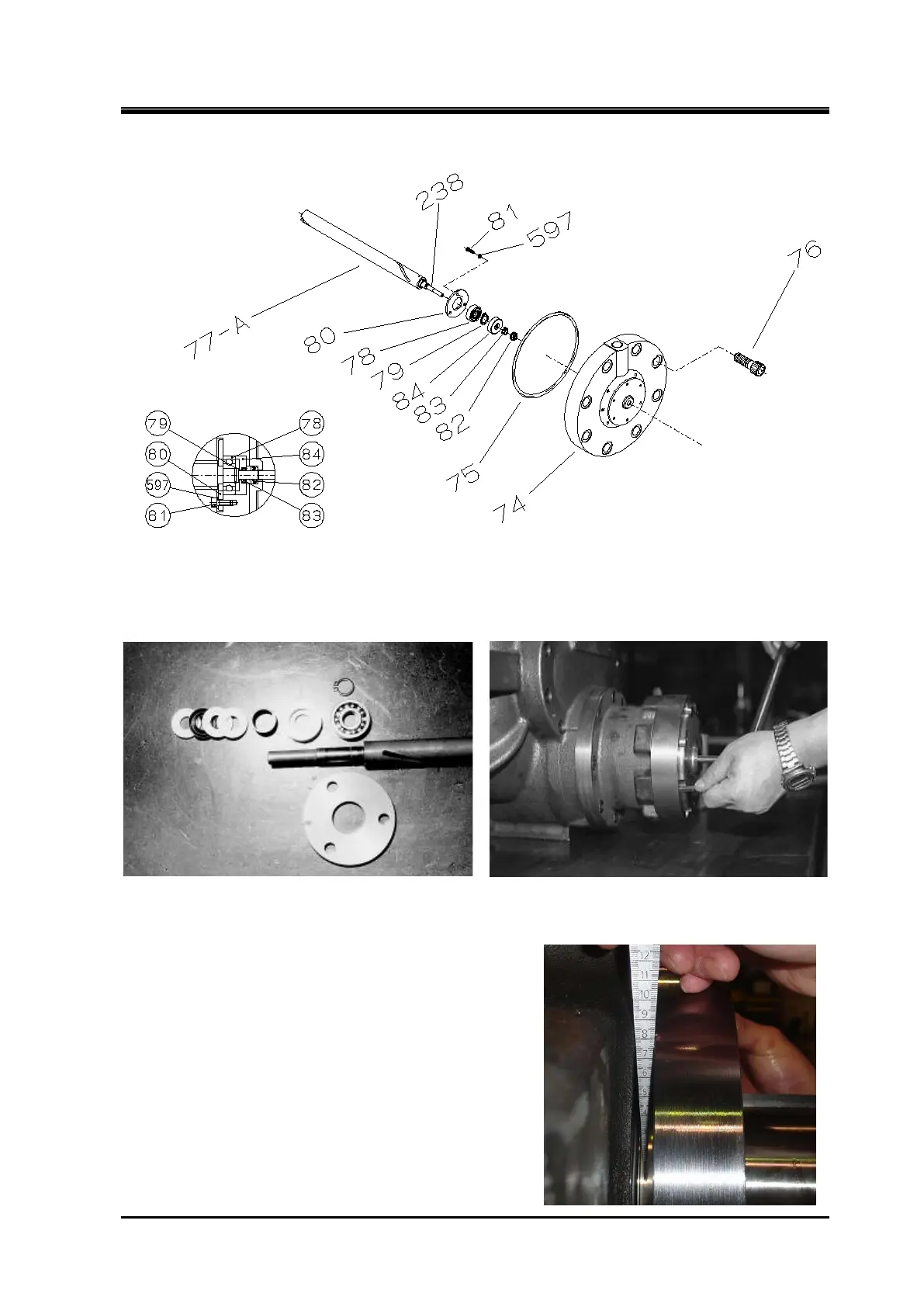

Figure 5-28 Development view of the Unloader cover (400 type)
5.5.11 Shaft Seal Block
The assembly procedure of the shaft seal block is the
reverse sequence described in Section 5.4.3 as shown
in the order of the colored number of each sectional view
drawing.
Disassembly and assembly works of this block
especially require qualified trained personnel and special
tools. For details contact us.
Indicator CAM Mounting parts
To Next Page
