Myson iVector S2 - 2-Way Valve: Wall Connections; Wall Connection with 90° Elbow Fitting


iVector S2
Installation manual
iVector S2 • 2022-07-01
US
A
C
B
D
21 (13/16)
527 (20-3/4)
152 (13)
69 (2-3/4)
311 (12-1/4)
500.2 (19-11/16)

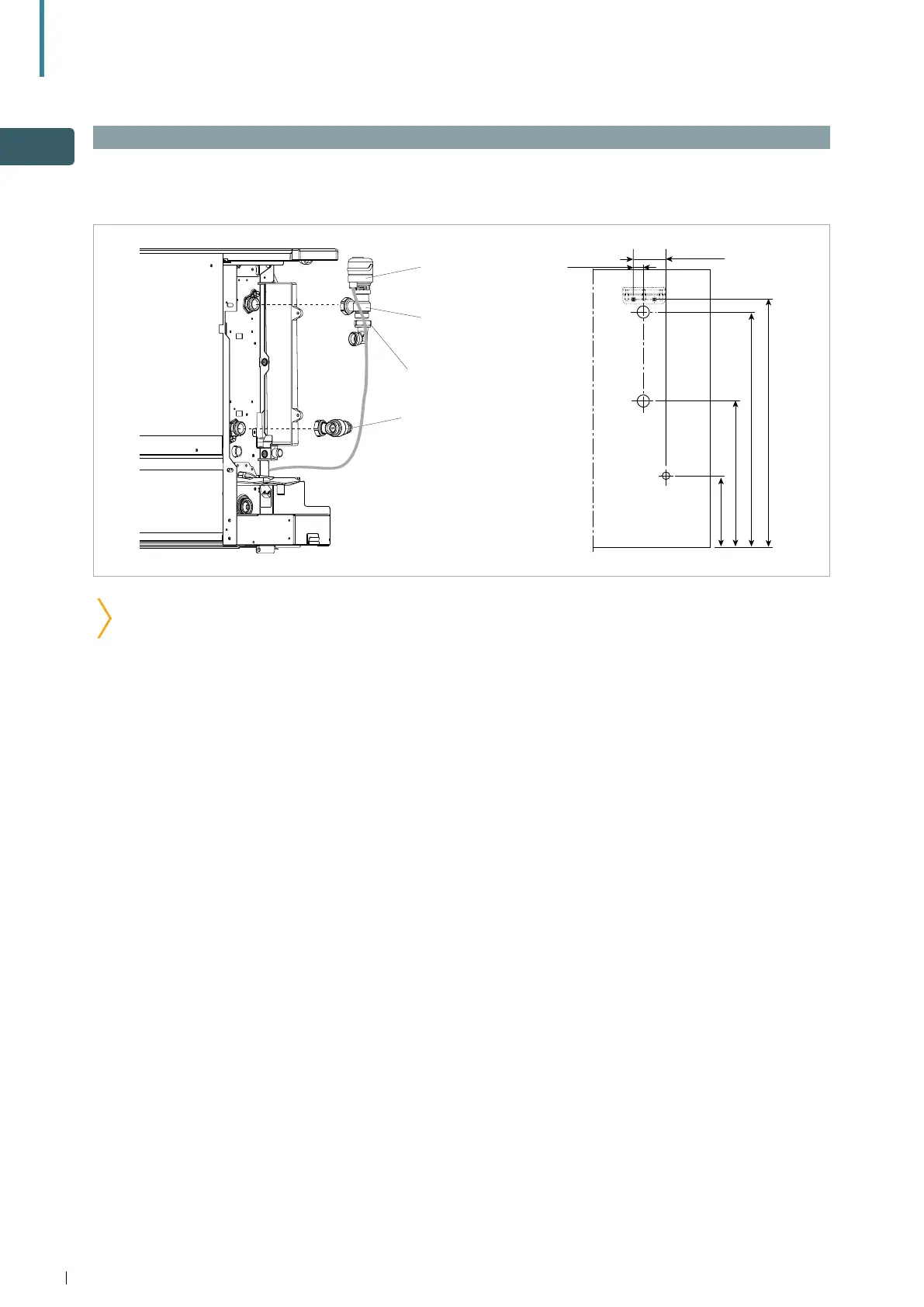

Pipe connection from wall – with optional 90° elbow fitting
A Valve actuator B 2-way valve
C 90° elbow fitting (optional – supplied as
accessory)
D Return valve connection
PLEASE NOTE: valves are factory fitted but not
tightened. For through-the-wall connections 90°
elbow C or similar should be used.
