N.B.
: Make sure you do not glue the keypad flex underneath the keypad support.
N.B.
: In the event that the keypad is not positioned correctly, peel it off right away with extreme care
and repeat the positioning.
N.B.
: It takes up to 24 hours for the keypad to stick completely. During this time, do not expose the
helmet to atmospheric agents.
• Line up the keypad flex connector to the e-box making sure that the letter “
n
” is pointing as shown
in Fig. 6.
• Gently position the connector in its seat until it is all the way in (Fig. 7).
• Connect the battery to the wiring system (Fig. 8).
• Switch on the N-Com system (press “
ON
” for about 2 seconds) to verity its proper operation.
N.B.
If the system does not work, remove the flex and repeat the previous operation, making sure
that the “
n
” is positioned as in Fig. 6.

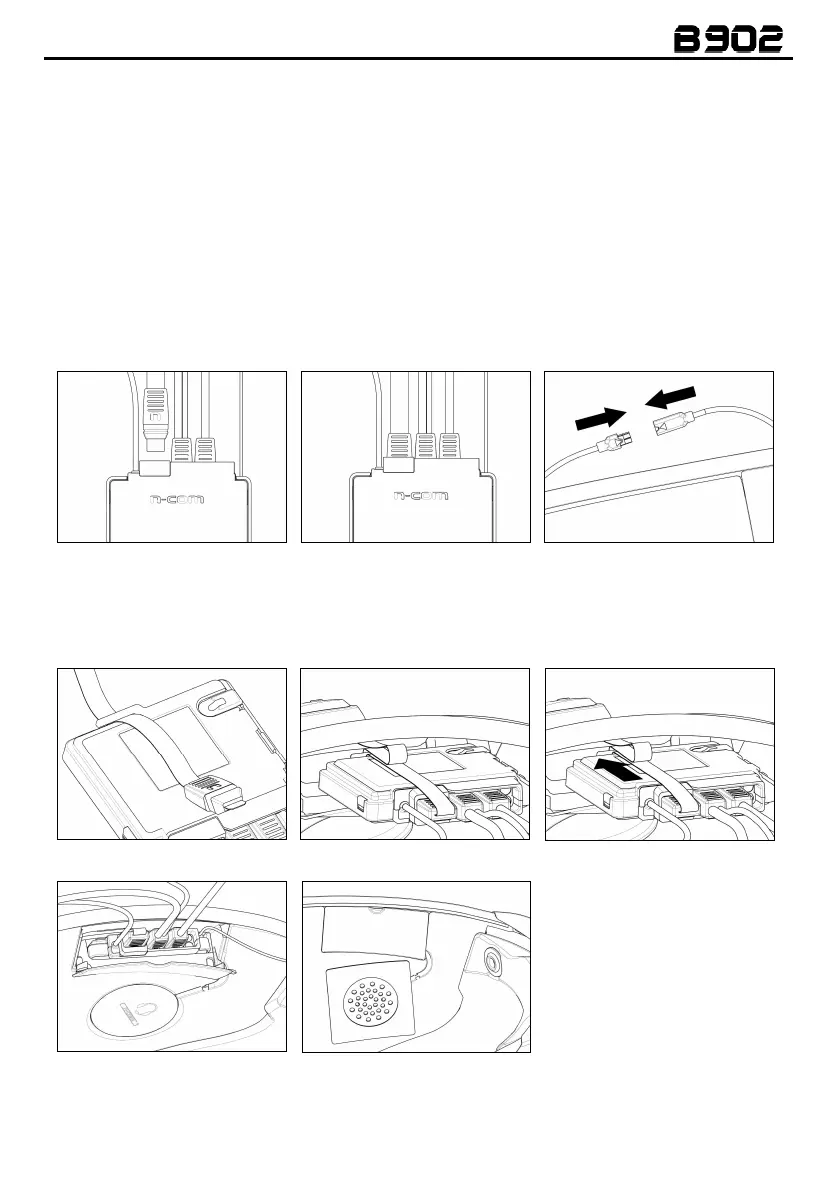

Fig. 6 Fig. 7
Fig. 8
• Secure the keypad flex in the specials stop (Fig. 9).
• Position the e-box in its seat, arranging the keypad flex cable so that it does not interfere with the
positioning of the e-box, as illustrated in figures 10-11-12.
Fig. 9 Fig. 10
Fig. 11
Fig. 12
Fig. 13
•
Position the left loudspeaker
in its seat, inserting the
cable in the special groove.
If necessary, secure the
earphone using the adhesive
supplied as standard
equipment (Fig. 13).
