4.
INSTALLATION ON THE X-LITE HELMETS
This procedure must be followed for the installation of N-Com systems on X-lite helmets other than
model X-1005 and X-903.
Important
: Prior to installing the N-Com system, it is recommended to write down the identification
code affixed to the product (see chapter 22.4).
The installation video can be seen at www.n-com.it / Support section.
4.1.
Preliminary operations
• Remove the internal comfort padding by following the specific instructions provided in the helmet
user manual.
• If present, remove from the polystyrene cheek pads the foam filling material that cover the
housings of the N-Com earphones. Keep this filling materials should you decide in the future to
use the helmet without the N-Com system installed.
4.2.
Installing the system in the helmet
• Connect the battery to the wiring system (Fig. 27).
• Position the battery in the right polystyrene cheek pad housing and secure it using the Velcro
ribbon (Fig. 28).
• Position the right-hand side speaker in the specific cheek pad housing and secure it using the
specific adhesive (Fig. 29).
• Reposition the right polystyrene cheek pad in its housing.
ONLY FOR FULL-FACE HELMETS
: Insert the chin strap into the polystyrene cheek pad loop.

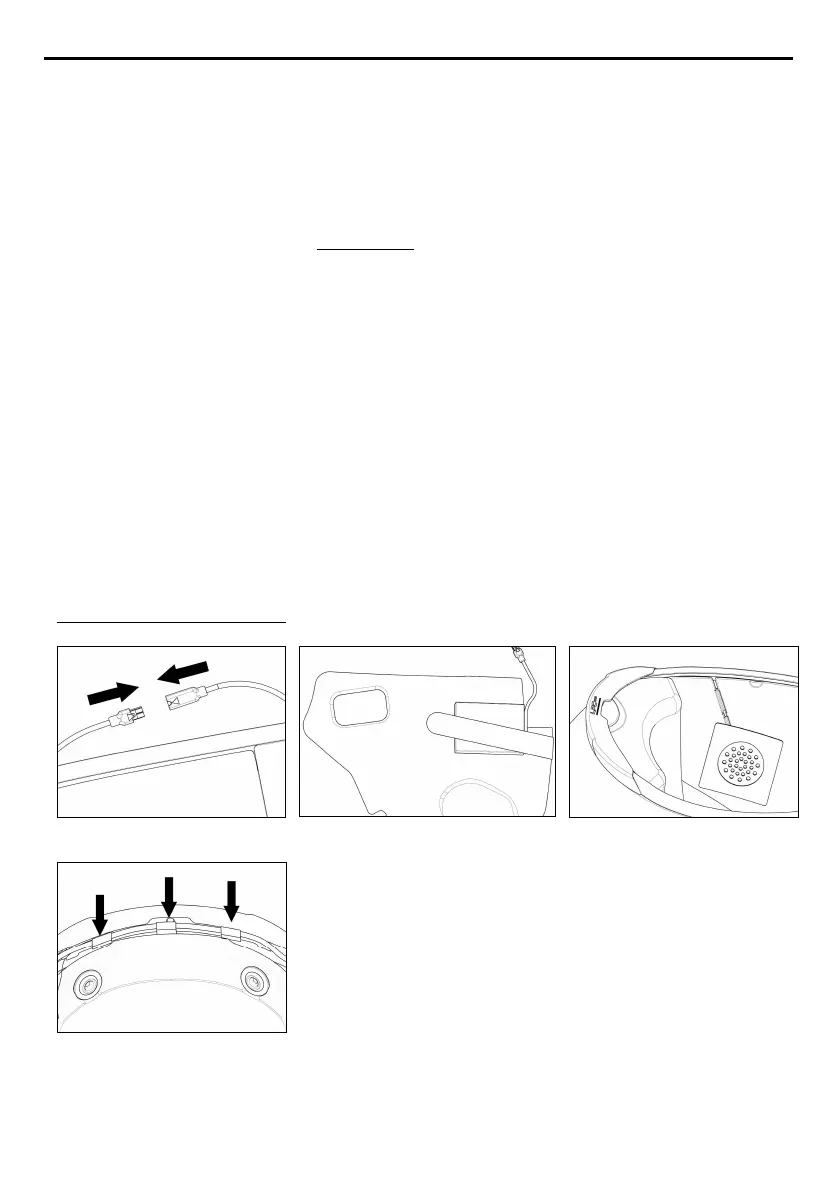

Fig. 27
Fig. 28
Fig. 29
Fig. 30
• Arrange the battery connector behind the polystyrene cheek
pad.
• Position the wiring and the antenna at the back of the helmet
(Fig. 30).
