LogicalView

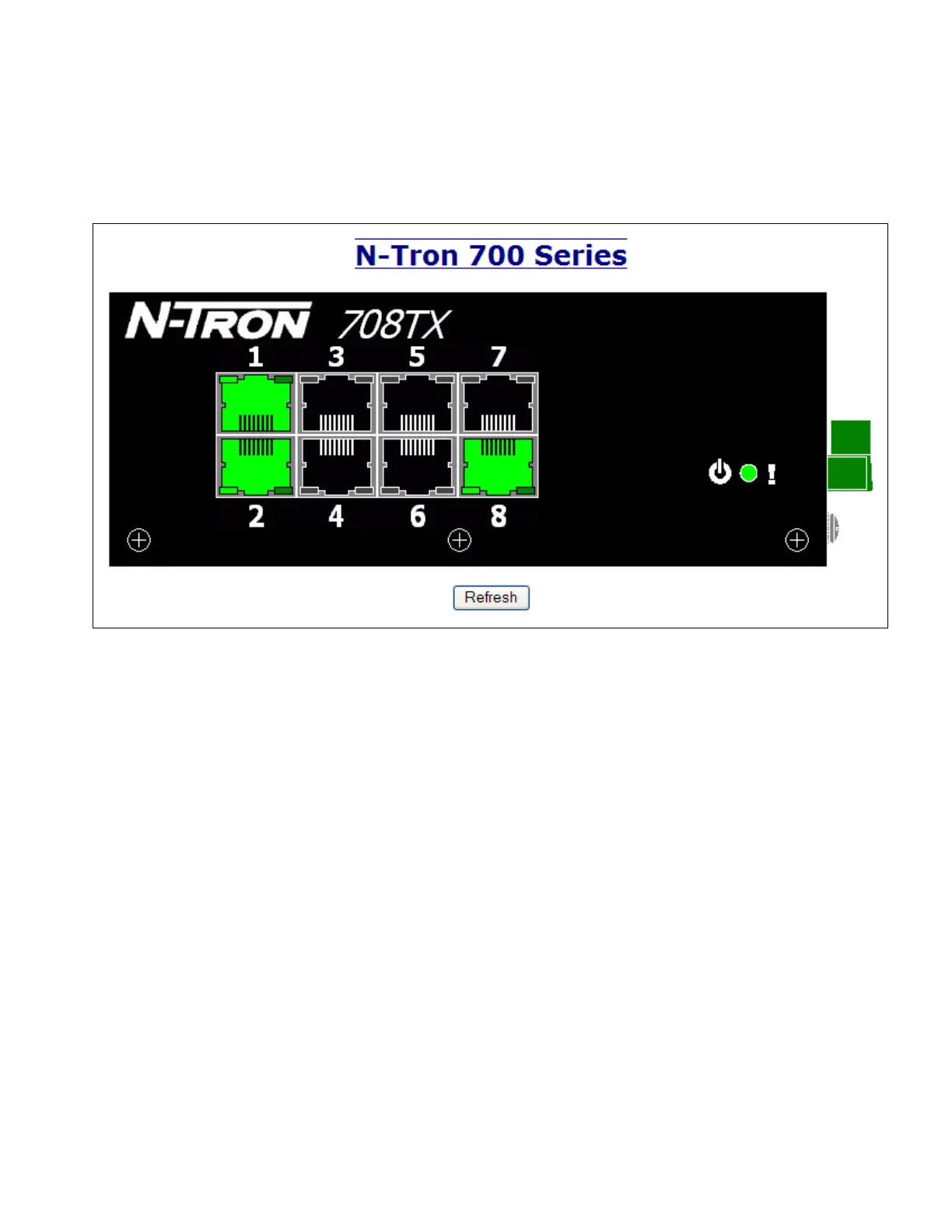

The 708 Web Management offers a logical view of the switch. Here a user or administrator can see a
graphical depiction of the 708 switch. Ports that are linked will appear in green, while ports that are not
linked will appear in black. The example below shows ports 1, 2, and 8 linked. The other ports are
currently in the down state (not being used).
