N-Tron 708FX2 - Status

(Revised 2015-09-28) Page 90 of 157
N-Ring – Status
The Status tab under the N-Ring category will display the N-Ring status.

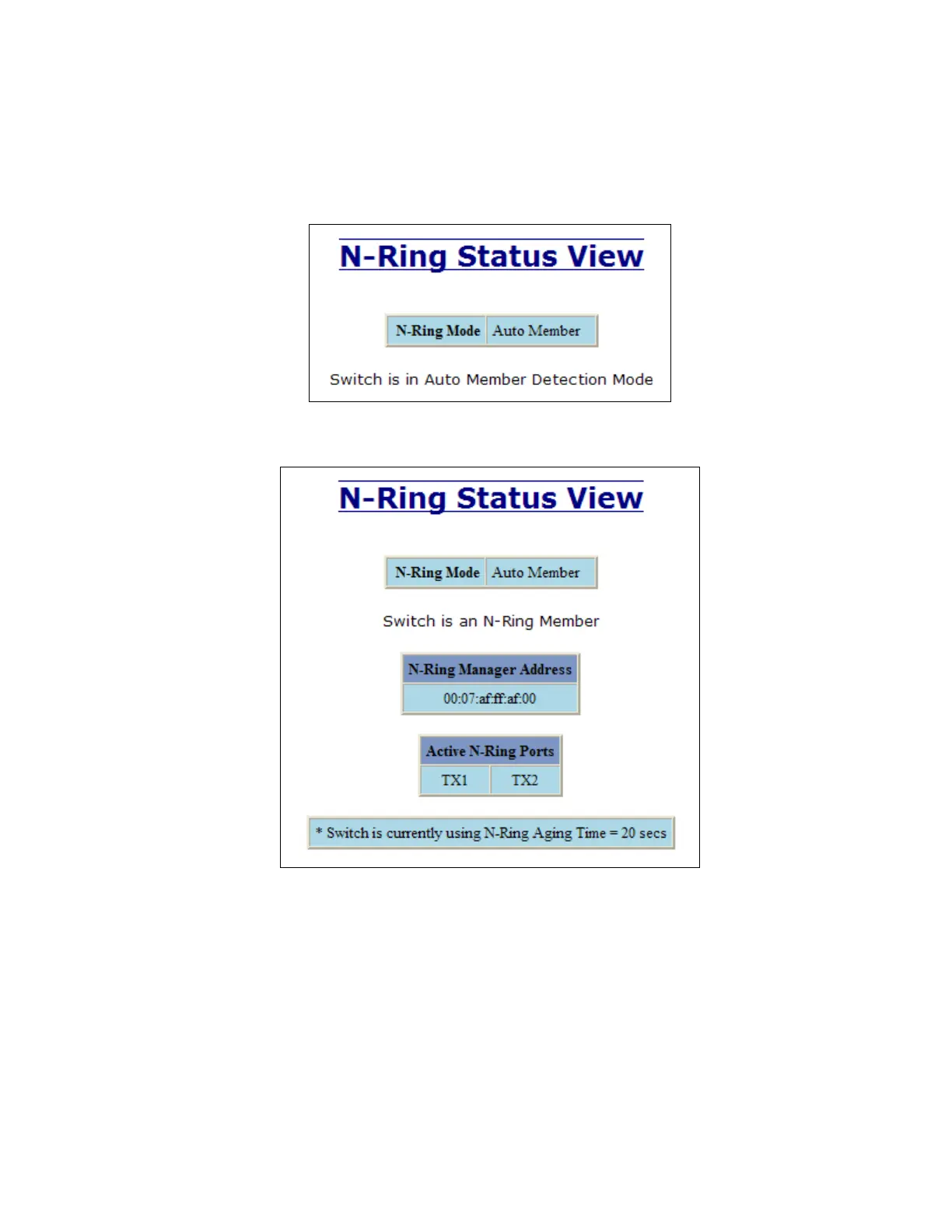

Below is an example of N-Ring Status from a switch in defaults (N-Ring Auto Member) that is not an
N-Ring Manager and has not become an “Active” N-Ring Member:
Below is an example of N-Ring Status from an “Active” N-Ring Member:
