Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 12 -
DN0032
Hydraulic Closer The door closer has an adjustment for “opening force” when the doors is used in a
manual mode that is preset at the factory. The setting is based on a 30-inch
exterior door and a 38-inch interior door. Adjustments are made using an allen
wrench as shown in Figure 7. Turn the screw clockwise for larger doors and
counterclockwise for smaller doors.

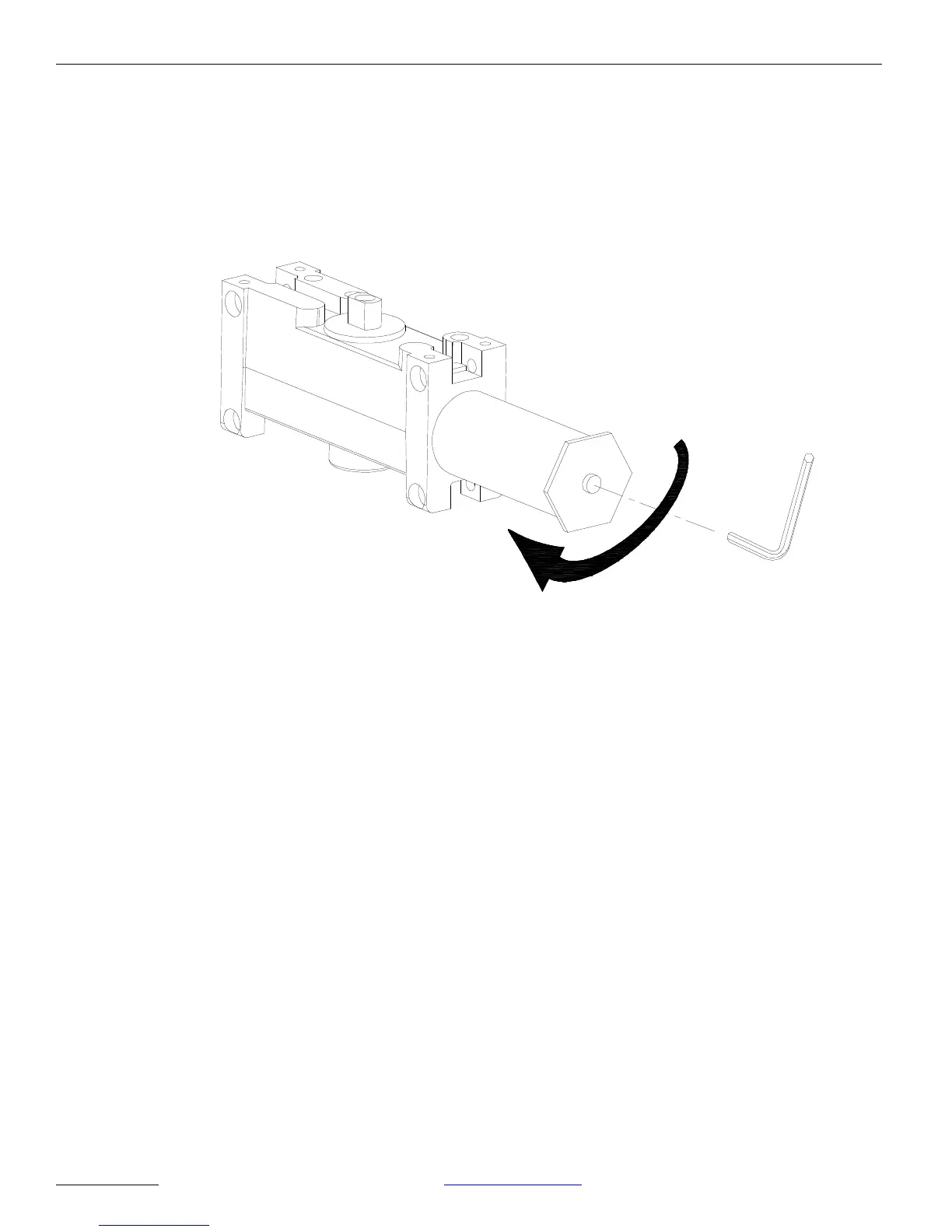

Figure 7 – Hydraulic Closer.
