Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 15 -
Door Closed Switch
Door Closed Switch
Back Check Switch
Back Check Switch
DN0042
DOOR OPEN 45°
Rotation

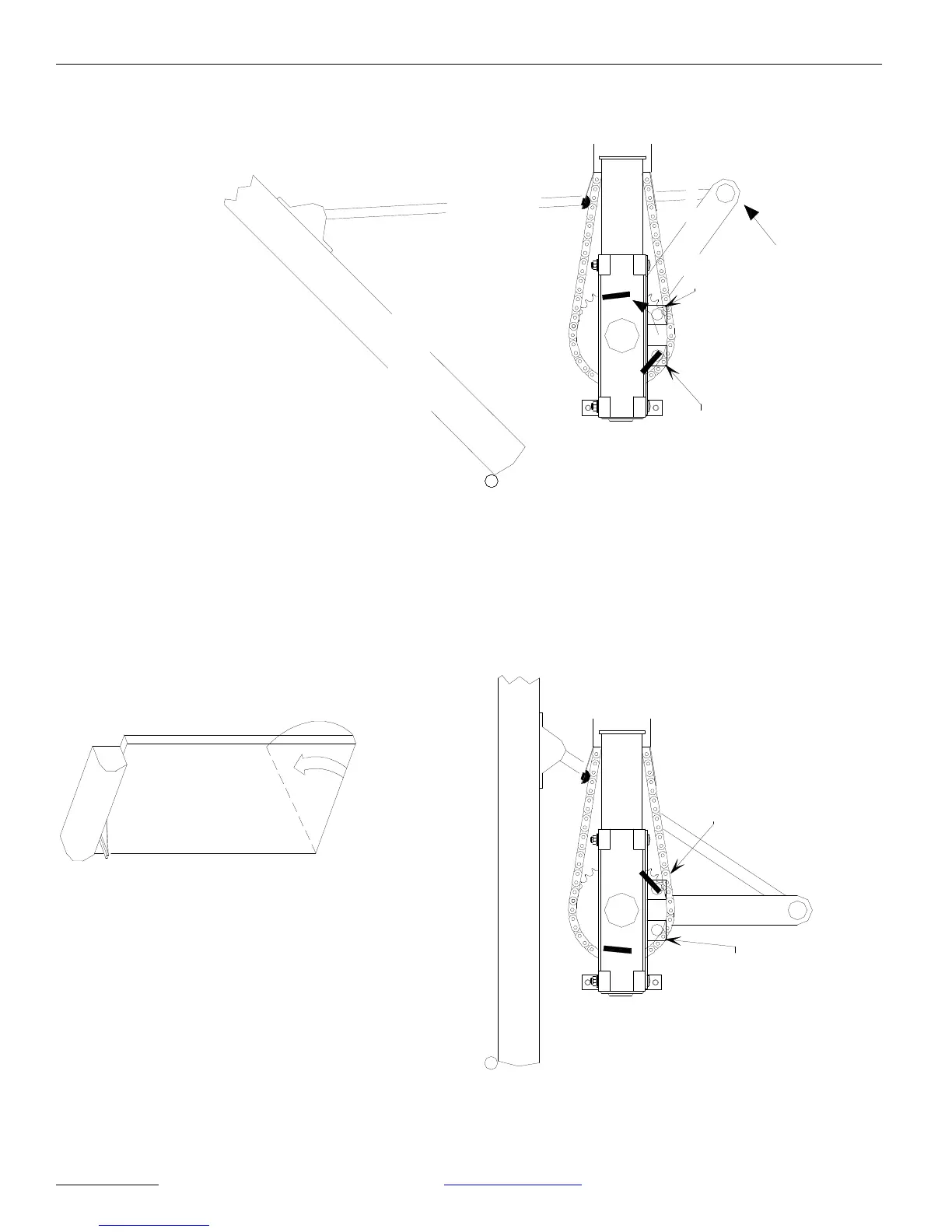

With door in the closed
position, place magnets
"White Side Up"
in positions shown.
When door is open 45°,
magnets should end up
in positions shown.
Left Hand Outswing
DOOR CLOSED
Figure 10 – Left Hand Outswing
