Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 18 -

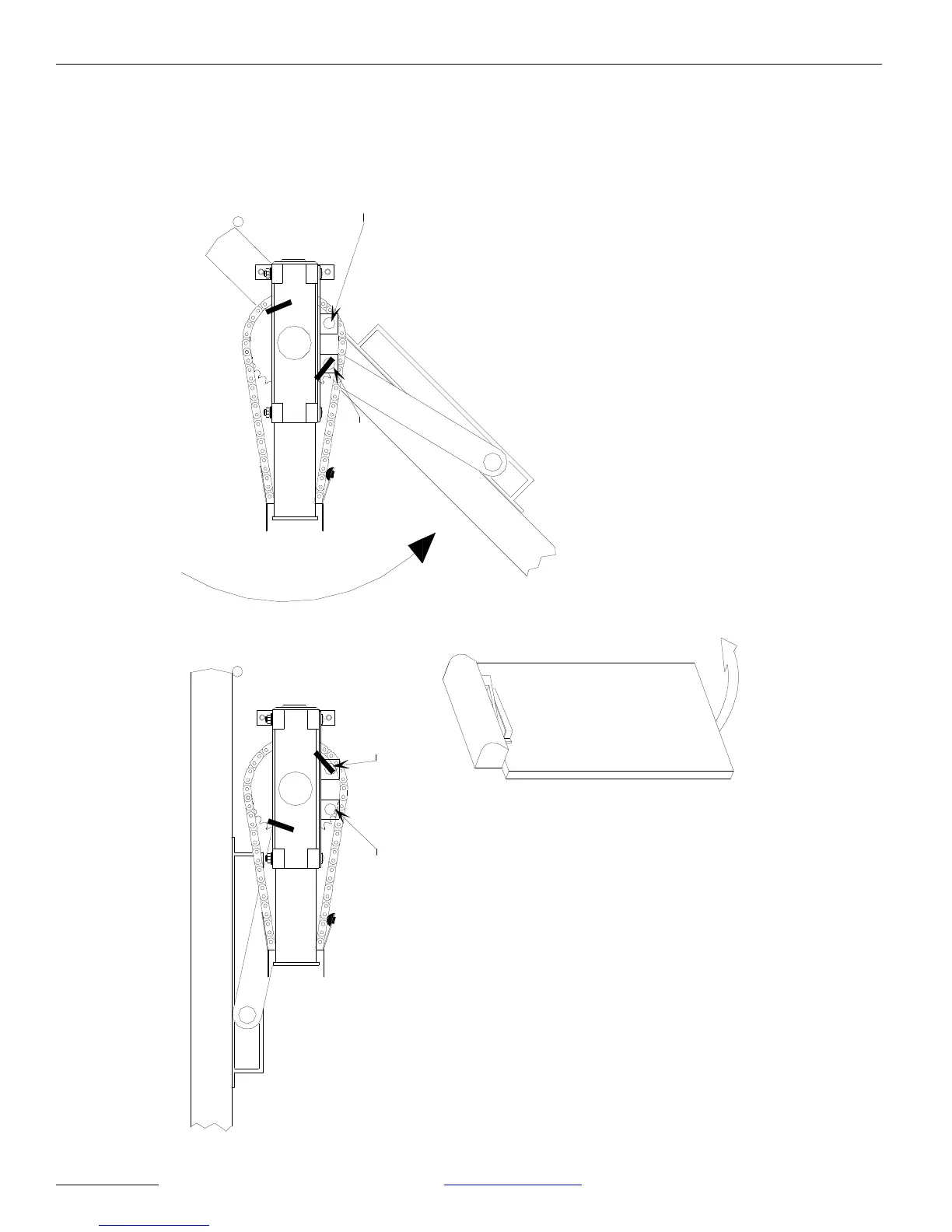

DOOR CLOSED
With door in closed position,
place magnets
"White Side Up"
in positions shown.
DN0045
DOOR AT
45°
When door is at 45°,
magnets should end
up in positions shown.
Left Hand
Inswing
Back Check Switch
Door Closed Switch
Back Check Switch
Door Closed Switch
Figure 13 – Left Hand Door Inswing Shown
