15 of 53
www.NabcoEntrances.com GT1175 (H105 Medium) Hurricane Quick Set-Up and Parts Guide
Rev 8-10-16 P/N C-00106
3. Loosen (1) Nut on each Roller by inserng (1) 7/32” Allen wrench into the exposed end of a Roller Axle. Hold the 7/32” Allen
wrench in place to keep the Roller Axle staonary. At the same me, loosen (1) 7/16-20 Whizlock nut with a 15/16” Open
End Wrench.
4. Slightly lt the Slide door to make it easier for the (6) Carrier Rollers to ‘catch’ onto the track.
5. With Slide door lted install the Carrier onto the Track.

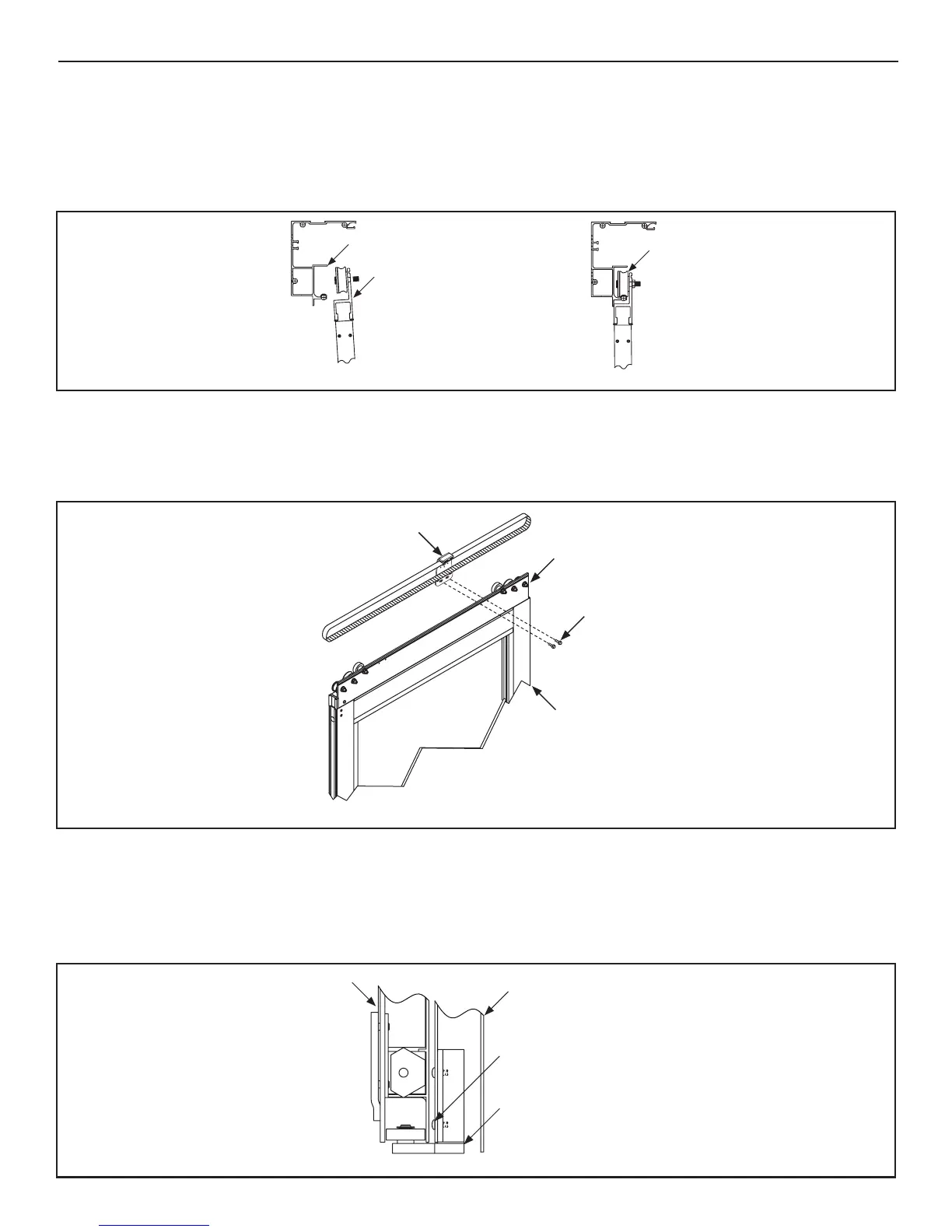

Figure 24 Install Carrier onto Track
Track
Carrier
Roller
DN 0779
1. Go to the Strike Side of Carrier.
2. Line up (2) screw holes located on the Carrier with (2) screw holes located at the boom of the Belt Clip bracket.
3. Secure the Belt Clip to the Carrier with (2) 1/4-20 x 3/4 inch Tri-Lobe Head screws provided by NABCO.
Figure 25 Secure Belt Clip to Carrier
1/4-20 x 3/4”
Hex Head Screw
Belt Clip
DN 0884
Carrier
Strike S le
FOR FULL OPEN UNITS SKIP TO
SUBSECTION 6.4
1. Go to Boom Rail of Fixed Sidelite. Locate the Double Roller Assembly previously installed. The Bracket will be scking out
from underneath.
Figure 26 Install Sliding door to Double Roller Assembly
Double Roller Assembly
DN 1018
Slide Door
Fixed Sidelite
#10-32 x .50
Phillips Head Screw
To Next Page
