Nabco GT20 Programming Manual

Rev. 10-7-16 Part #C-00140
www.NabcoEntrances.com GT20 Control Wiring and Programming Manual
 

DN 1263

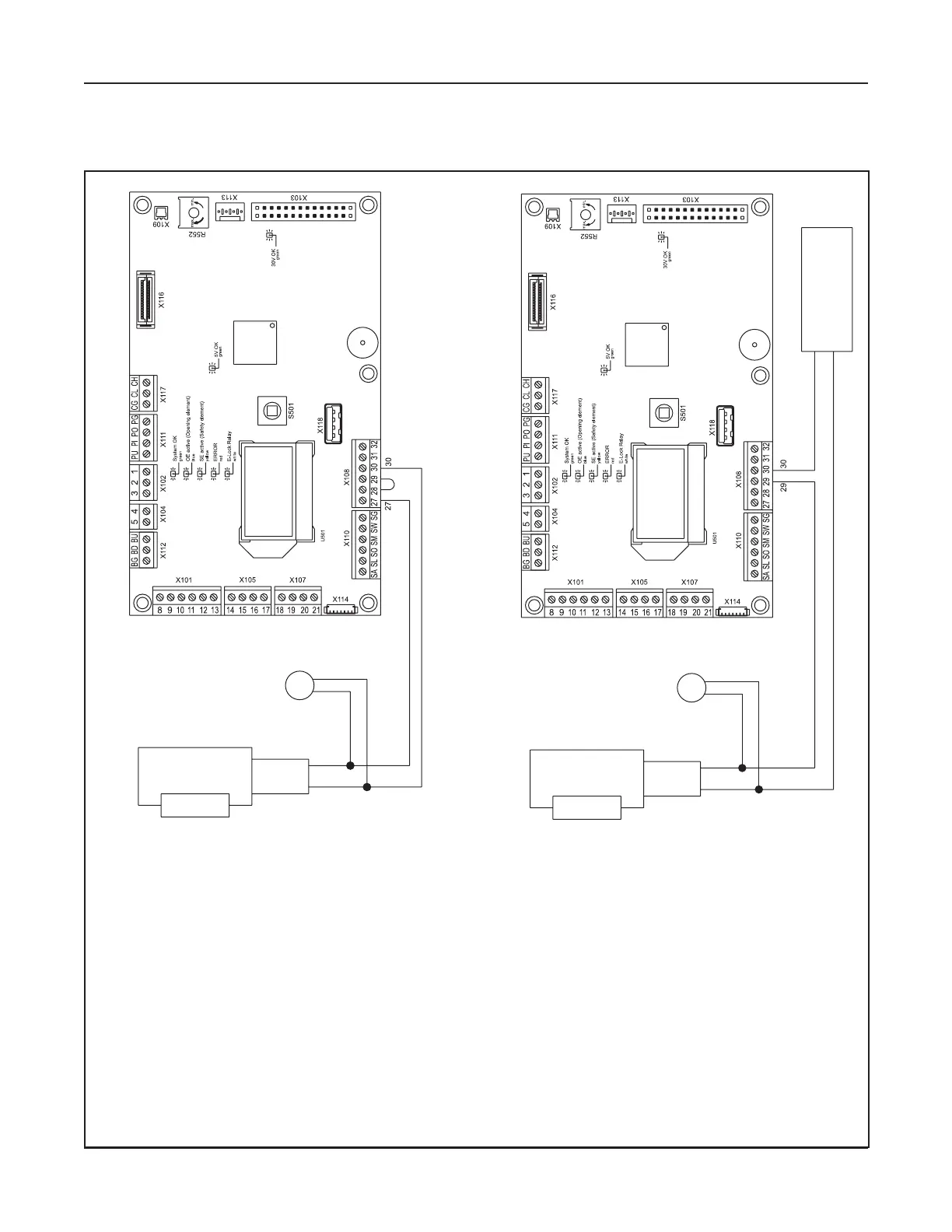

FAIL SECURE LOCK: POWERED BY THE GT20 CONTROL
• FAIL SAFE and MAG Locks are wired to
Terminal 31 (EL-NC) instead of 30 (EL-NO).
• If the FAIL SECURE Lock has a built-in
FeedBack Switch, connect the Feed-Back
Switch to T
erminals 28 (GND) and 32 (EL-Fb).
• Jumper provided by NABCO is needed
between Terminals 28 (GND) and 29 (EL-COM).
• Power fo
r Lock: 24 VDC (800mA max.)
FAIL SECURE LOCK: POWERED BY OTHER SOURCE
• FAIL SAFE and MAG Locks are wired to
Terminal 31 (EL-NC) instead of 30 (EL-NO).
• If the FAIL SECURE Lock has a built-in
FeedBack Switch, connect the Feed-Back
Switch to T
erminals 28 (GND) and 32 (EL-Fb).
• If present, REMOVE the Jumper between
Terminals 28 (GND) and 29 (EL-COM).
FAIL SECURE
Electric Strike
FAIL SECURE
Electric Strike
Varistor
(MOV, TVS)
Varistor
(MOV, TVS)
Power Supply For
Electric Strike
