Nabco GT20 Programming Manual

GT20 Control Wiring and Programming Manual www.NabcoEntrances.com
Part #C-00140 Rev. 10-7-16

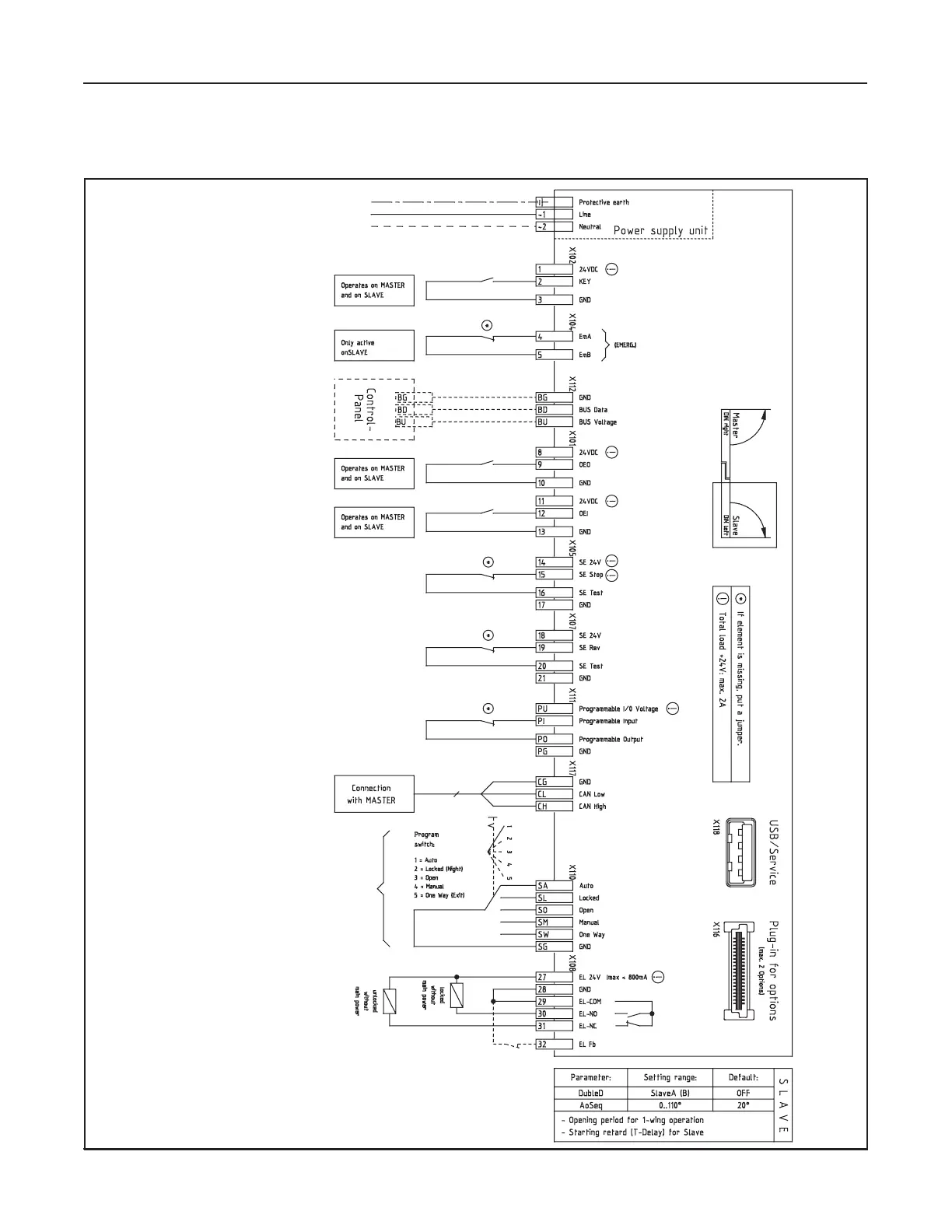

5-16 General Wiring

DN 1266
Header Mounted Presence Sensor
CAN-BUS
External Program Selector
Motor Lock or Electric Lock for Master
Optionally: Feedback signal
Motor Lock or Electric Lock
Softswitch El Fb NO/NC
Safety Element Reversing
Swing Door Mounted Sensor
Opening command inside
Opening command outside
Option Control-Panel
Emergency Close
Emergency Stop
Bolt Switching Contact
Key-operated switch
Power supply 120, 60Hz
5 amp Service minimum per operator
