Nabco GT20 Programming Manual

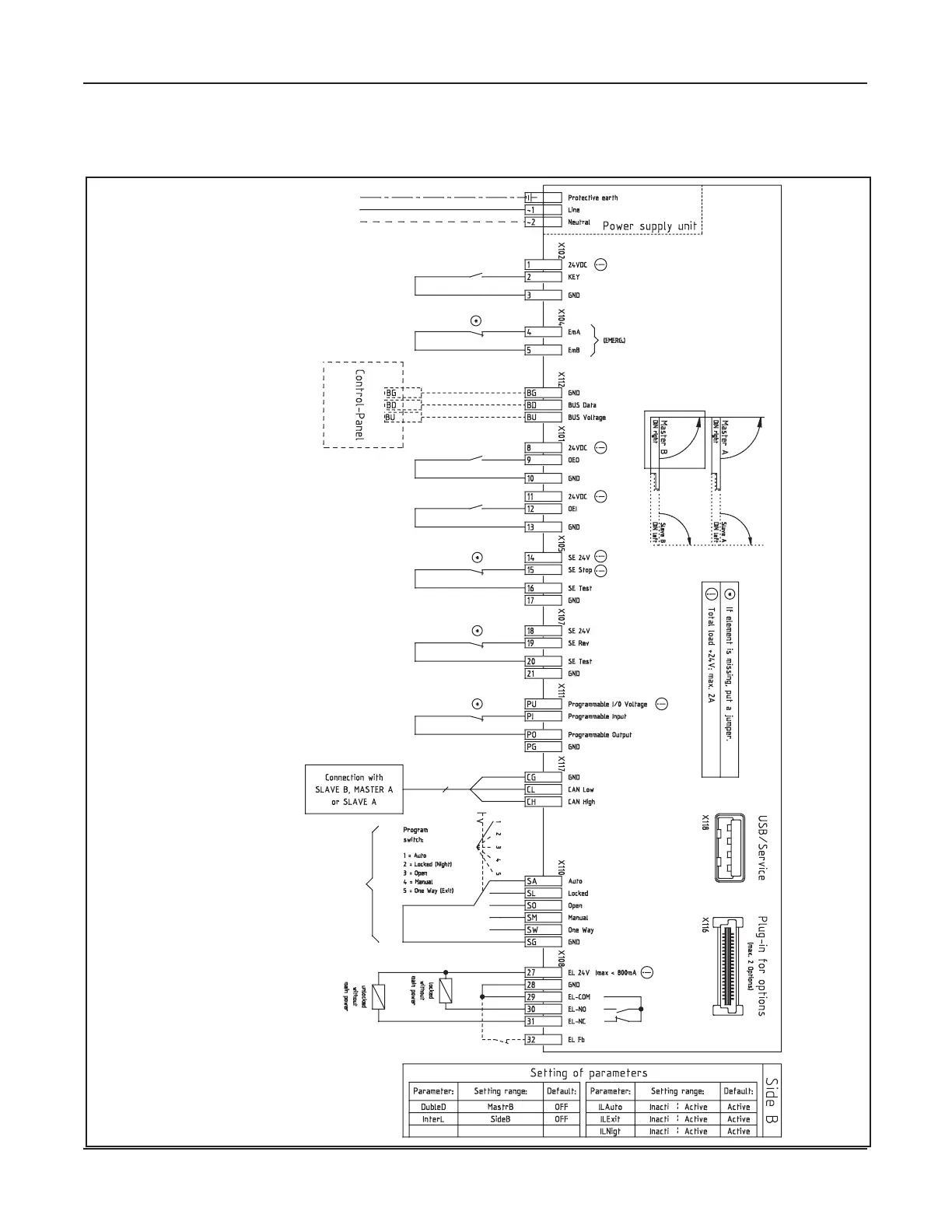

GT20 Control Wiring and Programming Manual www.NabcoEntrances.com
Part #C-00140 Rev. 10-7-16
5-18 General Wiring

Header Mounted Presence Sensor
CAN-BUS
External Program Selector
Motor Lock or Electric Lock for Master
Optionally: Feedback signal
Motor Lock or Electric Lock
Softswitch El Fb NO/NC
Safety Element Reversing
Swing Door Mounted Sensor
Opening command inside
Opening command outside
Option Control-Panel
Emerg.-closing/-opening
Emergency Stop
Key-operated switch
Power supply 120, 60Hz
5 amp Service minimum per operator
DN 1269
