Nabco GT20 Programming Manual

Rev. 10-7-16 Part #C-00140
www.NabcoEntrances.com GT20 Control Wiring and Programming Manual

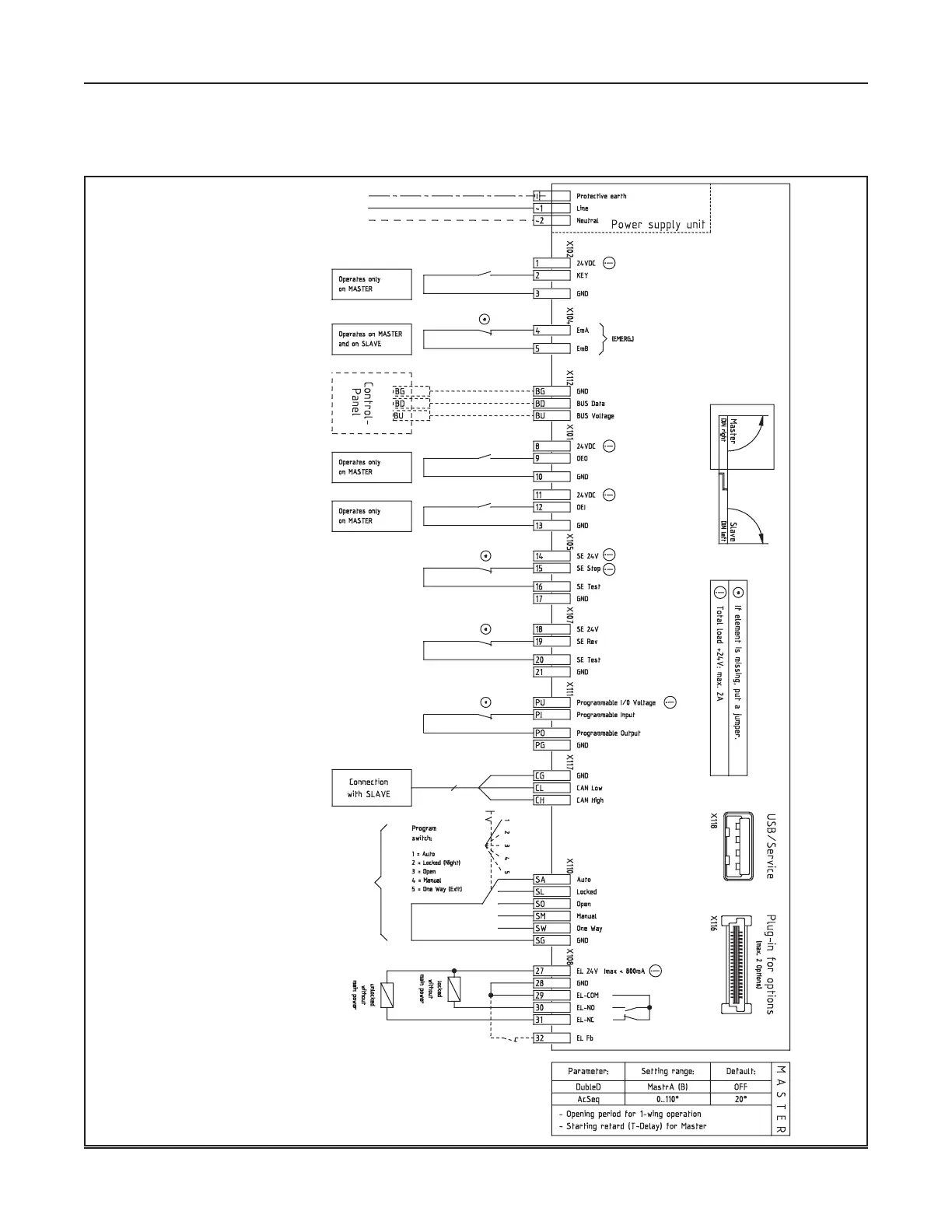

General Wiring 5-15

DN 1267
Header Mounted Presence Sensor
CAN-BUS
External Program Selector
Motor Lock or Electric Lock for Master
Optionally: Feedback signal
Motor Lock or Electric Lock
Softswitch El Fb NO/NC
Safety Element Reversing
Swing Door Mounted Sensor
Opening command inside
Opening command outside
Option Control-Panel
Emerg.-closing/-opening
Emergency Stop
Key-operated Switch
Power supply 120, 60Hz
5 amp Service minimum per operator
