GT20 Swing Door Owners Manual www.NabcoEntrances.com
Part #C-00170 Rev. 8-29-17
8 of 10

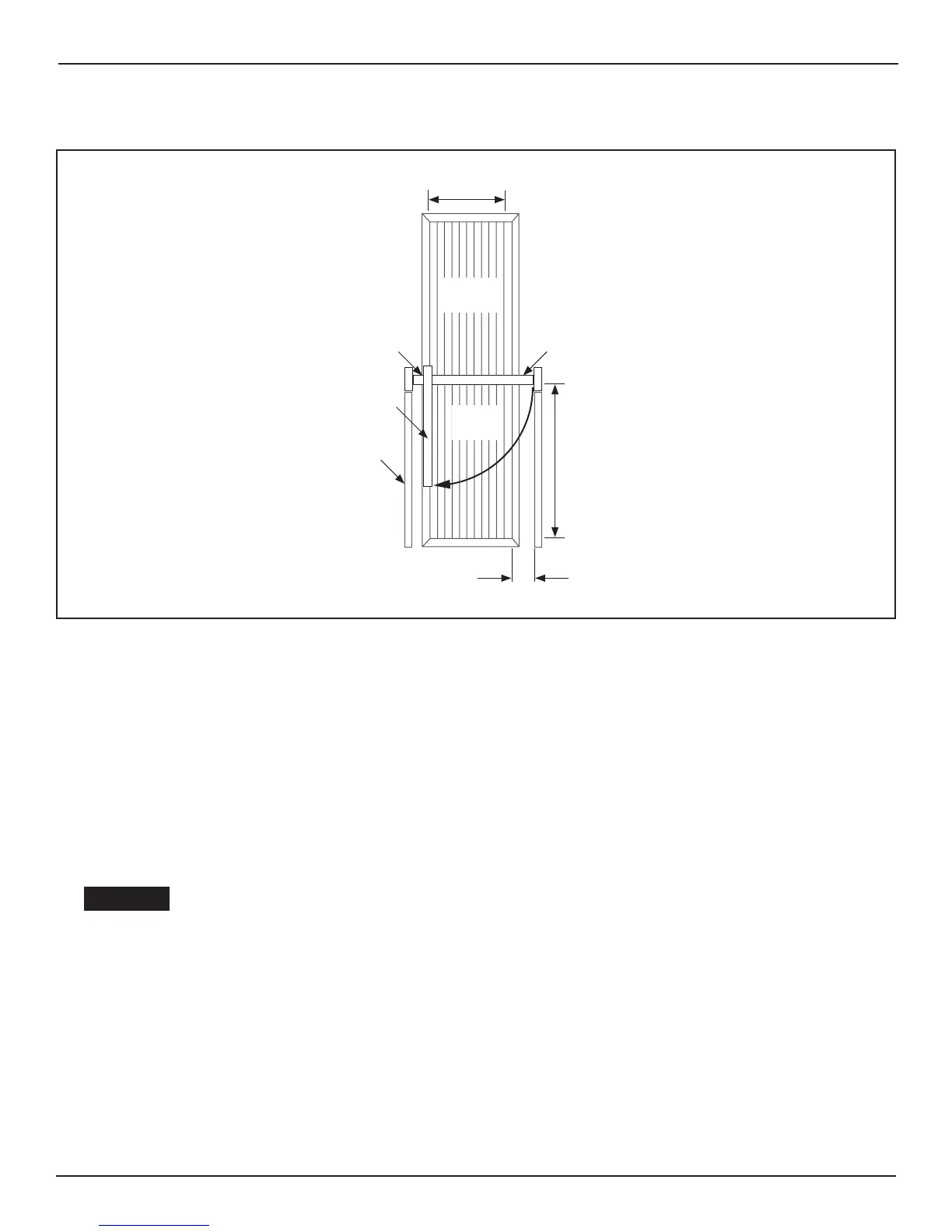

7.4.4 Mat Acvaon Check for Acvang Side of Swing Door
DN 1737
Guide Rail
Minimum length to end of
door in open posi on
Minimum Required
Exposed Length
Door Pivot
Ac va ng
Mat
Safety
Mat
Threshold
Swing Door
Exposed Length
Activate Floor Mat
Ensure Floor Mat is in (1) piece and secured with all screws required.
Walk onto the Activating Mat.
Continue to walk through the Threshold, onto the Safety Mat.
Remain motionless for (4) seconds. The door should not contact the pedestrian.
Step off the mat.
a. After a brief time delay (at least 1-1/2 seconds), the door should fully close without impact.
b. If the Swing door closes (1) foot per second or faster, adjustments must be made.
Go back and step onto the Activating Mat in a different place.
Repeat steps 2-6 several more times.
7.4.5 Mat Acvaon Check for Safety Side of Swing Door
If the Safety Mat is not working, the door may swing toward you without stopping.
The purpose of the Safety Mat is to hold the door open, or return the door to the open position when approached by a
Ensure Safety Mat is in (1) piece and secured with all screws required.
With the Swing Door fully closed, walk onto the Safety Mat. At the same time, have someone else stand on the
Activating Mat.
a. As long as someone is standing on the Safety Mat, the Swing door should remain Fully Closed.
SECTION 7.5: Safety Decals for Full Automac Swing Doors
Doors shall be equipped with signage visible from either side of the door, instructing the user as to the operation and function
letters shall be 5/8 inch (16 mm) high minimum.
