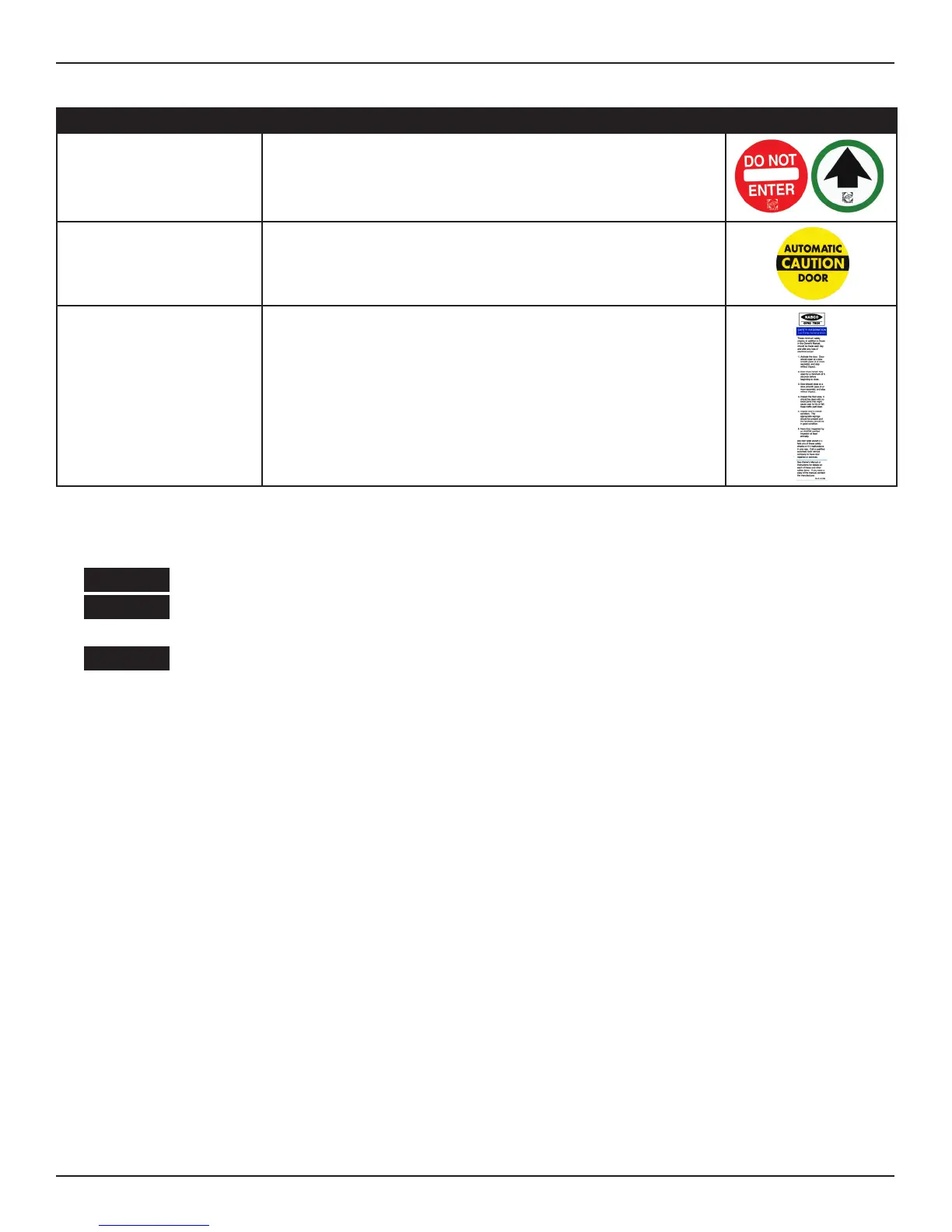

Decal Description
DO NOT Enter (side one)
Directional Arrow (side two)
X
X Adhere to swing door panel.
X Must be visible from both sides.
Caution Automatic Door X Adhere to both sides of swing door panel.
X Must be visible from both sides.
AAADM
Safety Information Label
X (1) Safety Information sign shall be adhered to Jamb Tube on
Interior Side of Door Panel.
X The sign shall be a minimum of 9 inches tall. Black lettering
shall be a minimum of 10 point type on a white background.
White lettering shall be a minimum of 10 point type on a blue
background.
CHAPTER 8: LOW ENERGY SWING DOOR
Secon 8.6: Daily Safety Check
If the Swing Door will not be used for at least (1) month, it is recommended to turn Power OFF to the Unit.
In order to guarantee reliability of the installaon, any components showing signs of wear must be replaced
as a prevenve measure.
If a Sensor is not working, the door may swing toward you without stopping.
must “relearn” the zone before resuming normal operation. Relearn may take a minute or two.
activating zones. The purpose of a Daily Sensor Check is to ensure pedestrian safety and Owner protection.
Ensure the Power Breaker is switched ON. Do not switch Power Breaker ON and OFF too quickly.
Ensure the (On/Off/Hold Open) Rocker switch is set to “ON”.
Activate the Swing Door.
Door should open at a slow smooth pace (4 or more seconds), and stop without impact.
Door must remain fully open for a minimum of (5 seconds) before beginning to close.
Door should close at a slow, smooth pace (4 or more seconds), and stop without impact.
Inspect door’s overall condition. The appropriate signage should be present and hardware should be in good
condition.
Remove anything that does not belong in the path of the Swing door. There should be no bulletin boards, literature
racks, merchandise displays, or other attractions in the door area that would interfere with use of the door or invite
people to stop or stand in the door area.
Ensure the Header Cover, and all other hardware is properly secured.
Check for damaged or missing Weathering.
