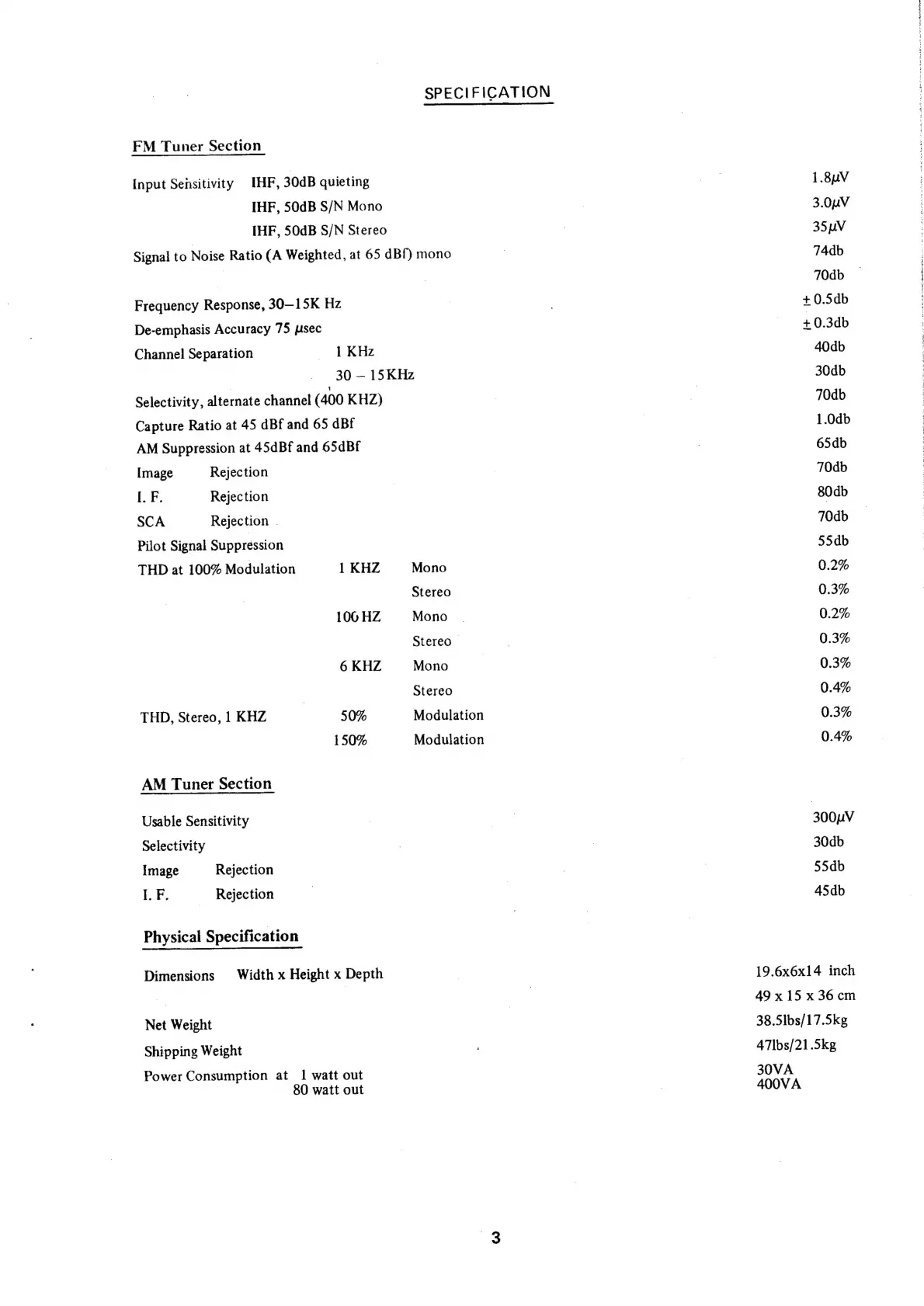

SPECIFICATION
FM Tuner Section
Input
Sensitivity
THF,
30dB
quieting
IHF,
50dB
S/N
Mono
IHF,
50dB
S/N
Stereo
Signal
to
Noise
Ratio
(A
Weighted,
at
65
dBf)
mono
Frequency Response, 30—15K Hz
De-emphasis Accuracy 75 psec
Channel
Separation
1KHz
30 — 1SKHz
Selectivity,
alternate
channel
(400
KHZ)
Capture
Ratio
at
45
dBf
and
65
dBf
AM Suppression at 45dBf and 65dBf
Image Rejection
I. F. Rejection
SCA Rejection .
Pilot Signal Suppression
THD at 100% Modulation 1KHZ = Mono
Stereo
106 HZ Mono
Stereo >
6 KHZ Mono
| Stereo
THD, Stereo, 1 KHZ 50% Modulation
150% Modulation
AM Tuner Section
Usable Sensitivity
Selectivity
Image Rejection
I. F. Rejection
Physical Specification
Dimensions Width x Height x Depth
Net Weight
Shipping Weight
Power Consumption at 1 watt out
80 watt out
1.8yuV
3.0uV
35yV
74db
70db
+0.5db
+ 0.3db
40db
30db
70db
1.0db
65db
70db
80db
70db
55db
0.2%
0.3%
0.2%
0.3%
0.3%
0.4%
0.3%
0.4%
300”LV
30db
55db
45db
19.6x6x14 inch
49x15 x 36cm
38.5ibs/17.5kg
47lbs/21 .5kg
30VA
400VA
