MOUNTING INSTRUCTION FOR THE C356BEE
The DAC Module is compatible with C356BEE. Using the supplied exible at
cable (FFC), DC power connector and screws, the DAC Module can be installed
in a C356BEE by undertaking the following procedure.

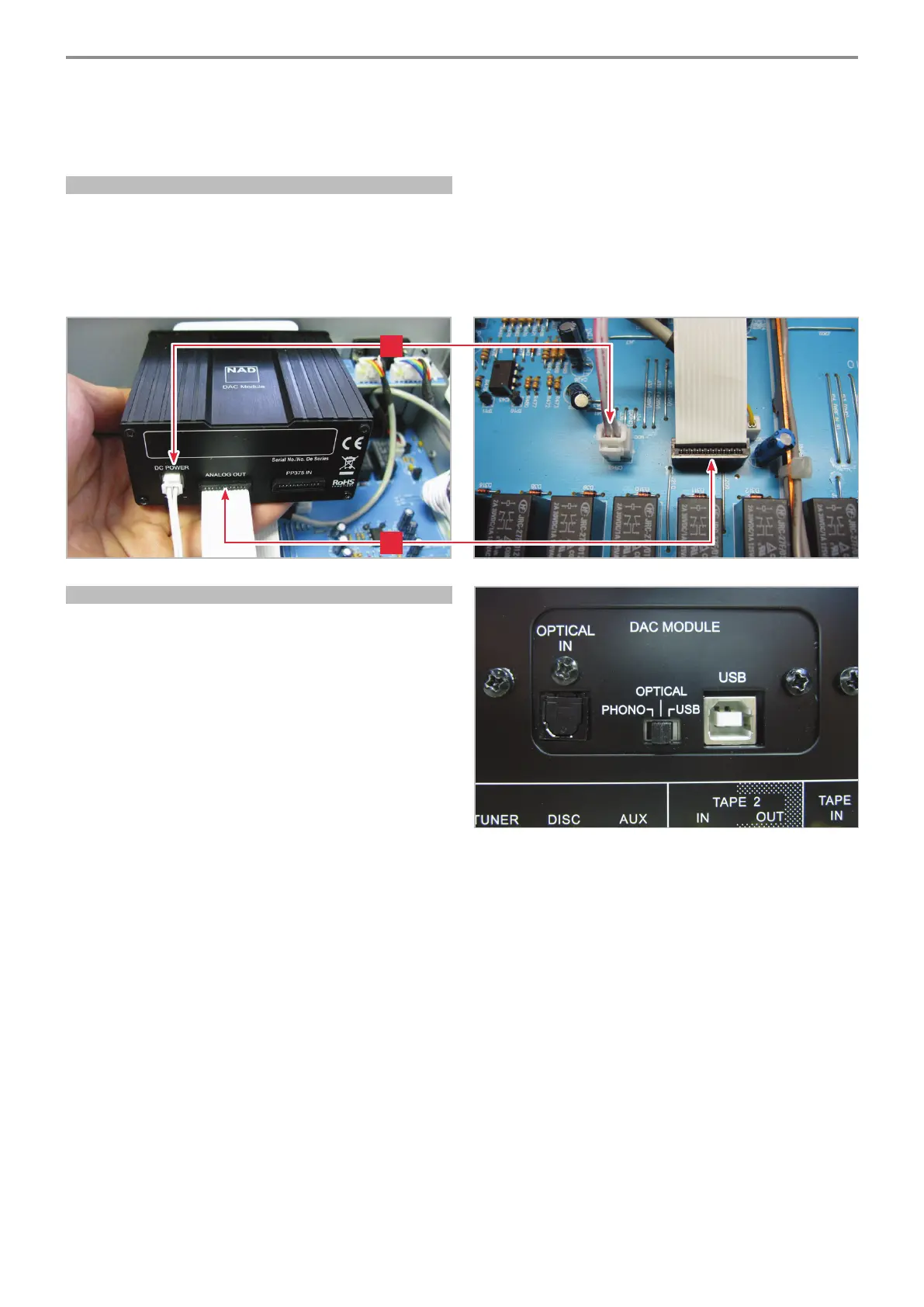

STEP 1
Pre-install the requisite cables to their respective connector points.
Connect the following
1 DC POWER connector from DAC Module to corresponding CB48 on
C356BEE’s main board.
2 FFC from DAC Module’s ANALOG OUT to CB36 on C356BEE’s main board.
Ensure good harnessing by exing and safely contorting the FFC and DC POWER
connectors.
STEP 2
Remove the dummy cover at the back of the C356BEE and install in its place the
DAC Module. Use the supplied screws to x into place the DAC Module.
