8

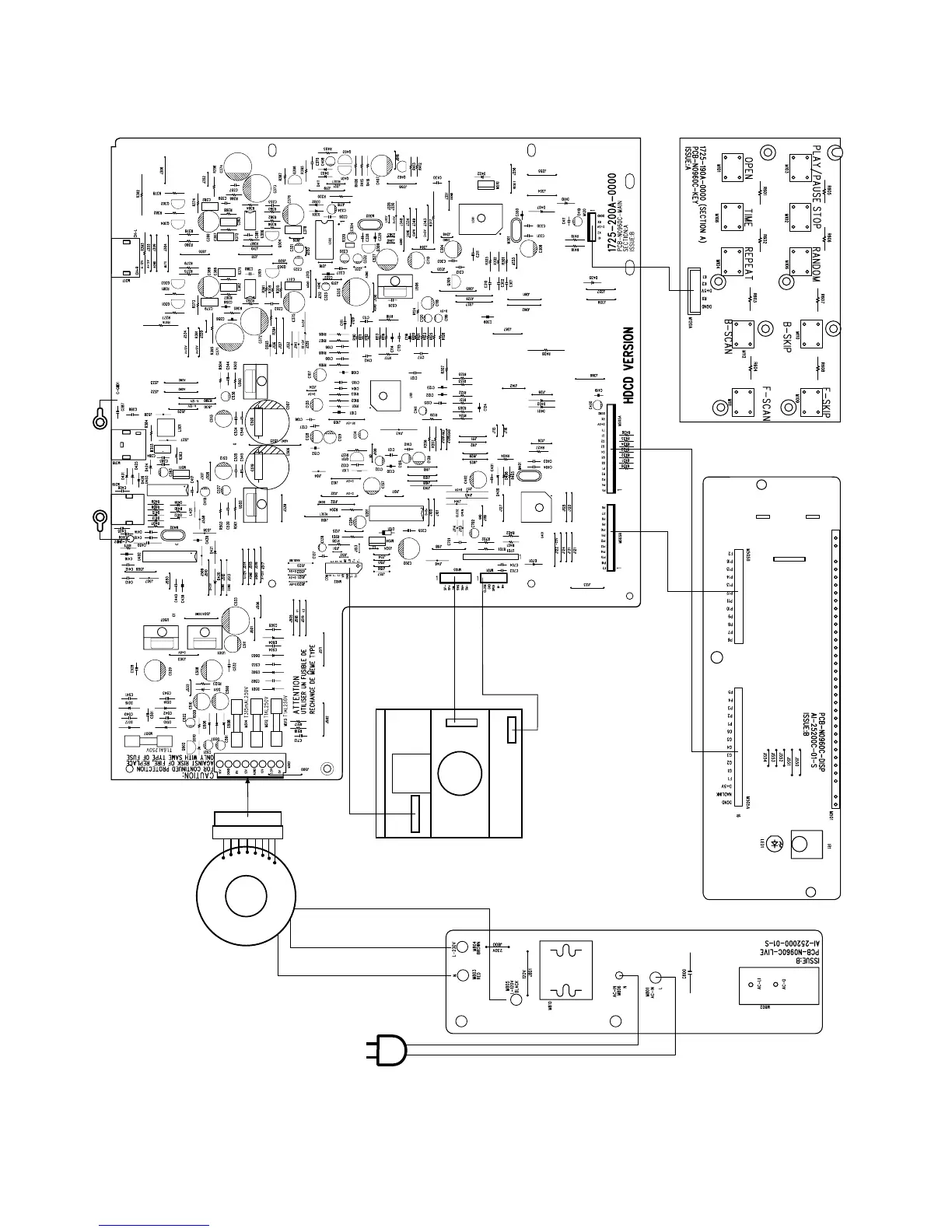

WIRING DIAGRAM
MAIN BOARD
KEYBOARD
LIVE BOARD
DISPLAY BOARD
M505B
M120A
M505A
BROWN
BLACK
RED
M502
M102 (15 PINS)
M105 (6 PINS)
M101 (5 PINS)
CD MECHANISM
TRANSFORMER
TO CHASSIS
NEUTRAL
LIVE
NAD
IN/OUT
