NAD C 558 User Manual

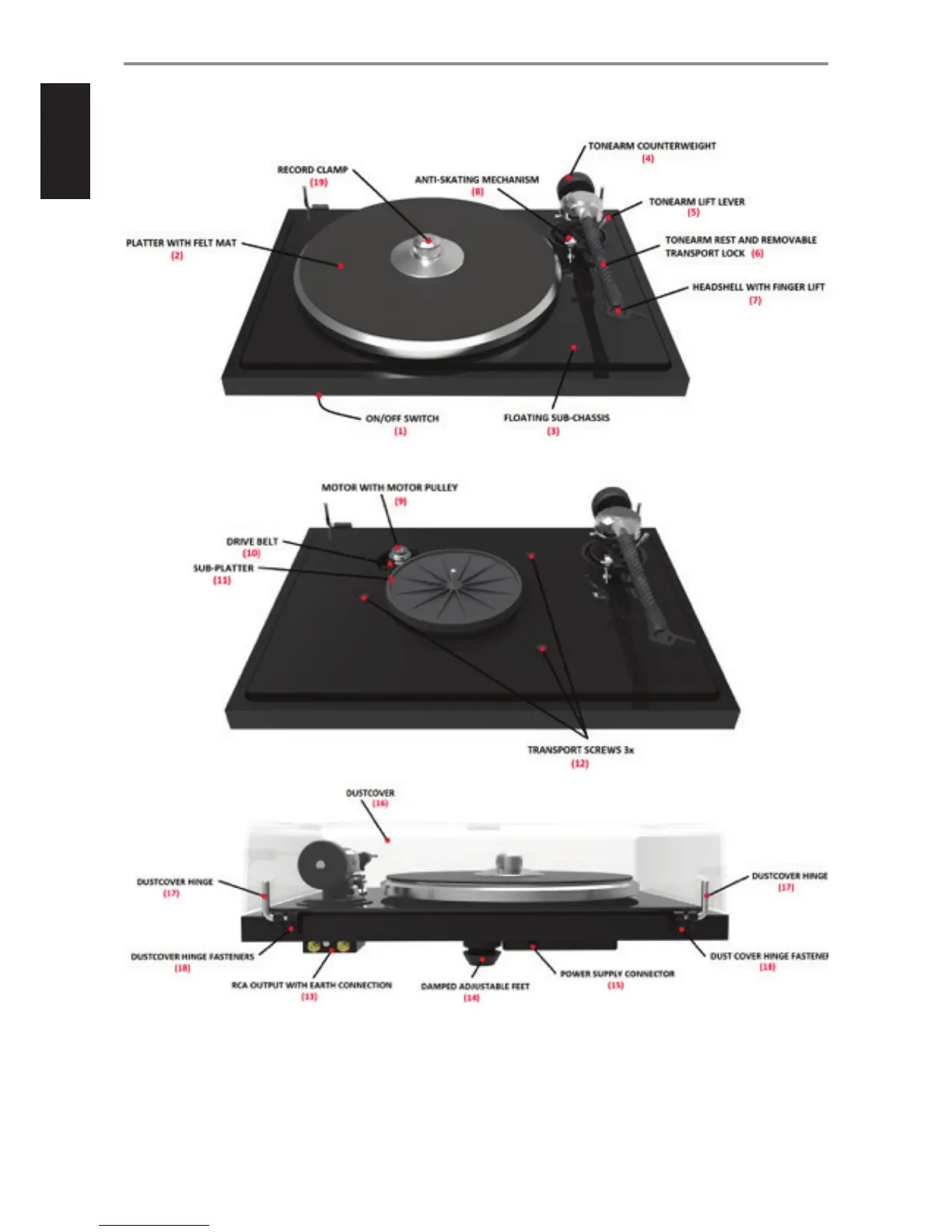

1 ON/OFF switch
2 Platter with felt mat
3 Floating sub-chassis
4 Tonearm counterweight
5 Tonearm lift lever
6 Tonearm rest and removable transport lock
7 Headshell with nger lift
8 Anti-skating mechanism
9 Motor with motor pulley
10 Drive belt
11 Sub-platter
12 Transport screws 3x
13 RCA output with earth connection
14 Damped adjustable feet
15 Power supply socket
16 Dustcover
17 Dustcover hinge
18 Dustcover hinge fasteners
19 Record clamp
IDENTIFICATION OF CONTROLS
FEATURES AND CONNECTIONS
4
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

NAD C 558 Specifications

General

Type	Direct drive audio turntable
Operation	Manual
Product color	Black
Nominal speeds	33, 45 RPM
Output voltage	4 mV
Turntable speeds	33 RPM
Channel separation	22 dB
Signal-to-Noise Ratio (SNR)	68 dB
Frequency range	20 - 22000 Hz
Package weight	8000 g
AC adapter frequency	47/63 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	0.8 A
AC adapter output voltage	15 V
Power consumption (standby)	0.3 W
Power consumption (typical)	5 W
USB ports quantity	-

Weight and Dimensions

Depth	125 mm
Width	435 mm
Height	340 mm
Weight	5500 g
