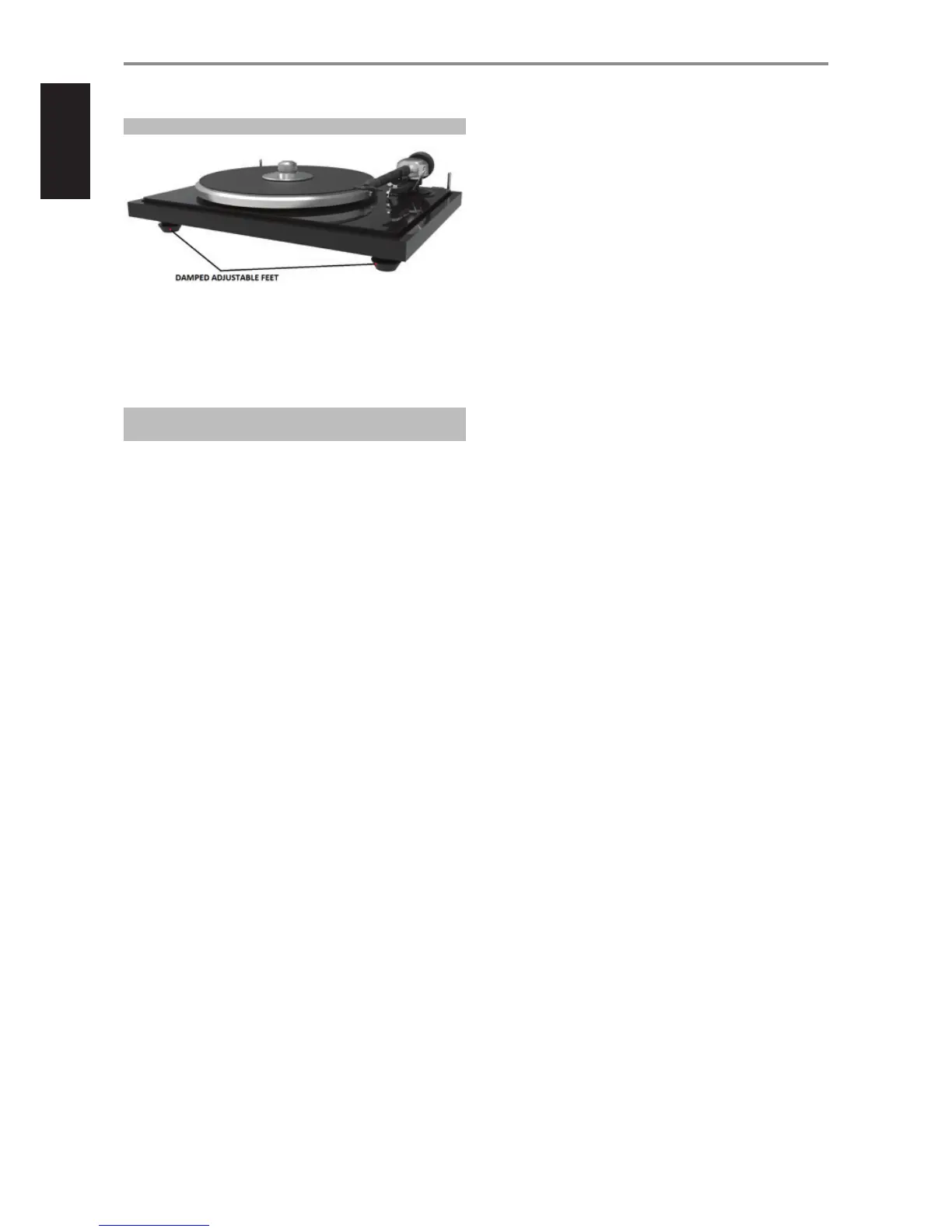

LEVELING THE TURNTABLE
Three precision adjustable damped feet are mounted under the turntable
for leveling the turntable. Once the turntable is in nal position, put the
supplied spirit level on the sub-chassis, and then level the turntable by
screwing or unscrewing the feet as needed. It is advisable to check level
from several positions on the subchassis.
USING THE CLAMP, STARTING THE MOTOR,
CHANGING THE SPEED
Using the clamp – after placing a record on the platter, place the record
clamp on the spindle and record. Do not screw the clamp for playback.
CONTROLING THE TURNTABLE
To start rotation of the platter, press the button ON/OFF switch (1)
To play 45 r.p.m., put the drive belt (13) over the larger diameter part
of the motor pulley using accessory toll provided. To revert to 33r.p.m.
repeat the proceedings using the smaller step on the pulley.
SETUP
ASSEMBLY AND INSTALLATION
8
ENGLISH PORTUGUÊSFRANÇAIS ESPAÑOL ITALIANO DEUTSCH NEDERLANDS SVENSKA РУССКИЙ

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NAD C 558 and is the answer not in the manual?

NAD C 558 Specifications

General IconGeneral
TypeDirect drive audio turntable
OperationManual
Product colorBlack
Nominal speeds33, 45 RPM
Output voltage4 mV
Turntable speeds33 RPM
Channel separation22 dB
Signal-to-Noise Ratio (SNR)68 dB
Frequency range20 - 22000 Hz
Package weight8000 g
AC adapter frequency47/63 Hz
AC adapter input voltage100 - 240 V
AC adapter output current0.8 A
AC adapter output voltage15 V
Power consumption (standby)0.3 W
Power consumption (typical)5 W
USB ports quantity-
Weight and Dimensions IconWeight and Dimensions
Depth125 mm
Width435 mm
Height340 mm
Weight5500 g
