8

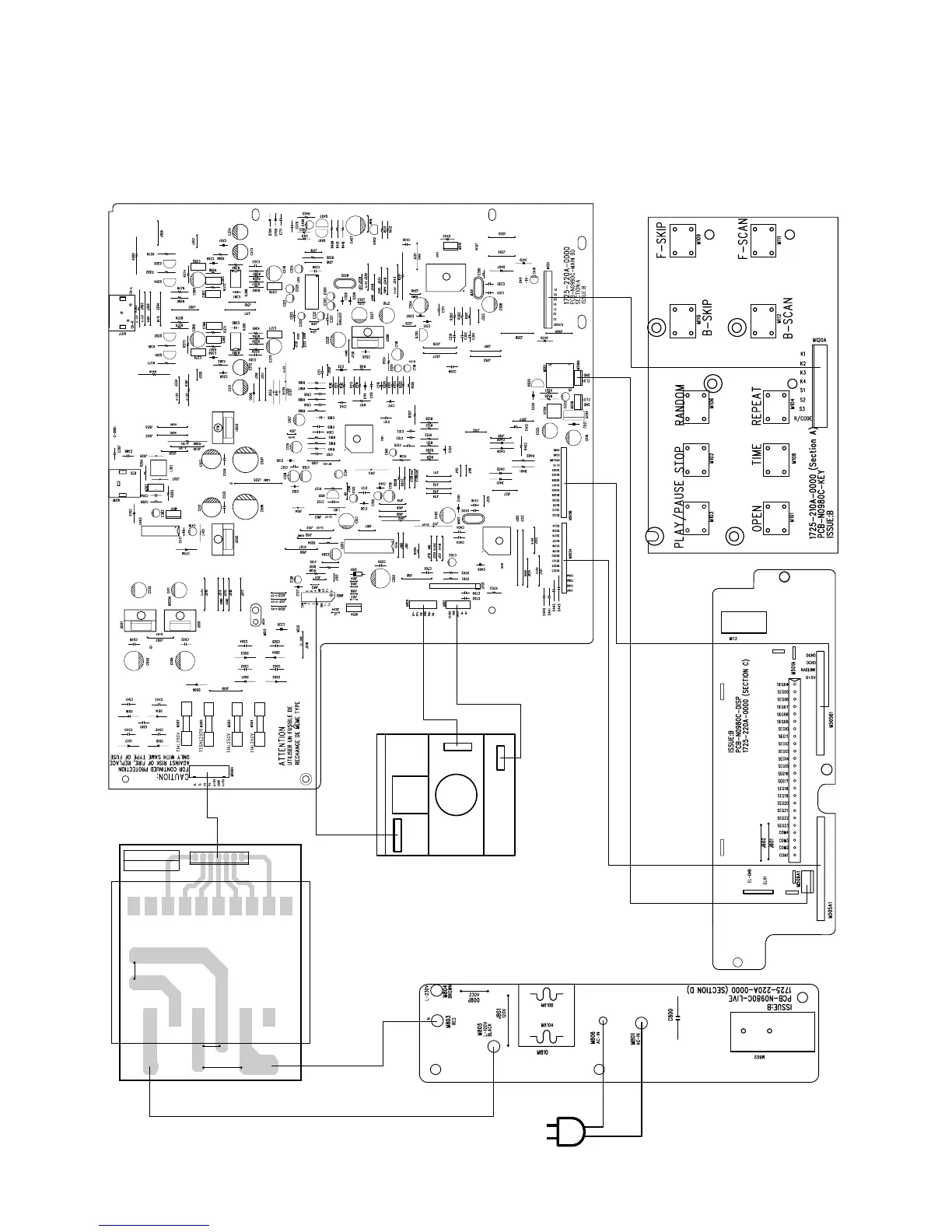

WIRING DIAGRAM
M102
(15 PINS)
M505B WHITE
M505A WHITE
M509A
BLACK
M120 BLACK
M500A
BLACK
M805
BROWN
NEUTRAL
LIVE
M803
BROWN
J402
M105 (6 PINS)
M101 (5 PINS)
MAIN BOARD
TRANSFORMER BOARD
DISPLAY
BOARD
LIVE BOARD
CD MECHANISM
KEYBOARD
115V:J401,J404
230V:J403
L401
J403
J406
J407
J402
J404
J401
1723-006A-0000
8V
0V
0V
8V
15V
0V
15V
ISSUE B
