Meters Menu
The meters screen gives access to three different settings concerning the fuel gauge metering
displays.

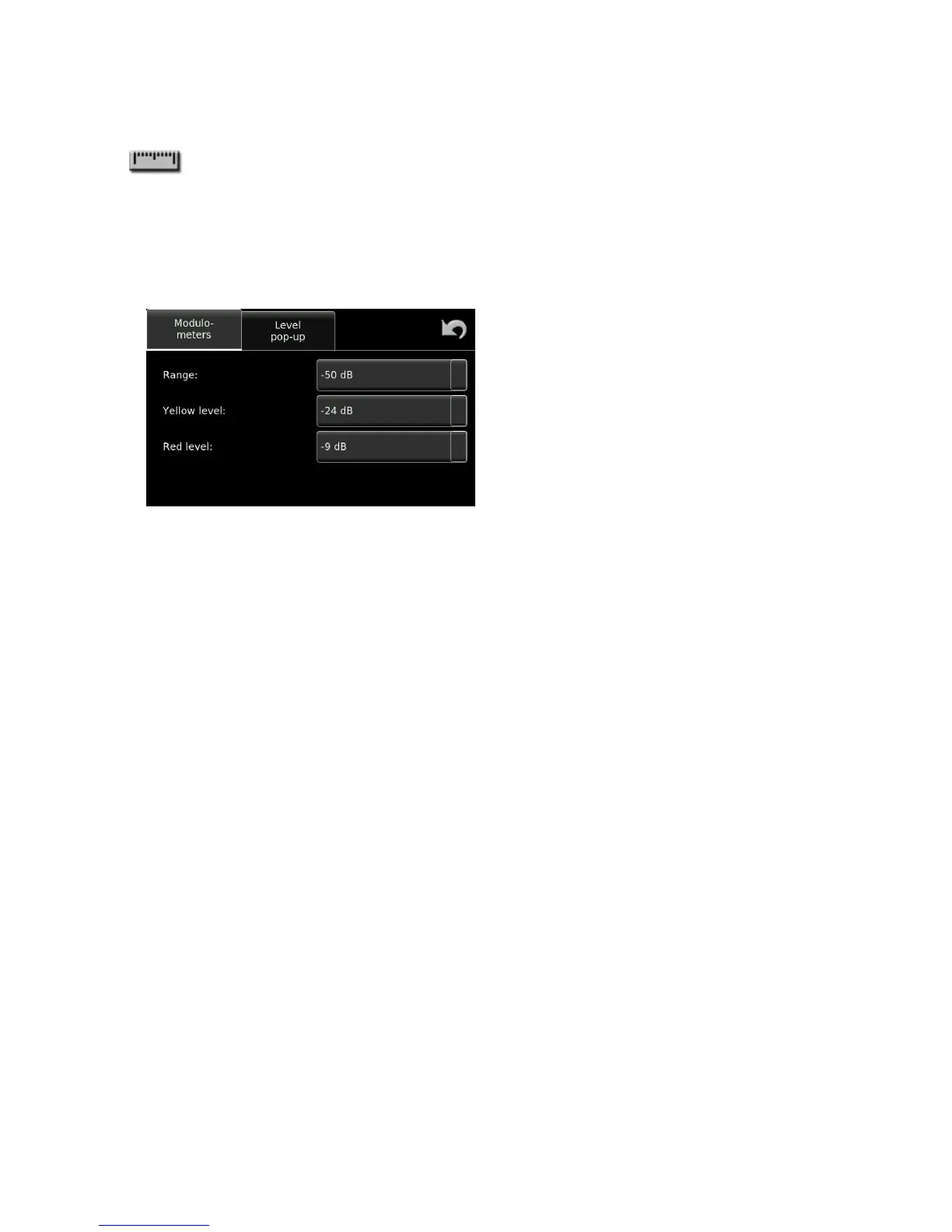

Modulometers
This menu allows two critical parameters of the bar-graph modulometers to be adjusted. The point at which
the horizontal bar-graph display changes color from green to yellow, and from yellow to red as well as the
overall range of the scales, can be set in this menu.
Range: The scale of the modulometers can be set to 30, 40 or 50 dB.
Yellow level: Programmable from -9dB to -24dB in 3 dB steps.
Red level: Programmable 0, -1, -2,-3 -6 or -9db.
