CHAPTER IV The EXTRAS
Overview
The Nagra Seven can be equipped with various optional extras, to adapt it to many different working
environments (Broadcast, film/TV, music etc). Some of the options are physical boards that are
installed inside the machine and others are software options that are activated through the
introduction of access codes supplied from the factory.
There are two hardware “slots” inside the machine. The forst can be either SMPTE/EBU Time Code
OR and I.S.D.N. codec. It is not possible tohave both of these options in the same unit.
The second slot can be fitted with the WiFi / 3G circuit.
The internal audio editor, MPEG compression and Voice over IP are all software options activated
with a password. These can be installed at any time and do not need to be installed when the
machine is ordered.
Internal options (For machine upgrades only)
7119187000 WiFi / 3G option including new side panel and 2 antennas
7119185000 TC Option (Non-ISDN machines only) including new side panel
7119186000 ISDN option with audio compression (Non-TC machines only) including new
side panel (With Wifi or not)
Software options
7019180010 MPEG 1 layer II recording option
7019180020 On-board audio editor option
7019180030 Voice Over IP (VOIP) option including TX/RX compression

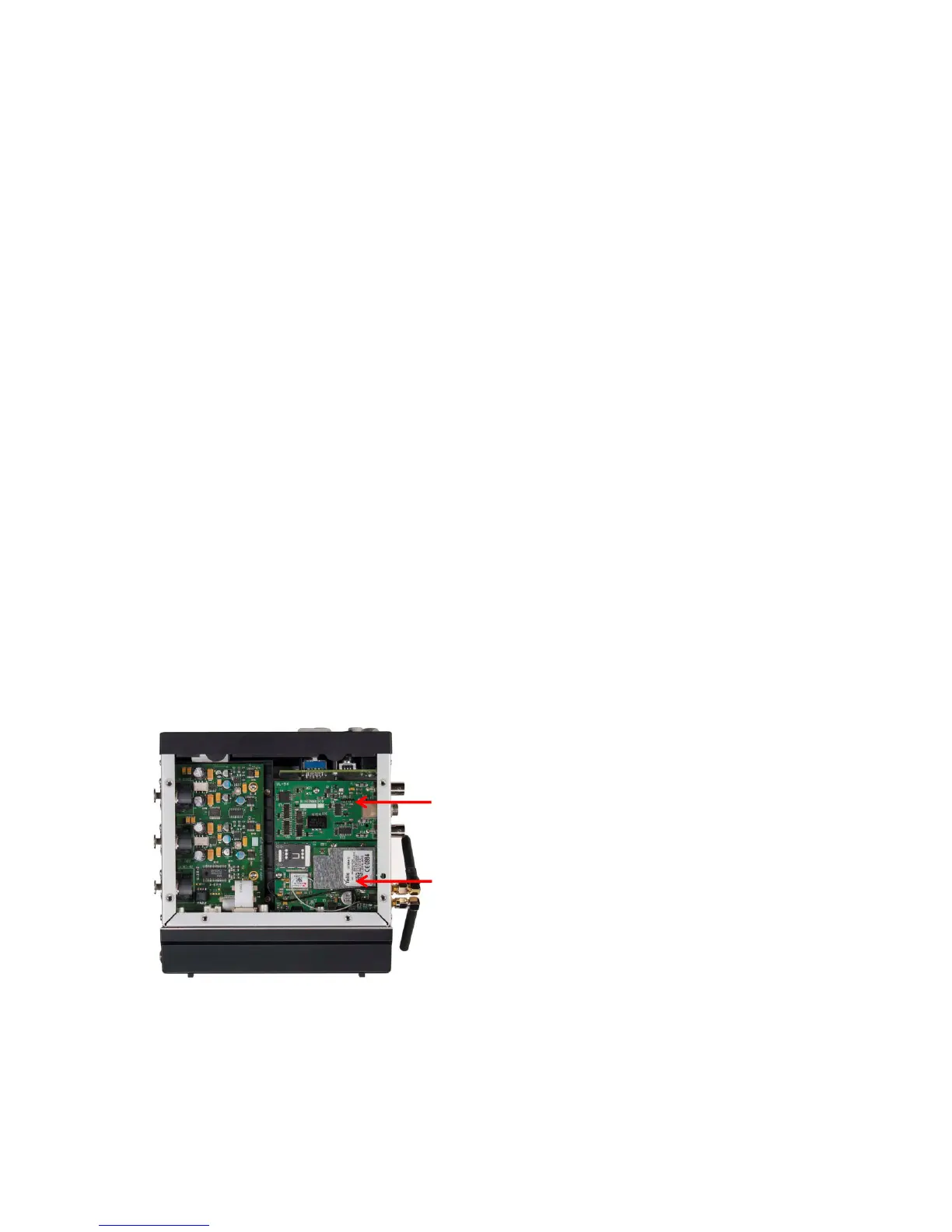

Slot # 1 (Time code / I.S.D:N.)
Slot # 2 (WIfi and 3G)
