NAP 500 Connection & Specifications
NA PS500 rear
-++-
Input Socket 1 Input Socket 2
to preamp power
supply. left, ch1
to preamp power
supply. right, ch2
left
speaker ch1
right
speaker ch2

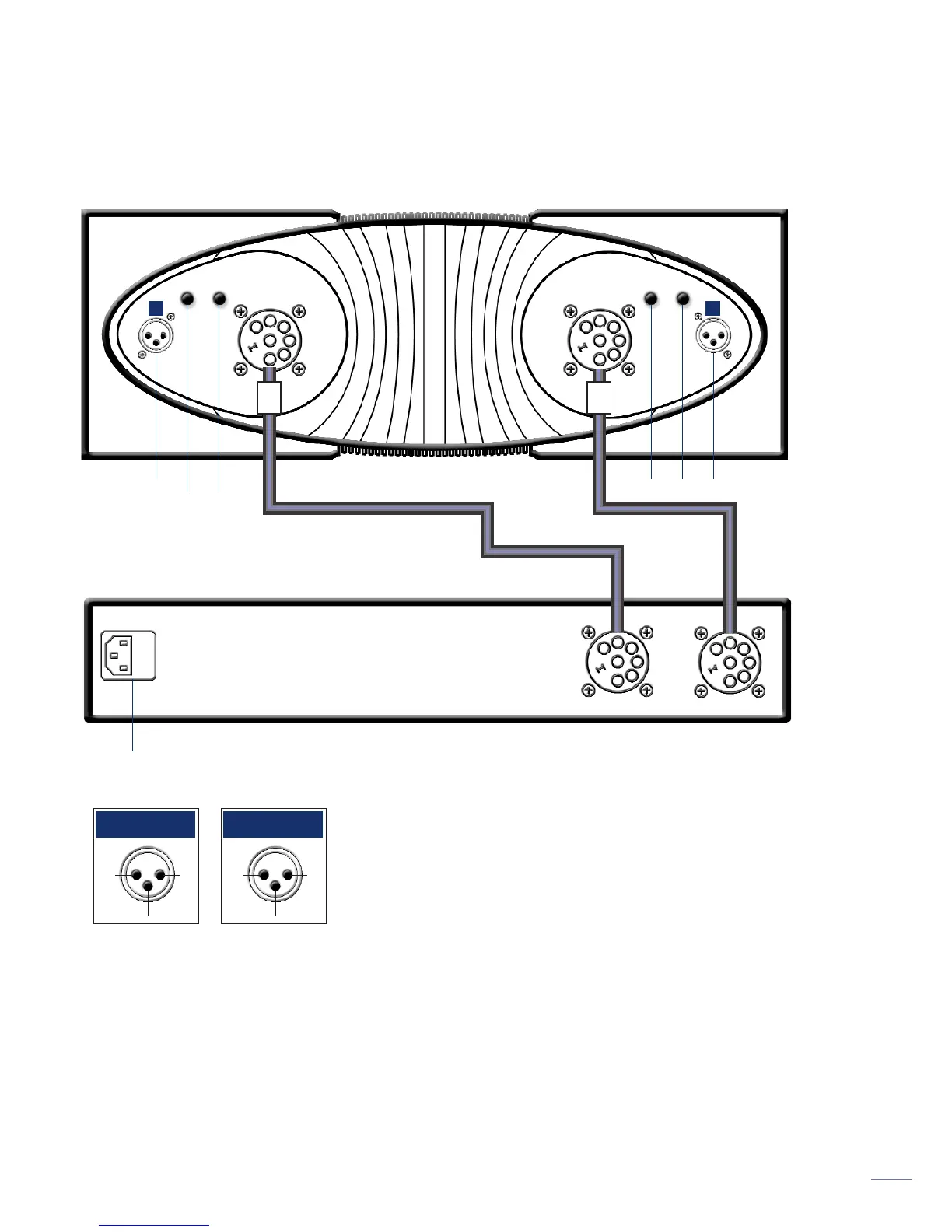

7.1 NAP 500 connection to NA PS500 Power Supply
ch1
-ve
-ve
nc
nc
ch 2
mains in
7.2 Specifications
NAP 500 & NA PS500
Power Output
Continuous, 8 ohms 140 Watts per channel
Transient 700VA
Quiescent Power Consumption 60VA
Voltage Gain +29dB
Input Impedance 18 kilohms
Frequency response -3dB @ 1.5Hz and 100kHz
Mains Supply: 100V. 115V. 230V - 50/60Hz
Case size (H x W x D)
NAP 500 160 x 432 x 375mm
NA PS500 87 x 432 x 314mm
Weight
NAP 500 25.0kg
NA PS500 15.4kg
